Repair

DISASSEMBLING

(2) Disassemble large Spiral bevel gear from Spindle and Separate Coupling from the gear as drawn in Fig. 7.

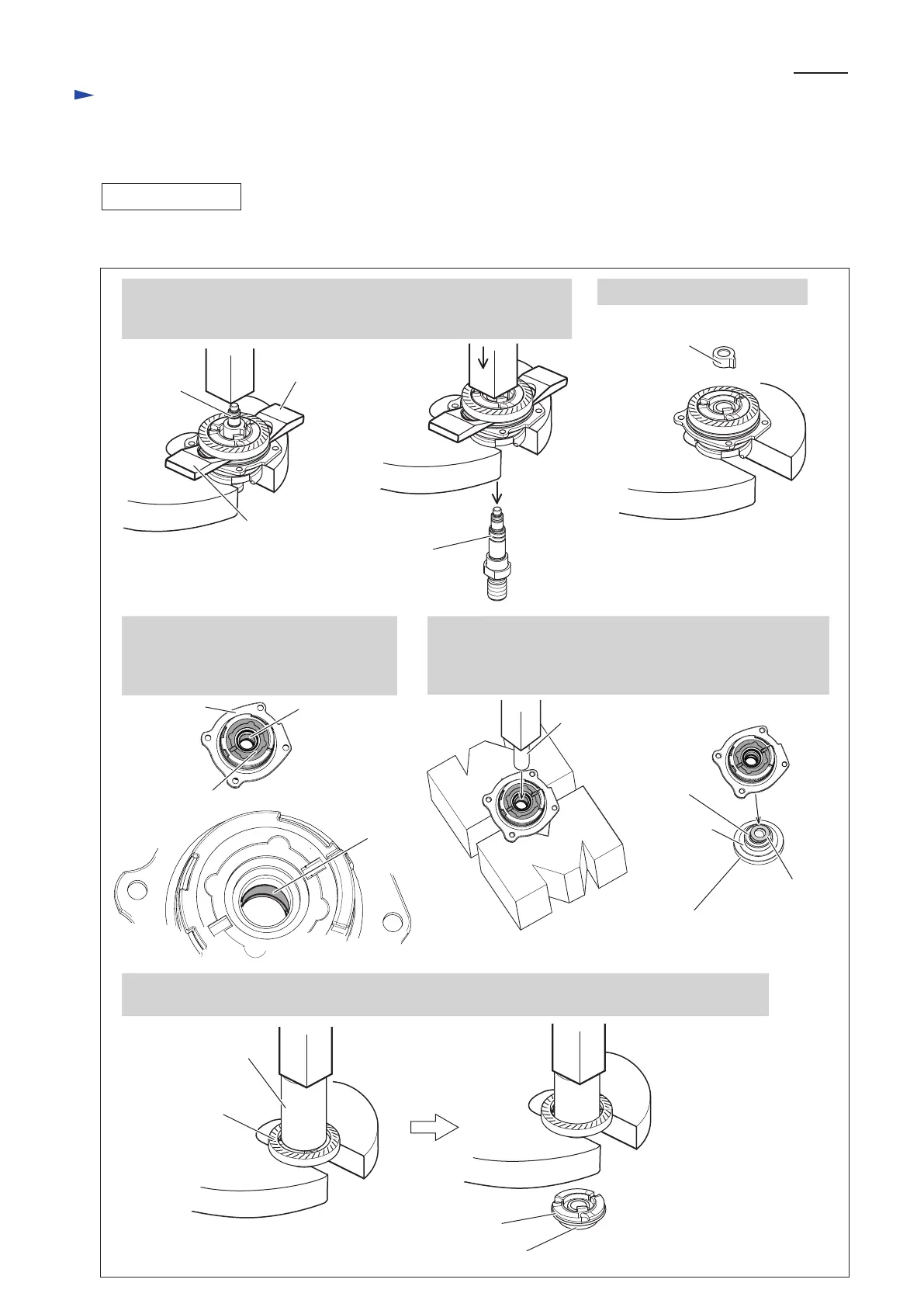

Fig. 7

1. Put Bearing box on the turn base of Arbor press. Then, inert 1R049

and 1R050 into the gap between Bearing box and large Spiral bevel

gear. And then, remove Spindle by pressing it with Arbor press.

3. Tap Bearing box to shift Flat washer 12

so that the surface reveals as large as

possible.

Then, put Bearing box on 1R258.

1R049

Spindle

1R050

Spindle

Joint sleeve

Bearing retainer

Bearing box

Flat washer 12

4. While applying 1R286 to Flat washer 12 through Bearing

retainer, press it carefully to remove large Spiral bevel gear

section (including Coupling and Ball bearing 6903ZZ)

from Bearing box.

1R286

large

Spiral bevel gear

Ball bearing

6903ZZ

Coupling

Flat washer 12

1R232

Coupling

Ball bearing 6903ZZ

large Spiral bevel gear

5. While applying 1R232 to Coupling, press it to remove Coupling together with Ball bearing 6903ZZ

from large Spiral bevel gear.

[3] DISASSEMBLY/ASSEMBLY

[3] -3. Spiral bevel gear [large one], Ball bearings 696ZZ/ 6201DDW (cont.)

2. Joint sleeve can be removed.
