P 7/ 12
Repair
DISASSEMBLING
ASSEMBLING

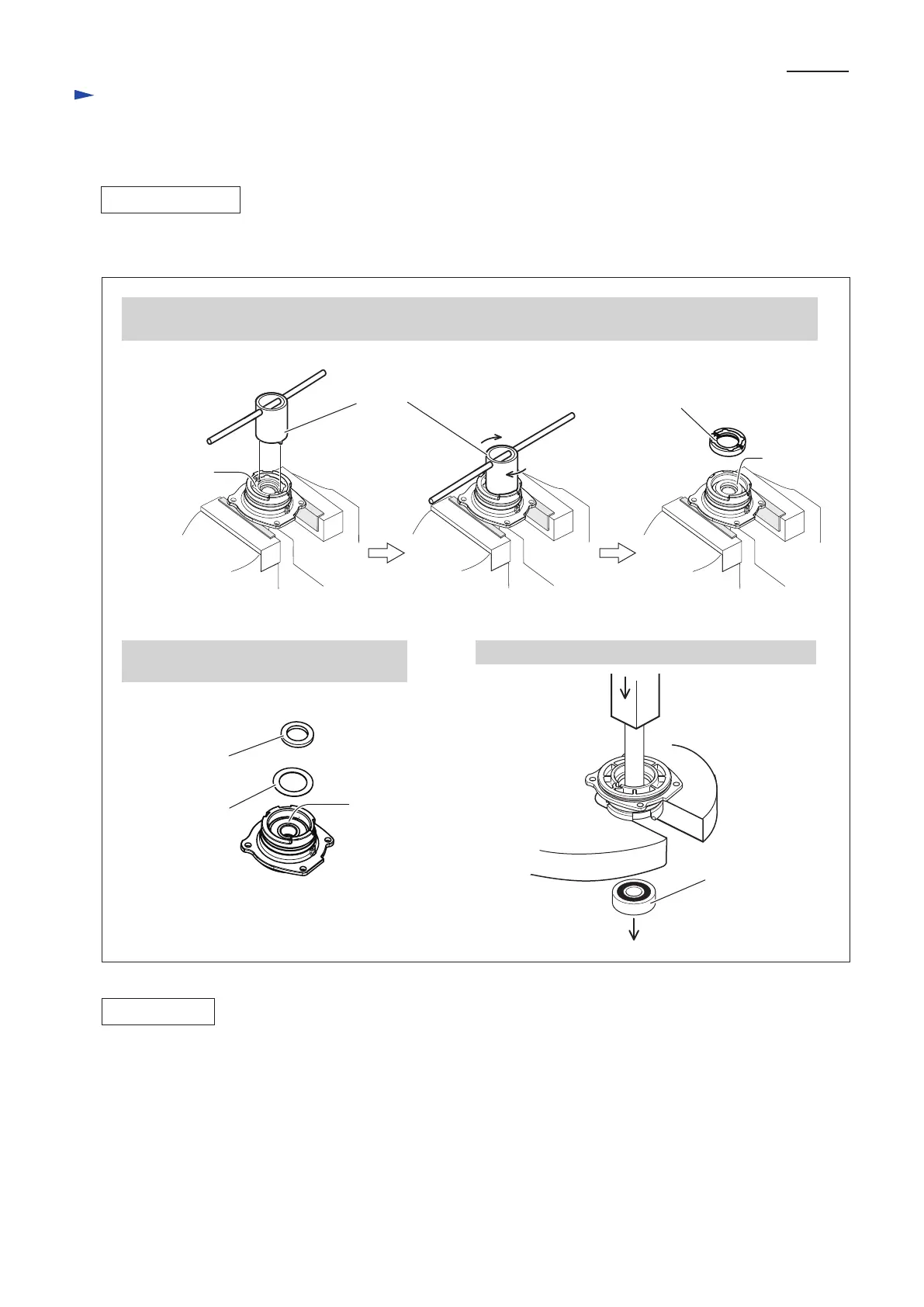

(3) Disassemble Ball bearing 6201DDW from Bearing box as drawn in Fig. 8.
Fig. 8
1. Clamp Bearing box with Vise. Then, while fitting the claw of 1R340 to the notch of Bearing retainer 20-33,
turn 1R340 clockwise to remove the retainer.
2. Take out Felt ring 17 and Flat washer 21
from Bearing box.
3. Remove Ball bearing 6201DDW with Arbor press.
1R340
Bearing
retainer 20-33
Bearing
retainer 20-33
Felt ring 17
Felt ring 17
Flat washer 21
Assemble by reversing the disassembly procedure. (Refer to Figs. 8, 7 and 6)
Note: • Do not re-use the removed Joint sleeve. New Joint sleeve has to be mounted.
(Refer to the upper right illustration in Fig. 7)
• Apply the following thread locker to the thread of M4x16 Hex socket head bolts, if the unscrewed bolts are used.
* ThreeBond 1342
* Loctite 242
(Refer to the upper left illustration in Fig. 6)
Ball bearing
6201DDW
Ball bearing
6201DDW
[3] DISASSEMBLY/ASSEMBLY
[3] -3. Spiral bevel gear [large one], Ball bearings 696ZZ/ 6201DDW (cont.)
To Next Page
