Wiring

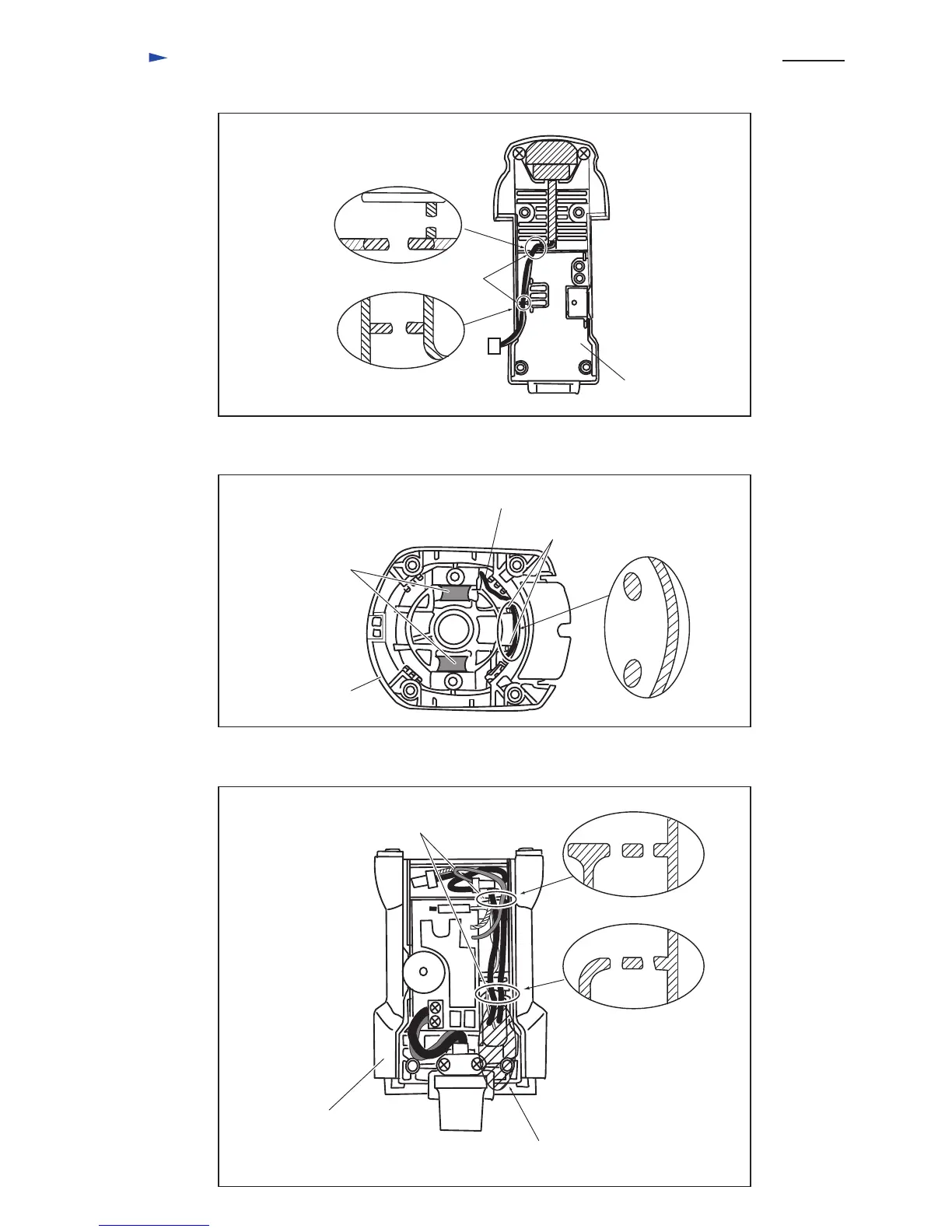

Put the lead wires to three lead holders of Handle as Fig. 31.
Do not slack the lead wires at this place.
Put the lead wires in each lead holder of Motor housing as Fig. 33.
Handle
Motor housing
Motor housing
Brush holders
Pass the lead wire (red) for connecting with Brush holder between bosses and wall of Motor housing as Fig. 32.
Lead holders of Motor housing
P 12 /14
Bosses of Motor housing
Lead wire (red) for connecting with Brush holder
Lead holders
Fig. 33
Fig. 32
Fig. 31
