Makita HM0860C Technical Information

P 6 /14
<7> Disassembling/reassembling Tool Holder
<7>-1. Disassembling Tool Holder
<7>-2. Reassembling Tool Holder
(1) Remove Retaining ring R-42 from Barrel using Retaining R pliers RT-2N (1R005).
(2) Take Flat washer 29 and Urethane ring 28 out of Barrel.
(3) Take Tool holder out of Barrel.
(4) Remove Impact bolt from Tool holder by striking Impact bolt with a proper round bar as illustrated in Fig. 11.
(1) Put Impact bolt into Tool holder.
Be sure to place Impact bolt as illustrated in Fig. 12,
because it is not reversible when assembled to
Tool holder.
(2) Set Flat washer 29, Urethane ring 28 and Retaining
ring R-42 in place by doing the reverse of the
disassembling procedure described in <7>-1.
Urethane ring 28 and Flat washer 29 are reversible
when assembled to Barrel.

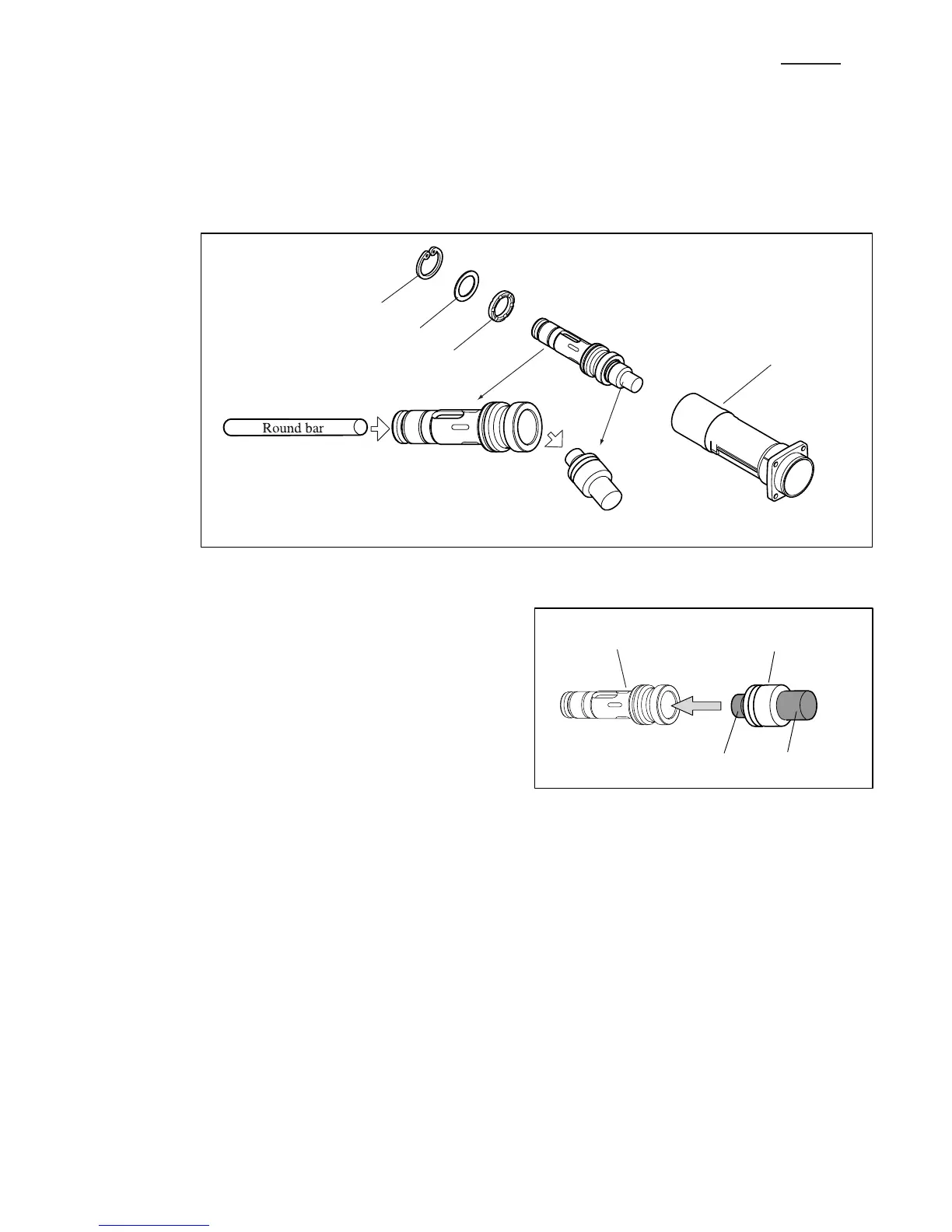

Fig. 11
Fig. 12
Flat washer 29
Retaining ring R-42
Urethane ring 28
Impact bolt
Barrel
Tool holder
Impact bolt
Tool holder
shorter end longer end
