Makita HM1213C Technical Information

P 14/ 17
Repair
[3] ASSEMBLY/ DISASSEMBLY

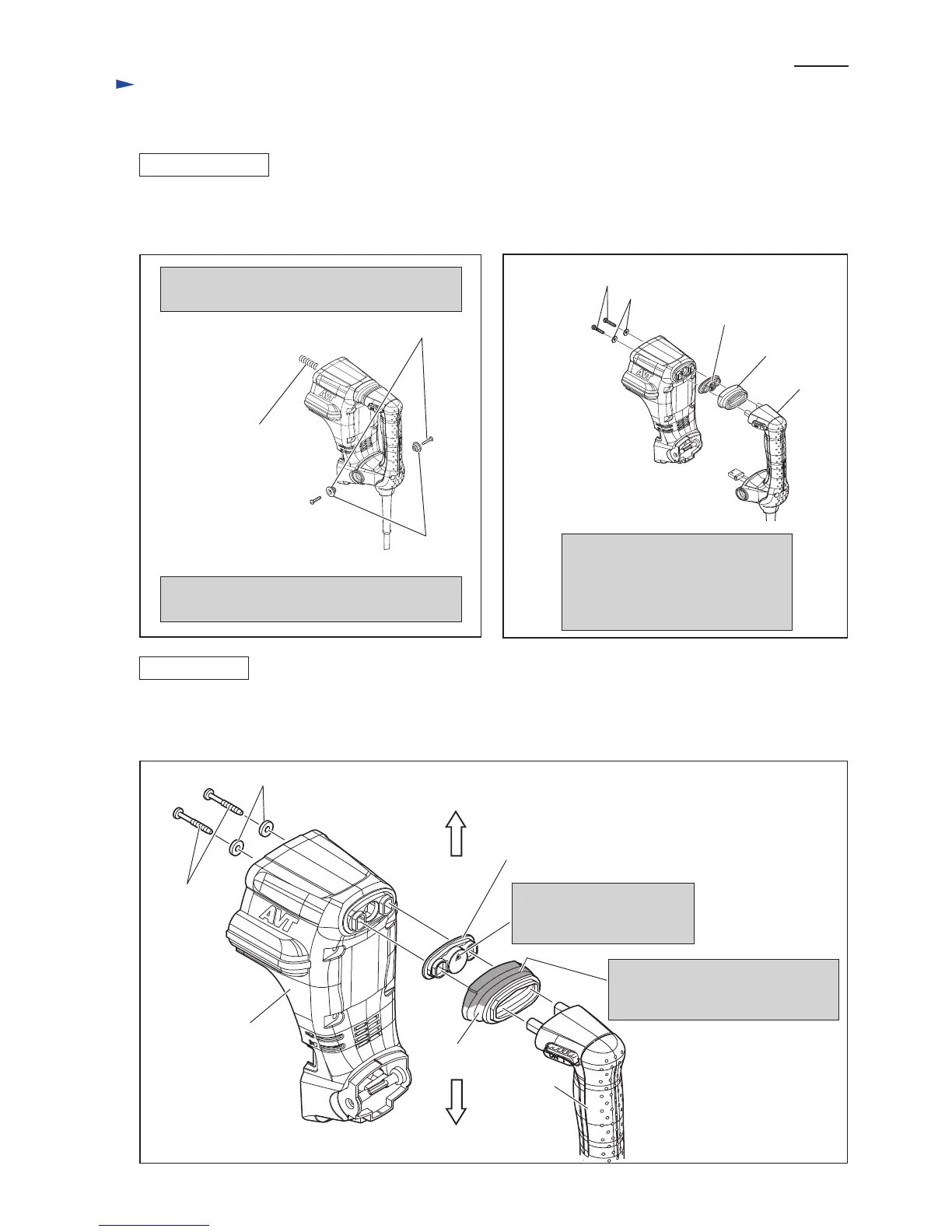

[3]-7. Vibration Absorbing Handle (only for HM1213C)
DISASSEMBLING
ASSEMBLING
Shoulder
sleeve 6
5x25 Tapping screw (2pcs.)
Compression Spring 11
5x30 Tapping screw
(2pcs.)
Flat washer 5
Handle
Dust cover support
Dust cover
Remove two 5x25 Tapping screws to disassemble
Handle in the next step.
Remove two 5x30 Tapping screws.
The several parts are separated from
Handle base as illustrated above.
Handle cover can be removed
As the left Illustration in Fig. 26.
(1) Disassemble Handle section. (the left illustration in Fig. 2)
(2) Vibration absorbing handle can be disassembled as illustrated in Figs. 31 and 32.
Fig. 31 Fig. 32
Remove Compression spring 11 after separating
Handle section from the machine.
Dust cover support
Handle
Handle base
Upper side
Lower side
5x30 Tapping
screw (2pcs.)
Flat washer 5
Assemble the Vibration absorbing handle, paying attention to the directions of Dust cover and Dust cover support. (Fig. 33)
Fig. 33
Facing Triangle mark to the
upper side, insert Dust cover
support into Dust cover.
Facing the bow portion of Dust cover
to the upper side of the machine,
Assemble Dust cover to Handle.
Dust cover

Makita HM1213C Specifications

General

Input power	1500 W
Impact energy (max)	18.6 J
Vibration level (chiseling)	7 m/s²
Toolholder	18 mm
Impact rate	1900 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	149 mm
Width	576 mm
Height	265 mm
Weight	10800 g
