Makita HM1213C Technical Information

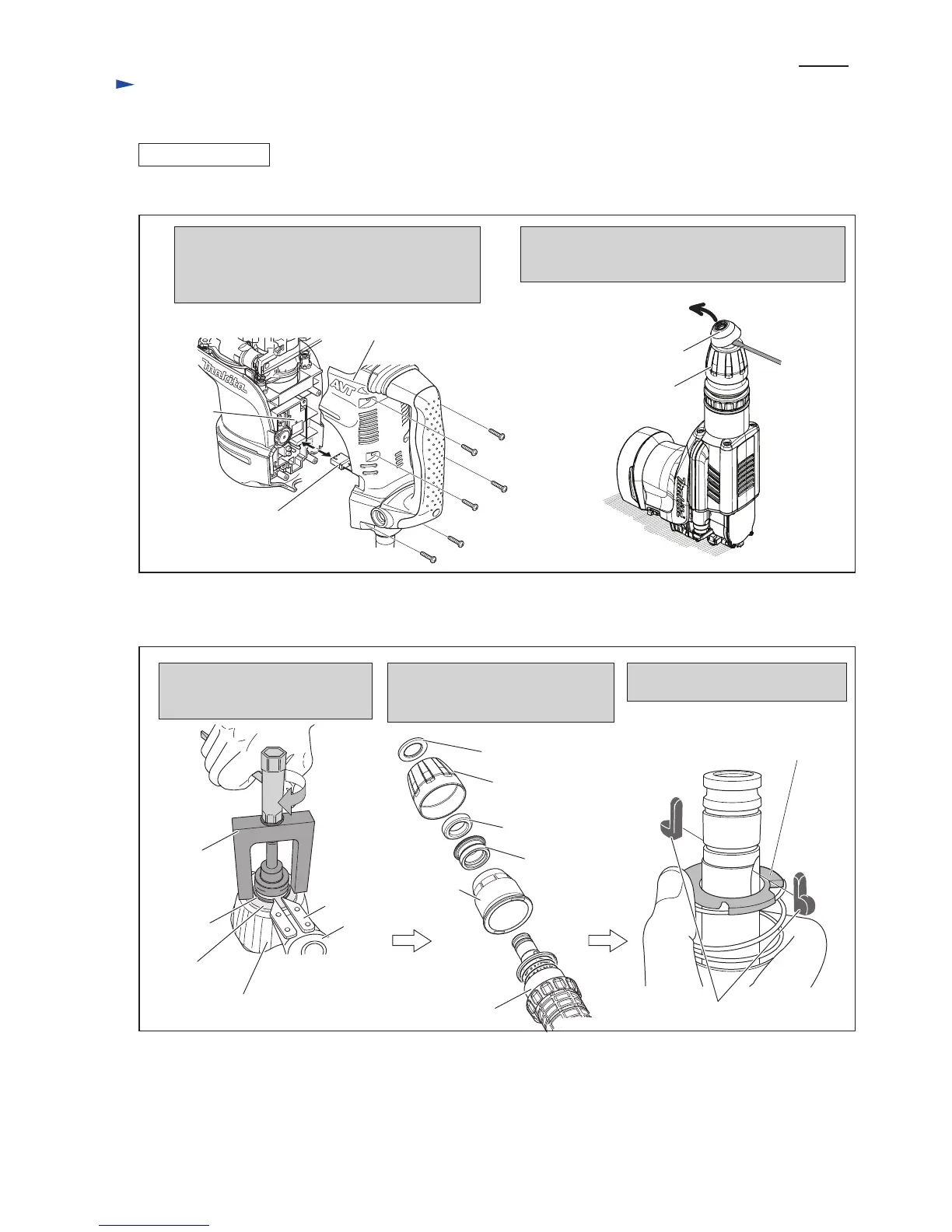

Pressing down Flat washer 30 with
1R363, remove Ring spring 26
using 1R003 with 1R212.
While pressing down Spring guide,
remove two Tool retainers.
Remove Flat washer 30, Chuck cover
Rubber ring 30, Chuck ring and
Release cover.
1R363
1R003
Flat washer 30
Chuck cover
Rubber ring 30
Chuck ring
Chuck cover
Ring
spring 26
Flat washer 30
1R212
Release
cover
Fig. 5
Spring guide
Tool retainer (2pcs.)
(2) After removing ring spring 26, disassemble the components of Chuck mechanism.
Tool retainers can be removed from Tool holders as illustrated in Fig. 5.
(1) Remove Handle section as illustrated in Fig. 4.
Remove six 5x25 Tapping screws.
Disconnect Connector of Switch from Controller.
Separate Handle section (Handle base, Switch,
Power supply cord, Handle, Handle cover.)
For easy and safety disassembling, stand the machine
on Work bench as illustrated below.
And remove Tool holder cap with slotted screwdriver.
[3] ASSEMBLY/ DISASSEMBLY
[3]-1. Chuck
DISASSEMBLING
Controller
Connector
5x25 Tapping
screw (6pcs.)
Handle section
Fig. 4
Tool holder cap
Chuck cover
Change
ring cover
P 4/ 17
Repair

Makita HM1213C Specifications

General

Input power	1500 W
Impact energy (max)	18.6 J
Vibration level (chiseling)	7 m/s²
Toolholder	18 mm
Impact rate	1900 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	149 mm
Width	576 mm
Height	265 mm
Weight	10800 g
