Makita HM1307C Technical Information

The following parts come out
from Tool holder.
P 7/ 19
Repair

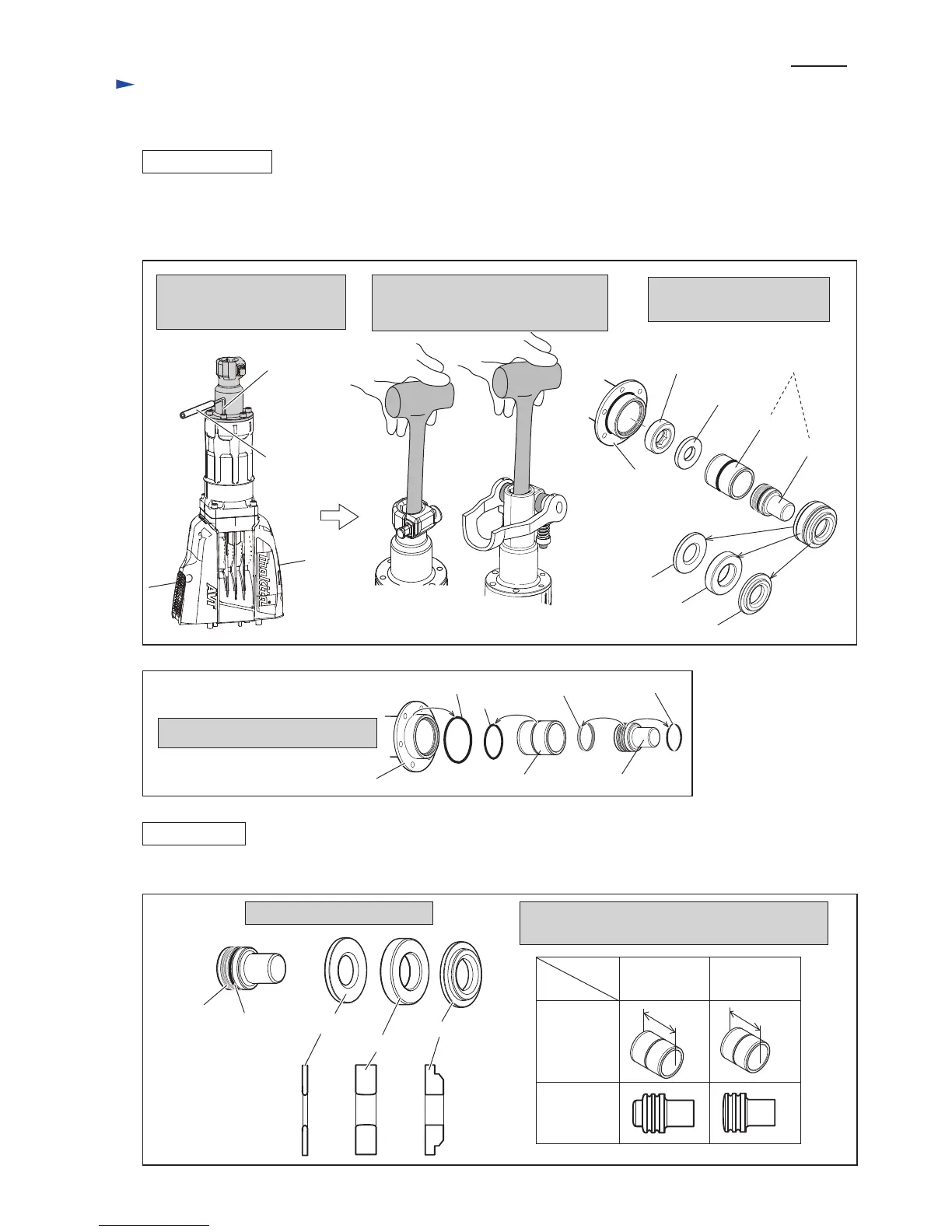

[3] DISASSEMBLY/ASSEMBLY
[3]-3. Inside of Tool holder section, Impact bolt
DISASSEMBLING
ASSEMBLING
Fig. 10
Fig. 11
Fig. 12
(1) Disassemble Handle section as illustrated in Fig. 4 and stand the machine as illustrated in Fig.5.
(2) Remove six M8x35 Hex socket head bolts with Hex wrench 6 and disassemble Tool holder section as illustrated in
Figs. 10 and 11.
Tool holder
Urethane ring
Flat washer 24
(Refer to Fig. 12.)
Washer 30
O rings and X ring can be replaced.
Rubber ring 36
Shoulder ring 32
Sleeve 43
*Sleeve 43
Impact bolt
*Impact Bolt
Sleeve 43 and Impact bolt are not interchangeable
between CB models and C models.
HM1307CB,
HM1317CB
HM1307CB,
HM1317CB
HM1307C,
HM1317C
HM1307C,
HM1317C
63mm 55mm
Hex Wrench 6
Before separating Tool holder section,
strike machine with the grip end of
Plastic hammer as illustrated below.
Pipe
(as Extension bar)
O ring 67
Tool holder
Take the disassembling step in reverse. Pay attention to the directions and difference shown in Fig. 12.
O ring 45
O ring 36
X ring 36
*Sleeve 43
*Impact Bolt
Remove six M8x35 Hex socket
head bolts with Hex wrench 6
as illustrated below.
Washer 30
Rubber ring 36
Shoulder ring 32
X ring 36
O ring 36
Pay attention to the directions
