Makita HM1801

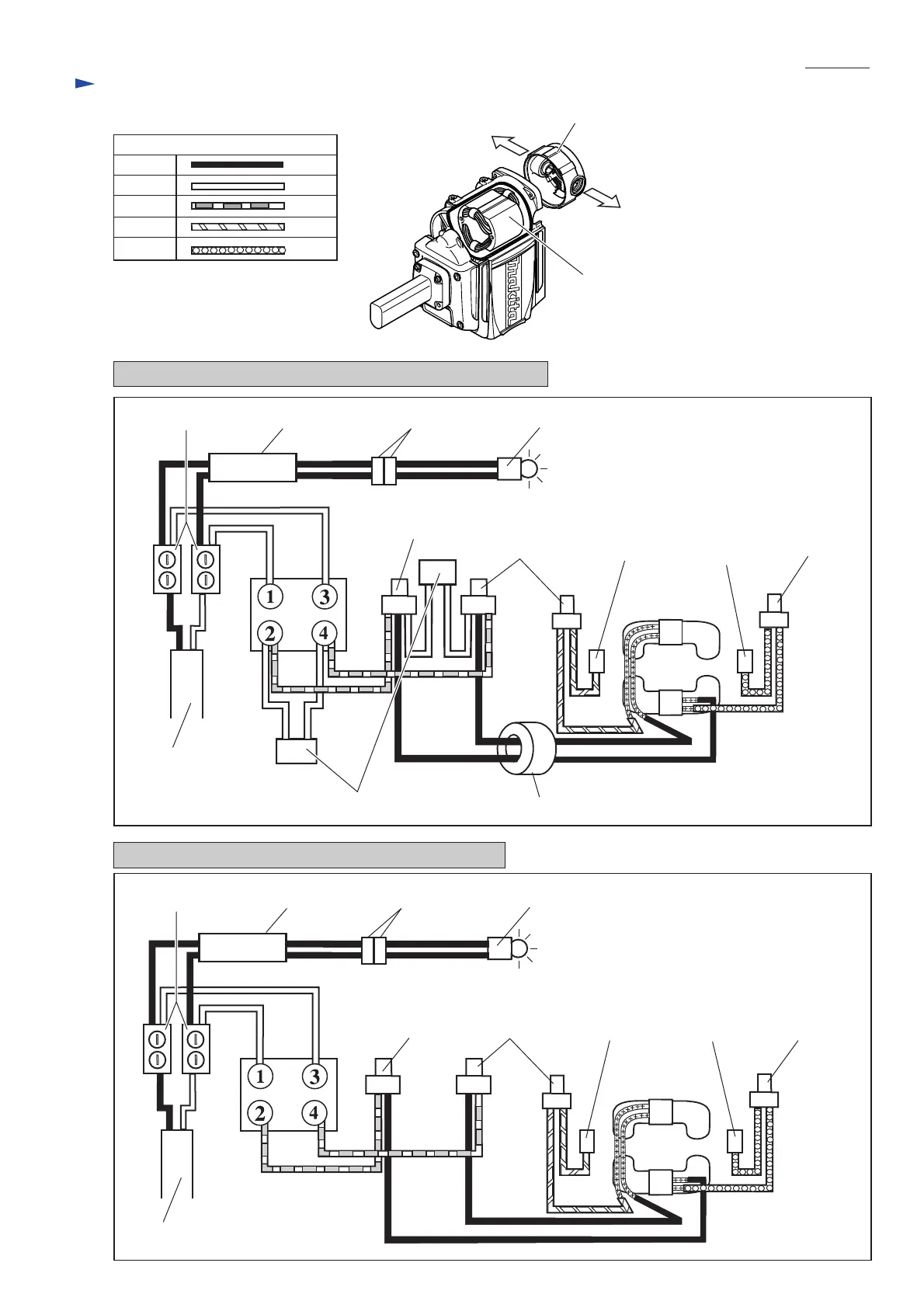

Circuit diagram
P 13/ 18
Color index of lead wires' sheath
Black
White
Red
Orange
Purple
Motor housing B
Field
Side B
Side A
Countries That Require Noise Suppression Circuitry
USA, Canada, Panama, Mexico, Cyprus, Korea
Lead unit
Terminal block
Insulated
connector
Insulated
connector
Pilot lampConnector
Insulated
connector
Switch
Field
Brush holder
on side B
Brush holder
on side A
Power supply cord
Lead unitTerminal block
Noise suppressor Line filter
Insulated
connector
Insulated
connector
Pilot lampConnector
Insulated
connector
Switch
Field
Brush holder
on side B
Brush holder
on side A
Power supply cord
