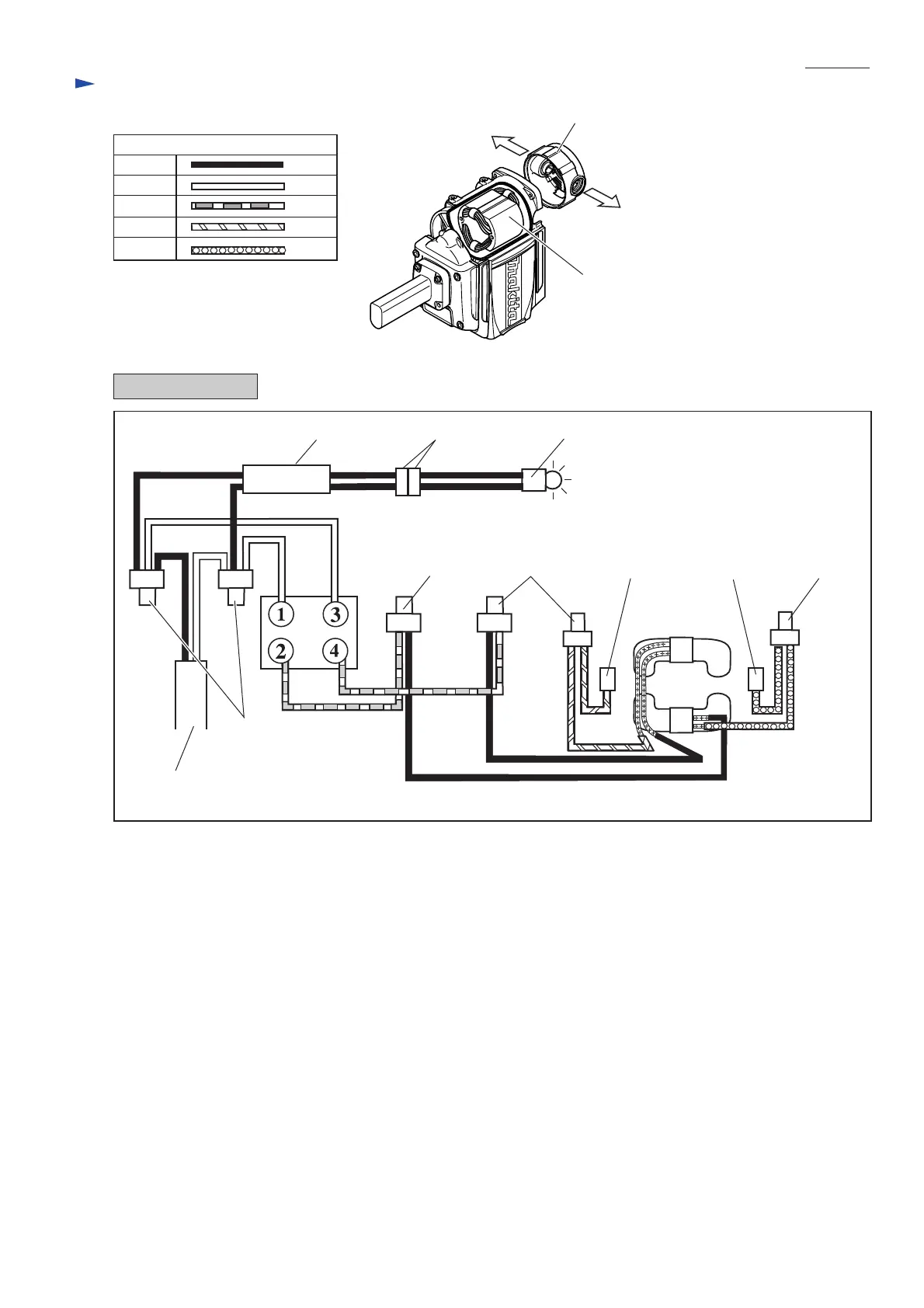

Circuit diagram
P 14/ 18
Color index of lead wires' sheath
Black
White
Red
Orange
Purple
Motor housing B
Field
Side B
Side A
Other Countries
Insulated
connector
Insulated
connector
Insulated
connector
Switch
Field
Brush holder
on side B
Brush holder
on side A
Power supply cord
Lead unit Pilot lampConnector
Insulated
connector
