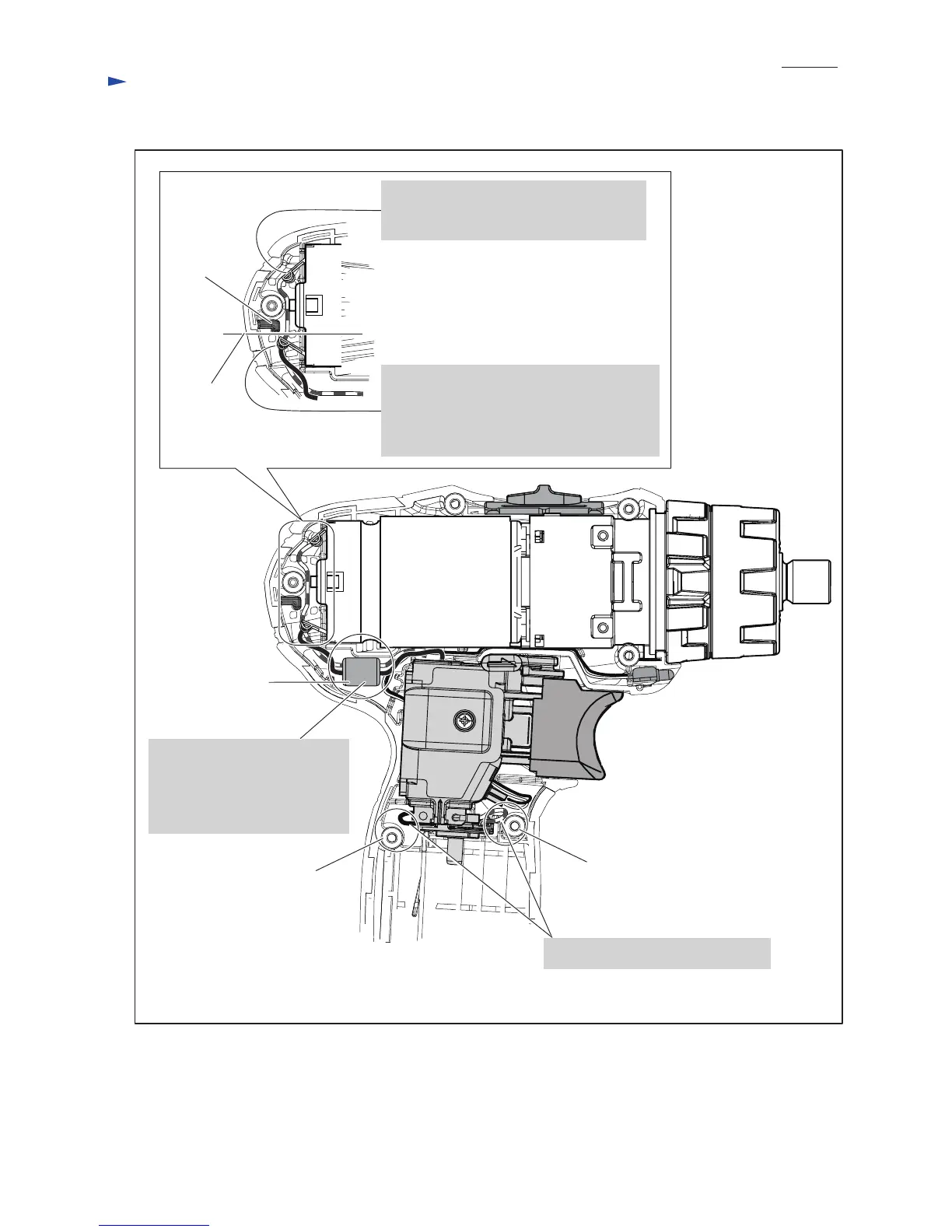

Route lead wires except for LED in Housing L. ( Fig. D-4)
Fig. D-4
Rib
Line of rib
Line filter
Pass lead wires (black, red) for
DC motor and Switch through
Line filter.
And put Line filter in place
drawn below.
Do not put Lead wires on the bosses.
Boss
Boss
DC motor
Gear
assembly
Bend Receptacle for lead wire (red) and
connect it to (+) terminal of DC motor
toward Motor shaft.
Bend Receptacle with lead wire (black) and
connect it to (-) terminal of DC motor toward
Motor shaft.
Do not put the receptacle over the line
designated in the drawing.
Wiring diagram
P 11/ 11
