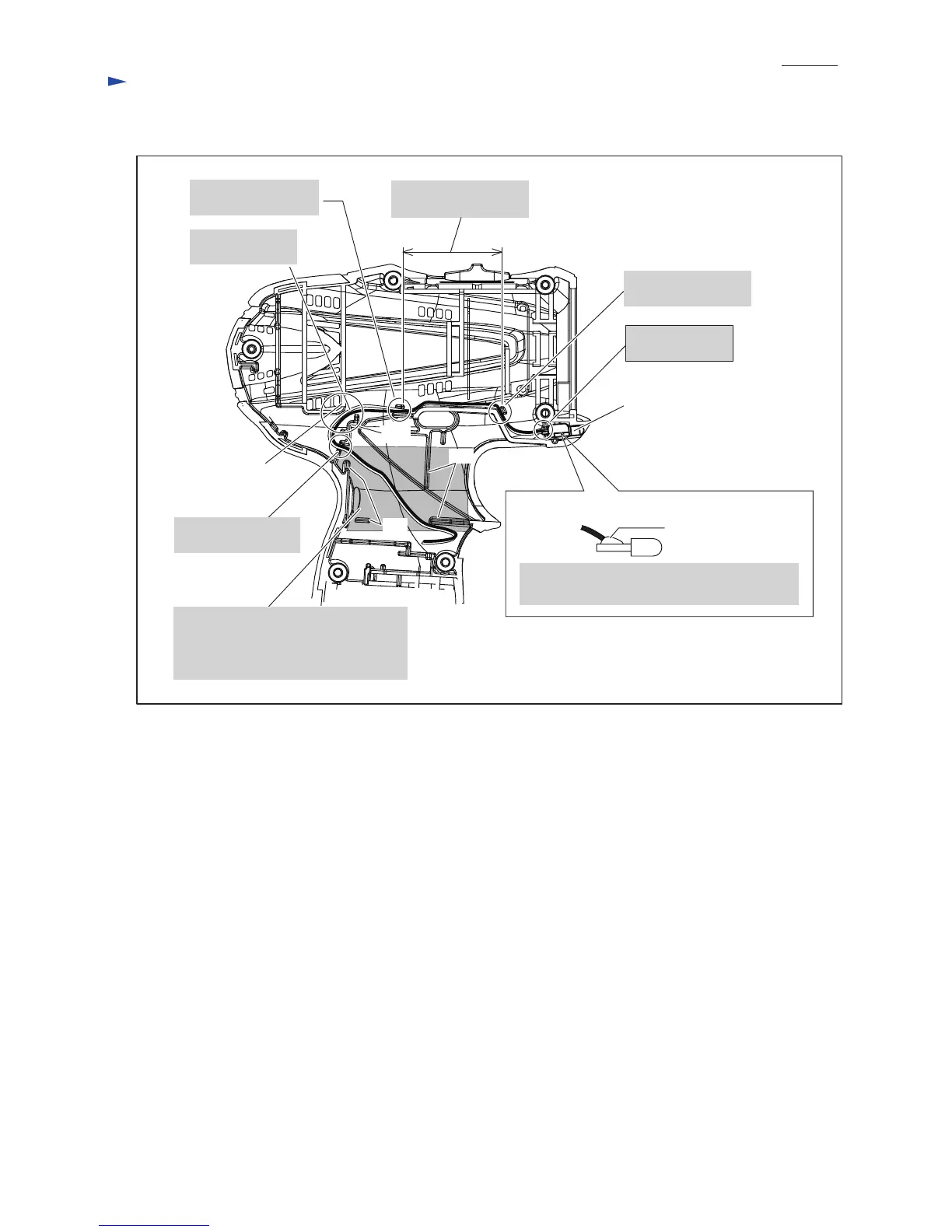

Route LED lead wires in Housing set (L) as drawn in Fig. D-3.
Fig. D-3
Put LED light circuit, facing adhevive-coated
side to Change ring side.
adhesive
LED light circuit
Pass Lead wires
between Ribs.
Pass Lead wires
between Ribs.
Fix Lead wires with
lead wire holder.
Lead wires have to be
tightened in this area.
LED light circuit
Rib
Rib
Rib
Rib
Do not put Lead wires on any Ribs
in this area designated with gray color.
Otherwise, Lead wires interfere with
setting Switch.
Fix Lead wires with
lead wire holder.
Fix Lead wires with
lead wire holder.
Wiring diagram
P 10/ 11
