Wiring to Terminal Wiring to DC motor
Housing L side
Housing set (L) side
DC motor side
Housing L
Flag connectors have to be connected to
DC motor’s terminal so that their Lead wires
come to Housing L side.
Flag connectors have to be connected to
Switch’s terminals so that their Lead wires
face to DC motor side .
DC motor
Flag connector
Flag connector

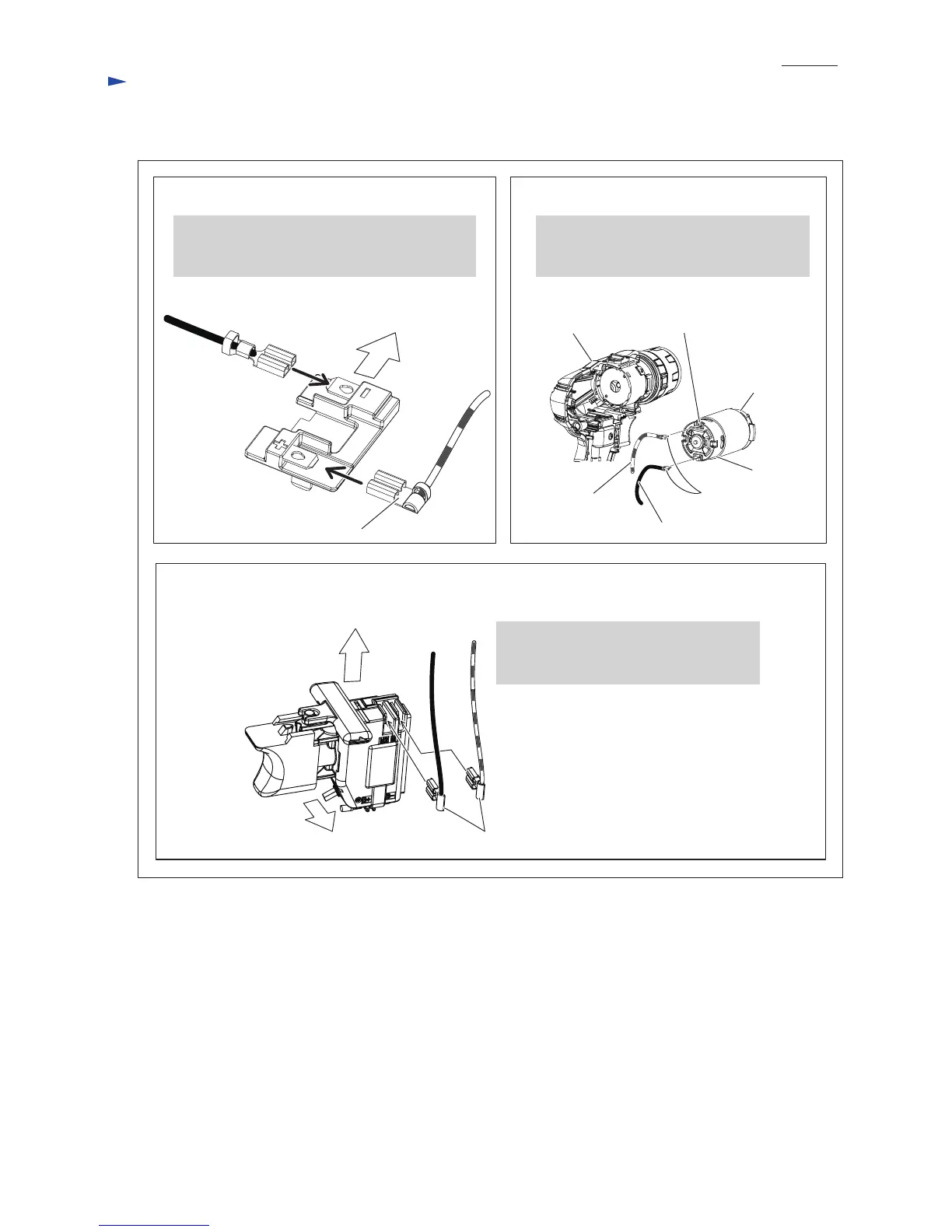

Flag connectors have to be connected to the electrical parts as drawn in Fig. D-2.
Flag connector
Wiring to Switch
Red mark
Non-projection
side of
Motor bracket
Lead wire (red)
Lead wire (black)
Flag connector with Lead wire (red) has to be
connected to Terminal so that its Lead wire faces
to Housing L side.
Fig. D-2
Wiring diagram
P 9/ 11
