[3] DISASSEMBLY/ASSEMBLY
[3] -2. Gear assembly, Motor section (cont.)
ASSEMBLING

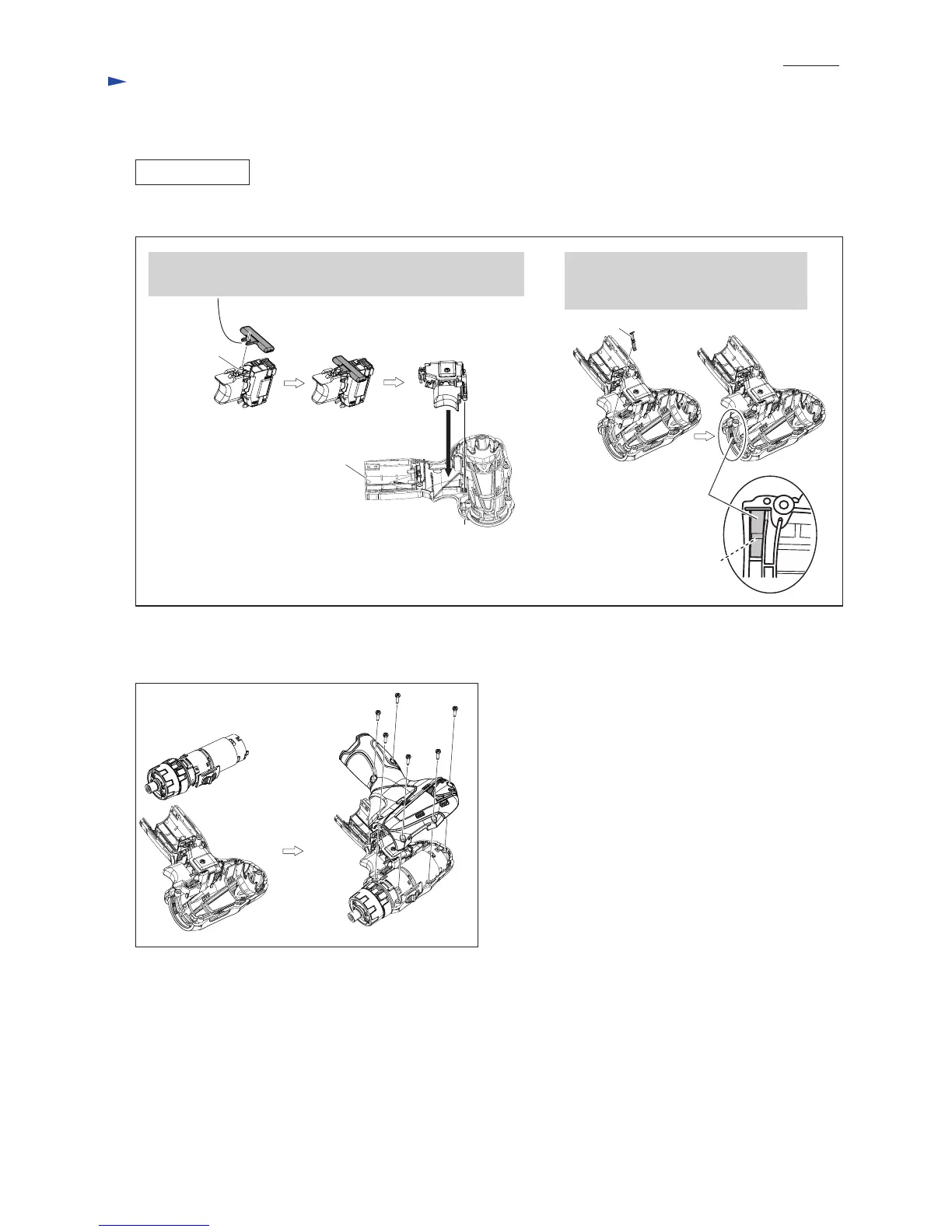

(3) Before setting Gear assembly and DC motor, take the following step in Fig. 12.
(4) Setting Gear assembly and DC motor to Housing L, fasten Housing R with six 3x16 Tapping screws. (Fig. 13)
Fig. 12
Fig. 13
1. Mount F/R change lever to Switch, by fitting this prong to
the projection on Switch. And set Switch to Housing L.
Projection
2. Set Leaf spring in place.
Note: Do not face the center edge of
Leaf spring to Housing L.
Housing L
Leaf spring
(5) Set Drill chuck in place. (Figs. 5, 6, 7)
Repair
P 7/ 11
Leaf spring
Center edge
To Next Page
