Makita HP332D User Manual

6 ENGLISH

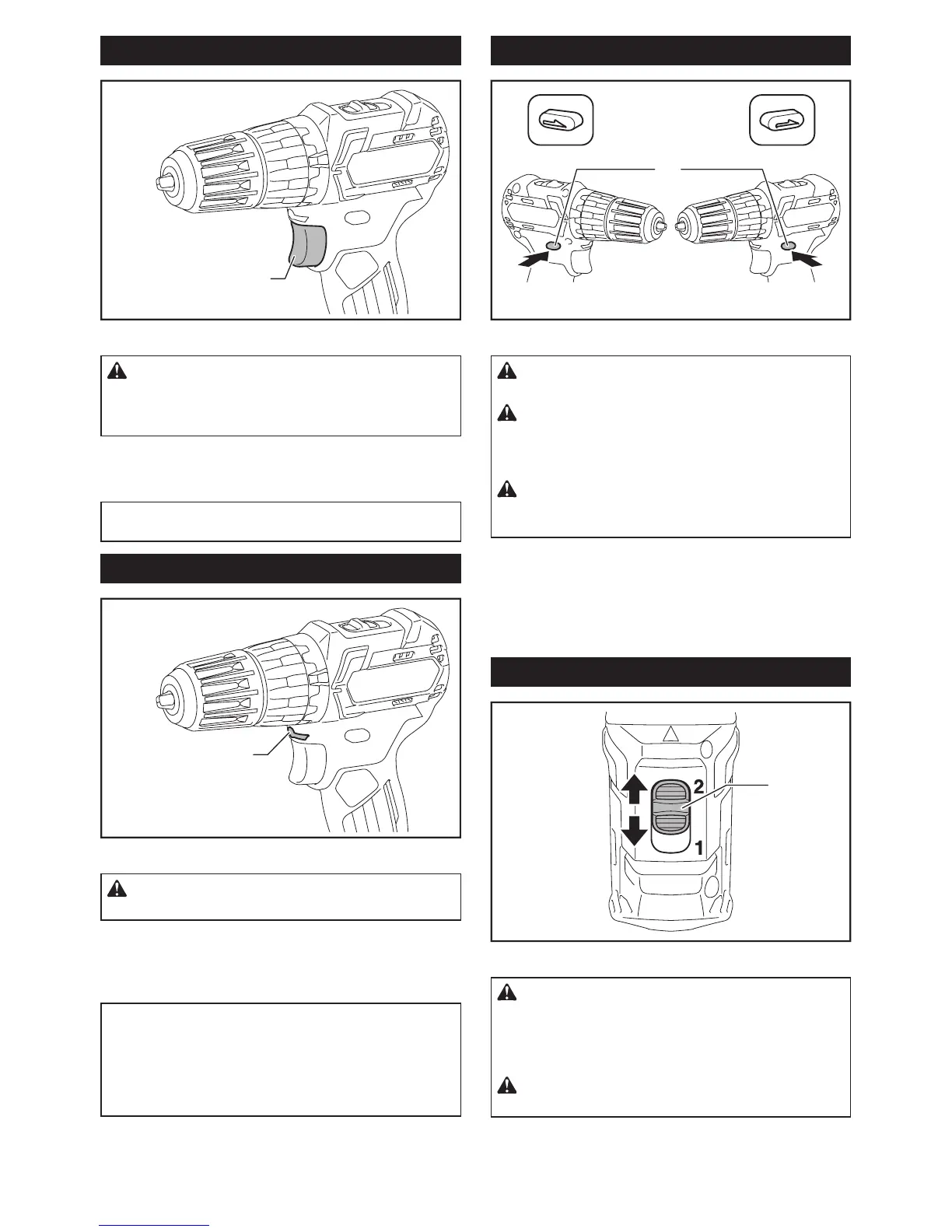

Switch action
1
►1. Switch trigger
CAUTION: Before inserting the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
Tostartthetool,simplypulltheswitchtrigger.Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
NOTE:Thetoolautomaticallystopsifyoukeeppull-
ing the switch trigger for about 6 minutes.
Lighting up the front lamp
1
►1. Lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pulltheswitchtriggertolightupthelamp.Thelamp
keeps on lighting while the switch trigger is being pulled.
Thelampgoesoutapproximately10secondsafter
releasing the switch trigger.
NOTE:Useadryclothtowipethedirtoffthelensof
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
NOTE:Whenthetoolisoverheated,thelightashes
foroneminute,andthentheLEDdisplaygoesoff.In
this case, cool down the tool before operating again.
Reversing switch action
1
AB
►1. Reversing switch lever
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
CAUTION: When not operating the tool,
always set the reversing switch lever to the neu-
tral position.
Thistoolhasareversingswitchtochangethedirection
of rotation. Depress the reversing switch lever from the
AsideforclockwiserotationorfromtheBsideforcoun-
terclockwise rotation.
When the reversing switch lever is in the neutral posi-
tion, the switch trigger cannot be pulled.
Speed change
1
►1. Speed change lever
CAUTION: Always set the speed change lever
fully to the correct position. If you operate the
tool with the speed change lever positioned halfway
betweenthe"1"sideand"2"side,thetoolmaybe
damaged.
CAUTION: Do not use the speed change lever
while the tool is running.Thetoolmaybedamaged.

Makita HP332D Specifications

General

Number of gears	2
Torque settings	21
Chuck capacity (min)	1 mm
Sound pressure level	82 dB
Idle speed (1st gear)	450 RPM
Idle speed (2nd gear)	6750 RPM
Impact rate (low speed)	1500 bpm
Sound level uncertainty	3 dB
Impact rate (high speed)	22500 bpm
Drilling diameter in wood (max)	28 mm
Vibration level (metal drilling)	2.5 m/s²
Maximum torque (hard applications)	35 N⋅m
Maximum torque (soft applications)	21 N⋅m
Drilling diameter in concrete (max)	10 mm
Vibration level (concrete drilling)	12.5 m/s²
Soft grip	Yes
Product design	Pistol grip drill
Product color	Black, Blue
Uncertainty K	1.5 m/s²
Number of batteries included	2 pc(s)
Power source	Battery
Battery voltage	10.8 V
Battery capacity	4 Ah

Weight and Dimensions

Depth	168 mm
Width	66 mm
Height	236 mm
Weight	1300 g
