[3] DISASSEMBLY/ASSEMBLY
[3]-3. Motor section
DISASSEMBLING

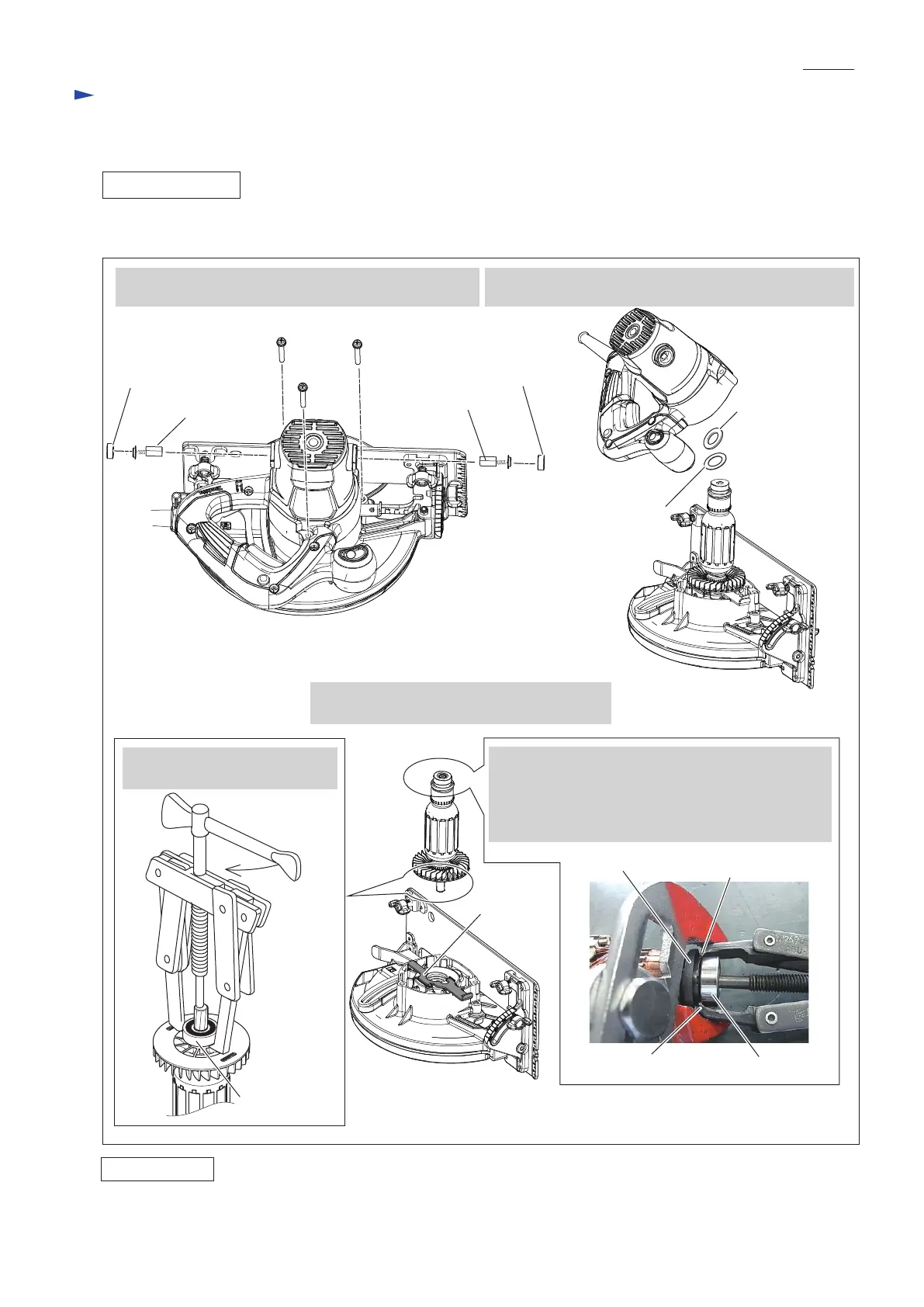

Disassemble Motor section as drawn in Fig. 12.
Fig. 12
M5x40 Pan head screw (3 pcs.)
Carbon brush
Carbon brush
Brush holder cap Brush holder cap
1. Remove Brush holder cap and Carbon brush. And then
remove three M5x40 Pan head screws.
2. Separate Motor housing from Blade case carefully
Note: Do not lose Flat washer 14 and Rubber washer 13.
Rubber washer 13
3. Remove Armature from Blade case and then
separate Ball bearings etc. as drawn below.
Flat washer 14
Remove Ball bearing 6000DDW
with 1R269.
Ball bearing 608DDW
Ball bearing
6000DDW
Insulation washer
Shaft lock
Because the clearance between Insulation washer and
Ball bearing 608DDW is narrow, it is hard to insert
the jaws of 1R269.
Therefore, remove Ball bearing 608DDW with 1R269
while holding the jaws using a water pump pliers.
Jaw of 1R269
Jaw of 1R269
P 8/ 11
Repair
Assemble Armature by reversing the disassembly procedure. Refer to Fig. 12.
Note: • Set Rubber washer 13 and Flat washer 14 in place.
• Do not fail to set Shaft lock in place.
ASSEMBLING
