Makita LS0714L Technical Information

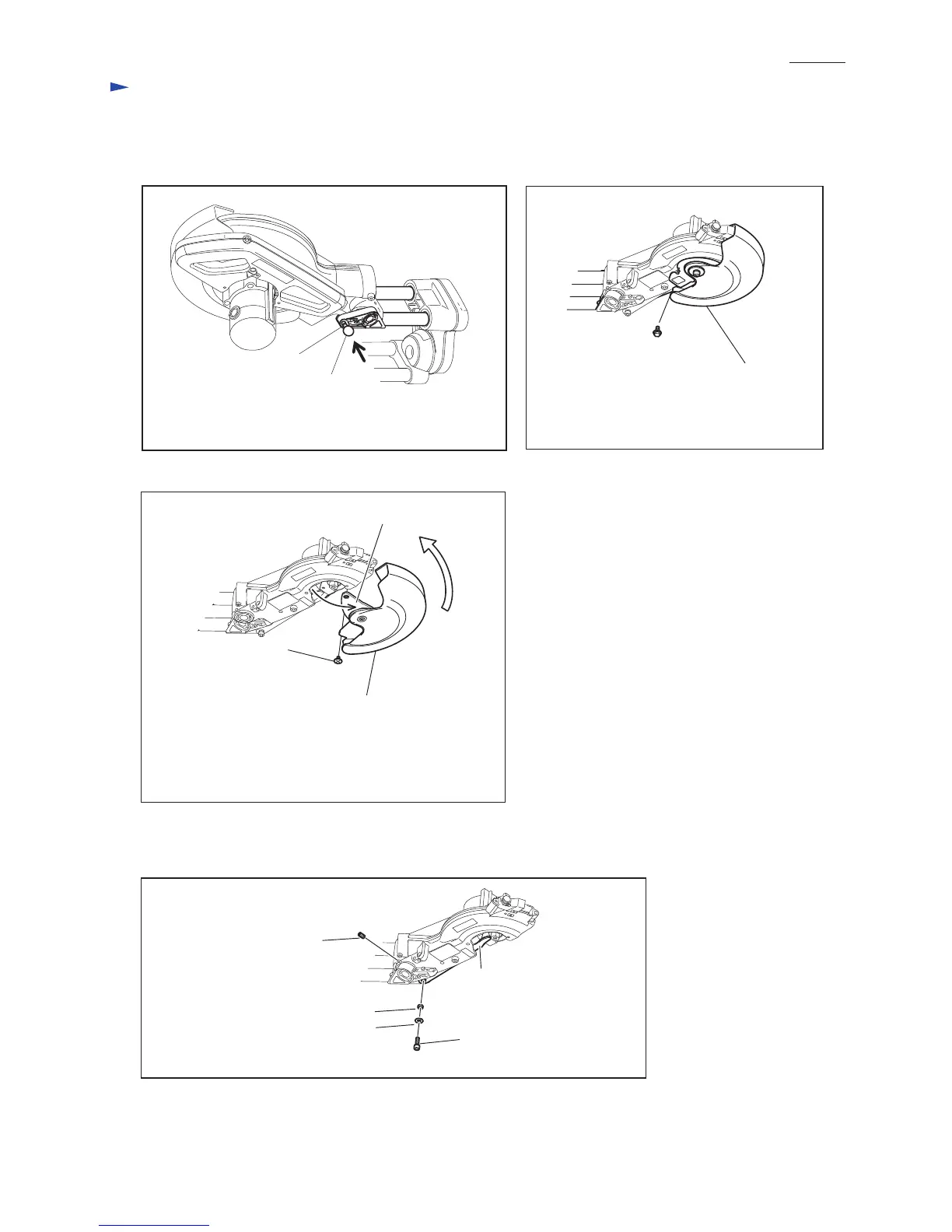

[2] Removing motor unit (blade case, motor housing, handle etc.) from front arm complete
Remove hex bolt M6x14 from center cover.
2. Remove the screws in Fig. 3-4 to disconnect the linkage of motor unit and front arm complete.
Lock the motor unit by pushing knob 20 for stopper pin
while keeping the motor unit at the rest position.
Knob 20
Stopper pin
Fig. 3-1 Fig. 3-2
Fig. 3-3
Fig. 3-4
Turn safety cover and then open center cover as illustrated
above. + flat head screw M5 comes into sight at that time.
The safety cover section can be separated from motor unit
by removing the + flat head screw M5.
Center cover
Safety cover
+ Flat head screw M5
Hex socket headbolt M6x10
(for securing pipe16-90)
Link plate
Ring 6
Flat washer 6
Hex socket head bolt M6x20
(for fixing link plate)
Center cover
Hex bolt M6x14
Repair
P 5 / 26
1. Remove safety cover section from blade case as illustrated in Fig. 3-1, Fig.3-2 and Fig.3-3.
