Makita LS0714L Technical Information

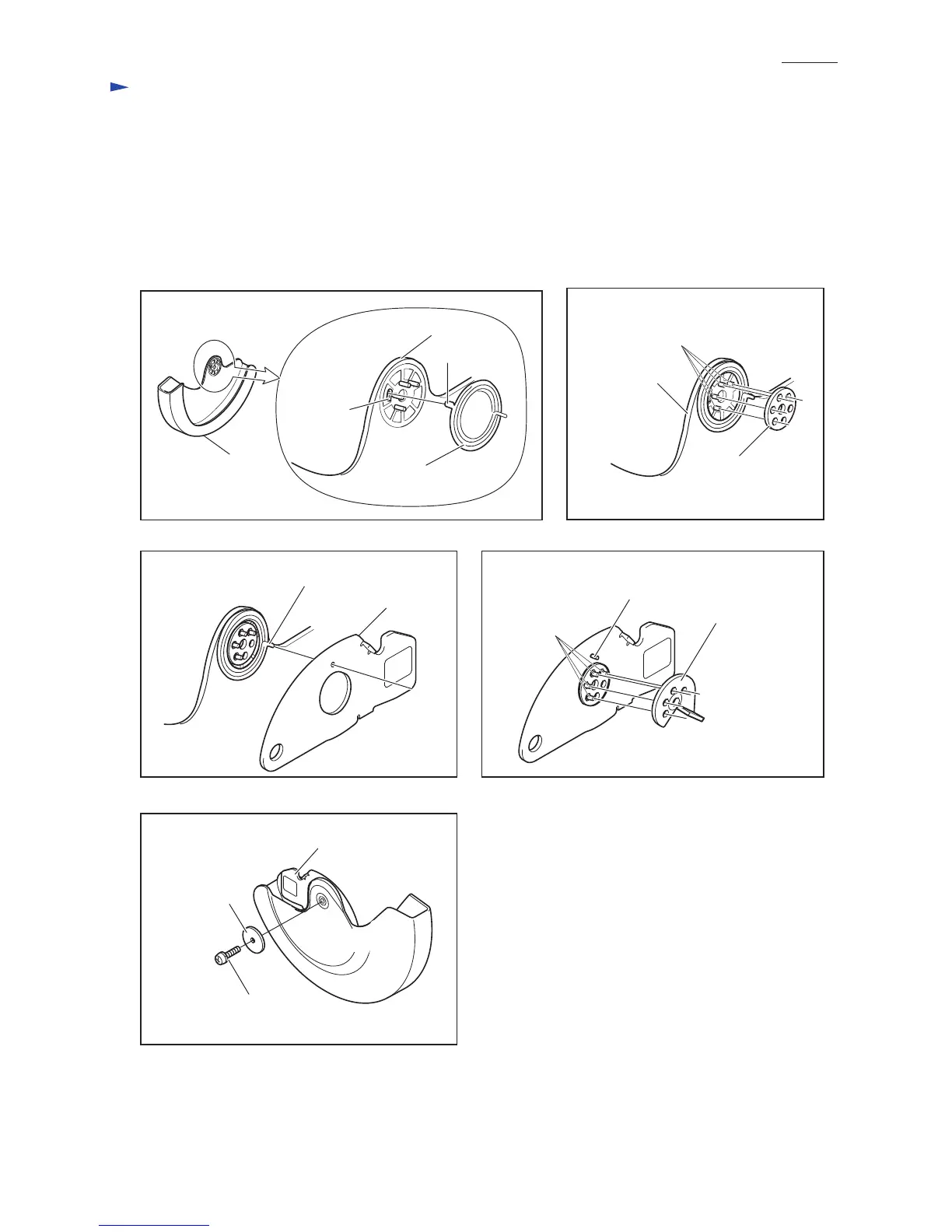

[7] Assembling safety cover section
1. Insert the tail portion of spiral spring 26 into the elliptical hole of safety cover. See Fig. 7-1.
2. Mount center washer to safety cover by aligning its holes with four bosses of safety cover. See Fig. 7-2.
3. Mount center cover by inserting the another tail portion of spiral spring 26 into the center cover's hole.
See Fig. 7-3.
4. Mount center plate to safety cover by fitting four bosses of safety cover into center plate's holes.
See Fig. 7-4.
5. Fix the assembled parts with pan head screw M5x18. See Fig. 7-5.
Center plate
Four Bosses
Four Bosses
Flat washer 5
Pan head screw
M5x18
Another tail portion of spiral spring 26
Another tail portion
of spiral spring 26
Center cover
Center cover
Safety cover
Safety cover
Safety cover
Elliptical
hole
Spiral spring 26
Tail portion
Center washer
Fig. 7-1
Fig. 7-3
Fig. 7-5
Fig. 7-4
Fig. 7-2
Repair
P 8/ 26
