[8] Removing turn base from base

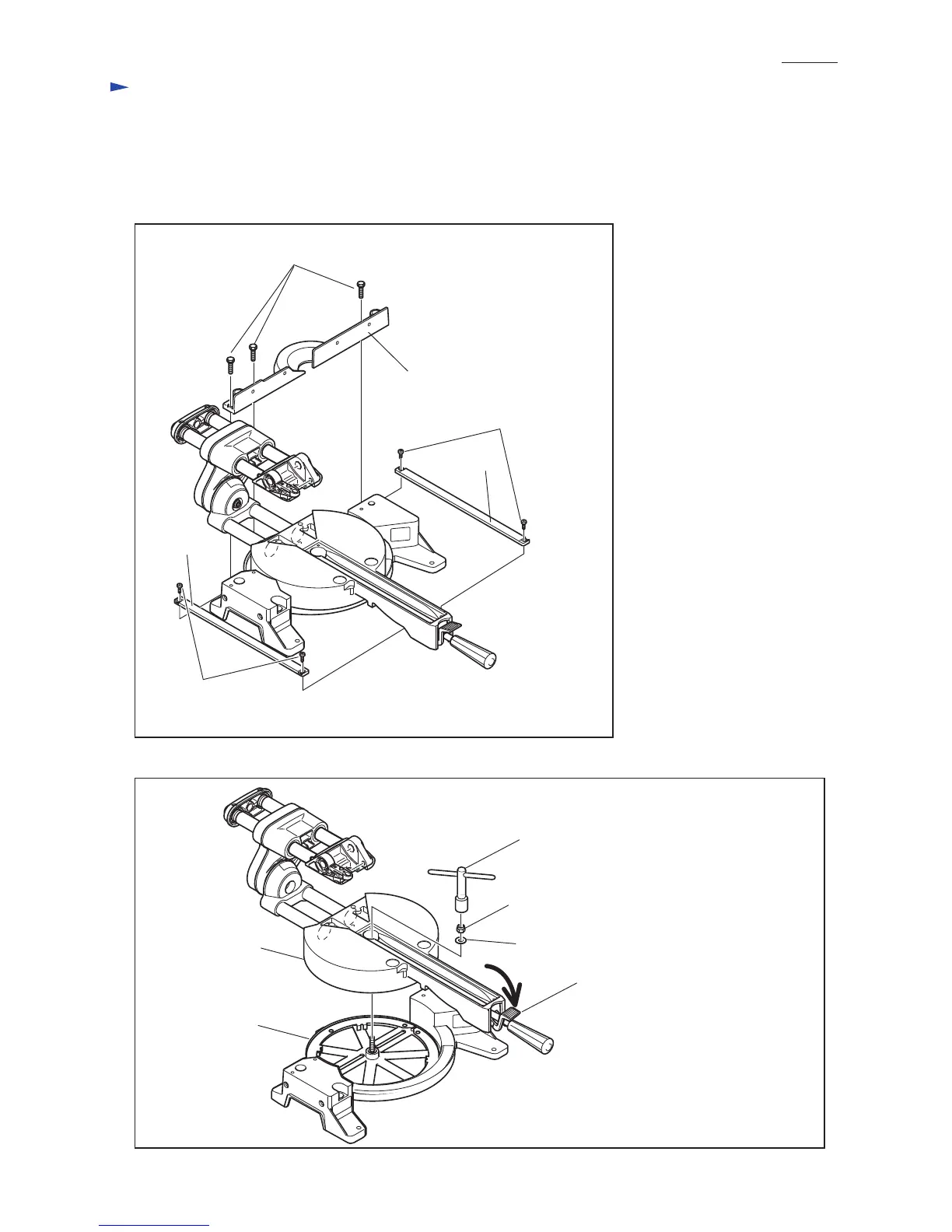

1. Remove guide fence and kerf board. See Fig. 8-1.
2. Remove hex lock nut M8-13 using socket wrench.And then, remove turn base from base while pushing lock lever in
the direction designated with arrow. See Fig. 8-2.
Fig. 8-1
Fig. 8-2
Socket wrench
Hex lock nut M8-13
Flat washer 8
Lock lever
Remove turn base from base complete
while pushing down lock lever.
Turn base complete
Base
Tapping screw bind CT 4x12
Tapping screw bind
CT 4x12
Kerf board
Kerf board
Guide fence
Hex socket headbolt M6x25
Repair
P 9/ 26
