22

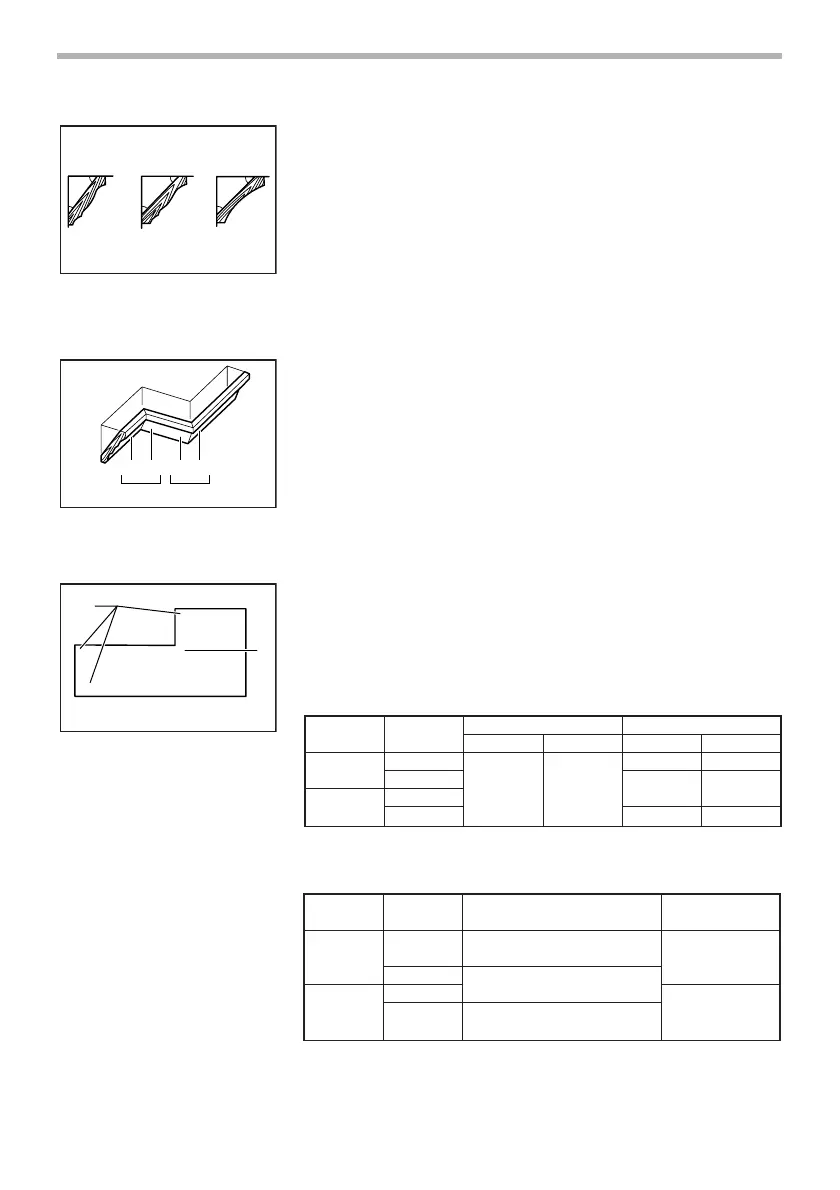

There are two common types of crown moldings and one
type of cove moldings; 52/38° wall angle crown molding,
45° wall angle crown molding and 45° wall angle cove
molding. See illustrations.
There are crown and cove molding joints which are
made to fit “Inside” 90° corners ((1) and (2) in Fig. A) and
“Outside” 90° corners ((3) and (4) in Fig. A).
Measuring
Measure the wall length and adjust workpiece on table to
cut wall contact edge to desired length. Always make
sure that cut workpiece length at the back of the work-
piece is the same as wall length. Adjust cut length for
angle of cut. Always use several pieces for test cuts to
check the saw angles.
When cutting crown and cove moldings, set the bevel angle
and miter angle as indicated in the table (A) and position the
moldings on the top surface of the saw base as indicated in
the table (B).
1. 52/38° type crown molding
2. 45° type crown molding
3. 45° type cove molding
52˚
38˚
45˚
45˚
45˚
45˚
123
001555
1. Inside corner
2. Outside corner
1. Inside corner
2. Outside corner
(1) (2) (3) (4)
1 2
Fig.A
001556
2
(1)
(2)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(2)
(3)
(4)
1
001557
For inside
corner
For outside
corner
Molding
position in Fig. A
(1)
(2)
(3)
(4)
52/38˚ type
Left 33.9˚
45˚ type
Left 30˚
52/38˚ type
Right 31.6˚
Left 31.6˚
Right 31.6˚
45˚ type
Right 35.3˚
Left 35.3˚
Right 35.3˚
Bevel angle Miter angle
Table (A)
For inside
corner
For outside
corner
Molding
position in Fig. A
(1)
(2)
(3)
(4)
Molding edge against
guide fence
Ceiling contact edge should
be against guide fence.
Wall contact edge should be
against guide fence.
Ceiling contact edge should be
against guide fence.
Finished piece
Finished piece will
be on the Left side
of blade.
Finished piece will
be on the Right side
of blade.
Table (B)
