Makita UH422D Technical Information

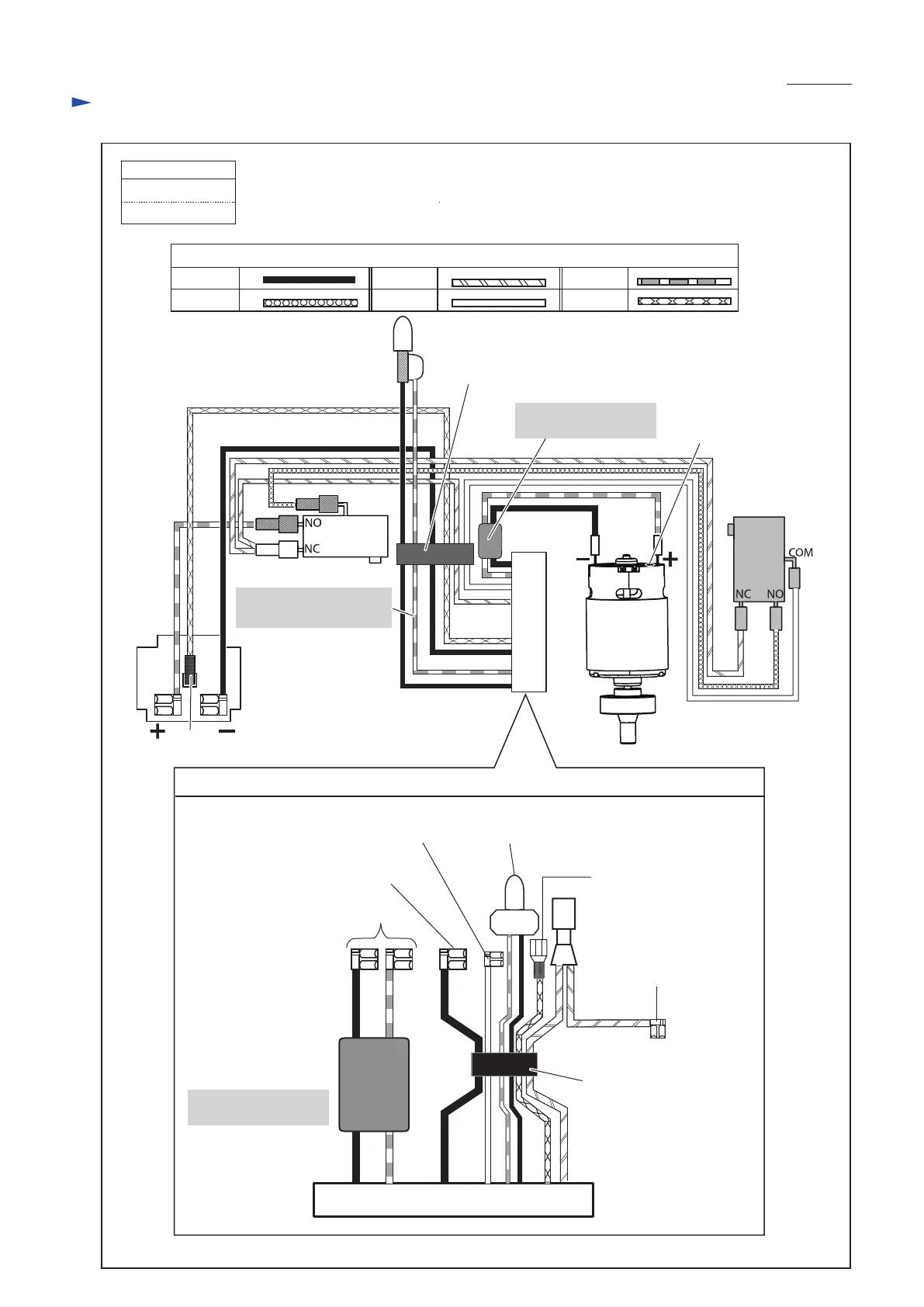

Circuit diagram
Fig. D-1
White
LED (Warning lamp for battery)
LED (Warning lamp for battery)
Orange
Purple
Yellow
Color index of lead wires' sheath
Black
Switch
Tape for bundling
Lead wires
Tape for bundling
Lead wires
Line filter
Switch in
rear grip
COM
Switch
lever B side
DC motor
to DC motor
to Terminal
to Switch in Front
grip
Controller
Controller
Terminal
Model No.
Red
DUH483/ 523
DUH481/ 521
Red dot mark
White lead wire is used
for some countries.
Line filter
to AS Terminal
AS
Switch
in front
grip
to Switch in Rear grip
P 10/ 13
Line filter is not used
for some countries.
Line filter is not used
for some countries.
