4. SCHEME OF CONNECTION OF THE REGULATOR.
In order to connect the regulator to the device with which it is to be controlled, the following should
be done:
✓ mount the regulator in its place of work; the fixing of the regulator is carried outin the following
way:
− unscrew the screws of the casing cover,
− take off the cover,
− screw the regulator casing to the prepared structure through the fixing holes,
− put on the cover,
− fasten the screws of the casing cover,
✓ place the temperature sensor inside the cooling chamber in the most convenient place for
temperature measurement and at the same time shielded from accidental damage,

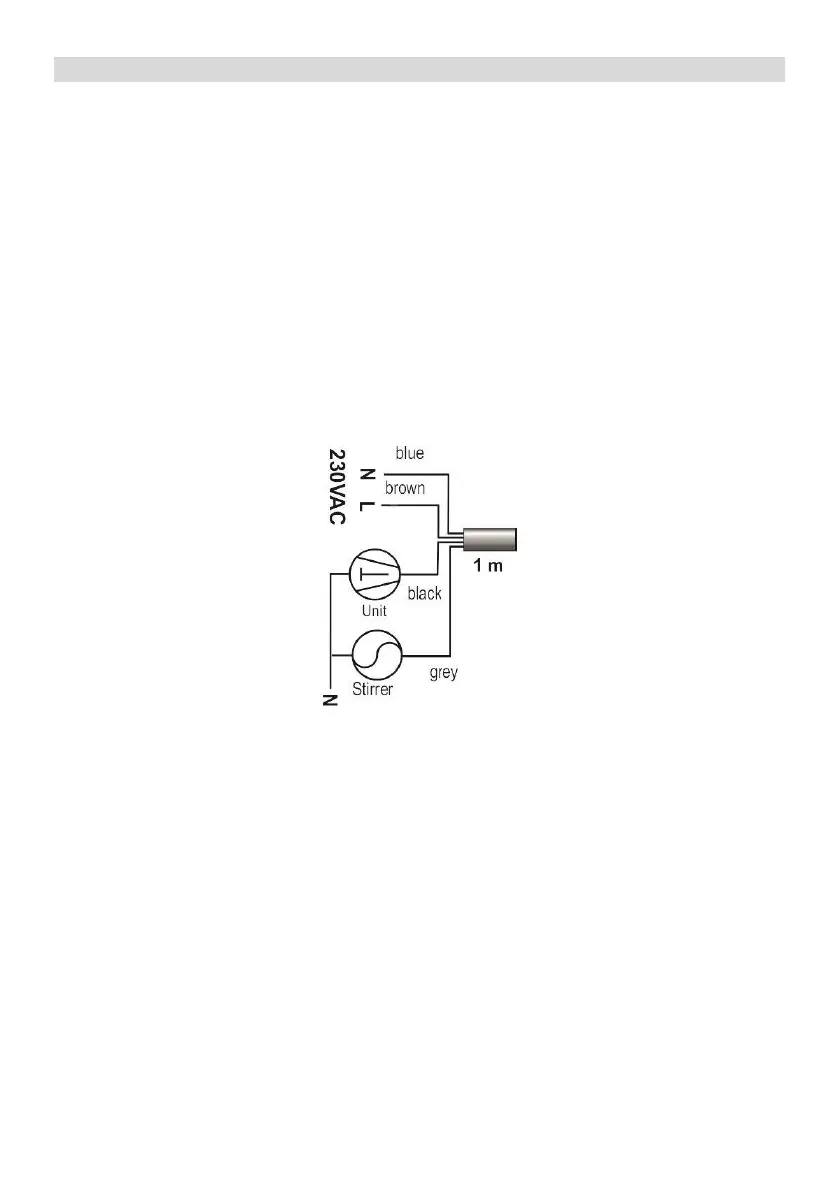

✓ make the regulator connection according to the following scheme:
