6

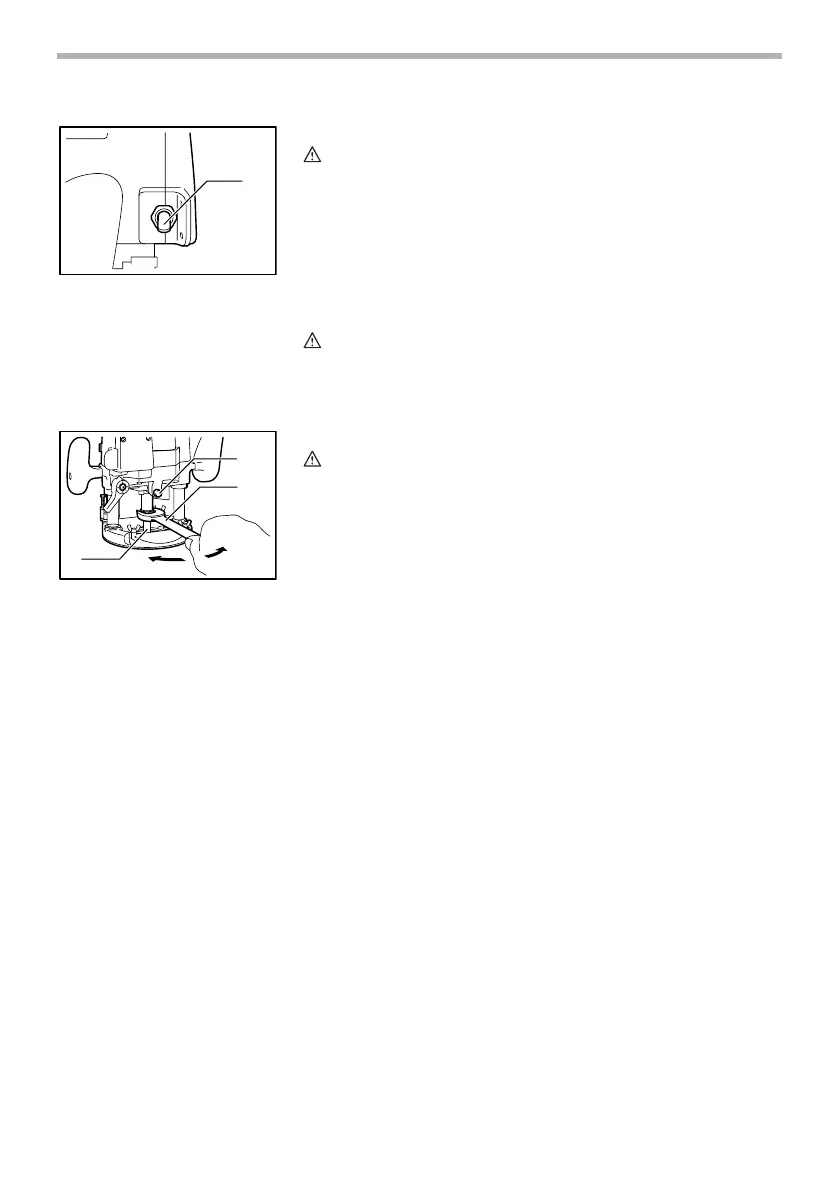

Switch action
CAUTION:
• Before plugging in the tool, always check to see that the tool is switched
off.
• Make sure that the shaft lock is released before the switch is turned on.
To start the tool, move the switch lever to the I position. To stop the tool, move
the switch lever to the O position.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Installing or removing the bit
CAUTION:
• Install the bit securely. Always use only the wrench provided with the
tool. A loose or overtightened bit can be dangerous.
• Do not tighten the collet nut without inserting a bit or install small shank
bits without using a collet sleeve. Either can lead to breakage of the
collet cone.
Insert the bit all the way into the collet cone. Press the shaft lock to keep the
shaft stationary and use the wrench to tighten the collet nut securely. When
using router bits with smaller shank diameter, first insert the appropriate collet
sleeve into the collet cone, then install the bit as described above.
To remove the bit, follow the installation procedure in reverse.
1. Switch lever
1
004927
1. Shaft lock
2. Wrench
3. Bit
1
2
3
004928
