8

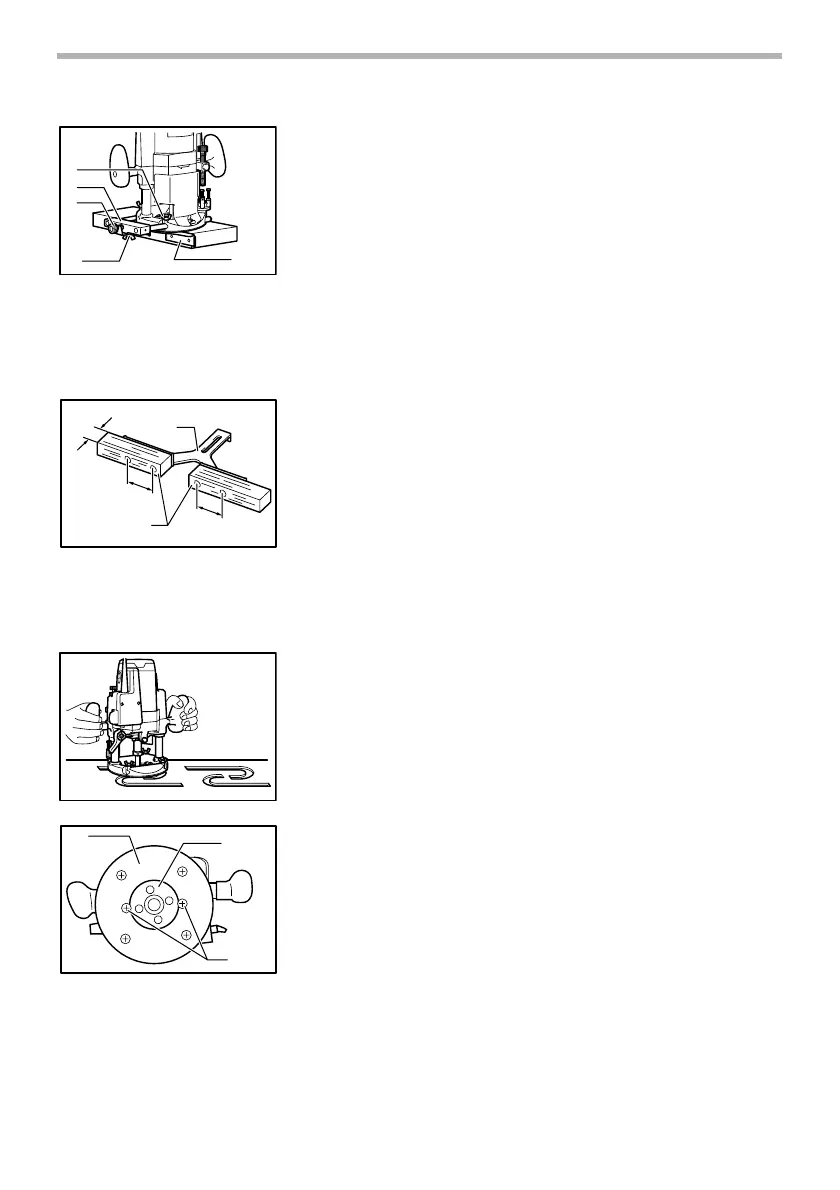

Install the straight guide on the guide holder with the thumb screw (B). Insert
the guide holder into the holes in the tool base and tighten the thumb screw
(A). To adjust the distance between the bit and the straight guide, loosen the
thumb screw (B) and turn the fine adjusting screw (1.5 mm per turn). At the
desired distance, tighten the thumb screw (B) to secure the straight guide in
place.
Wider straight guide of desired dimensions may be made by using the conven-
ient holes in the guide to bolt on extra pieces of wood.
When using a large diameter bit, attach pieces of wood to the straight guide
which have a thickness of more than 15 mm to prevent the bit from striking the
straight guide.
When cutting, move the tool with the straight guide flush with the side of the
workpiece.
Templet guide
The templet guide provides a sleeve through which the bit passes, allowing
use of the tool with templet patterns.
To install the templet guide, loosen the screws on the tool base, insert the tem-
plet guide and then tighten the screws.
1. Wing bolt (A)
2. Guide holder
3. Fine adjusting screw
4. Wing bolt (B)
5. Straight guide
1
2
3
4
5
004930
1. More than 15 mm
2. Straight guide
3. Wood
1
2
55 mm
55 mm
3
004931
004932
1. Templet guide
2. Screw
3. Base plate
1
2
3
003692
