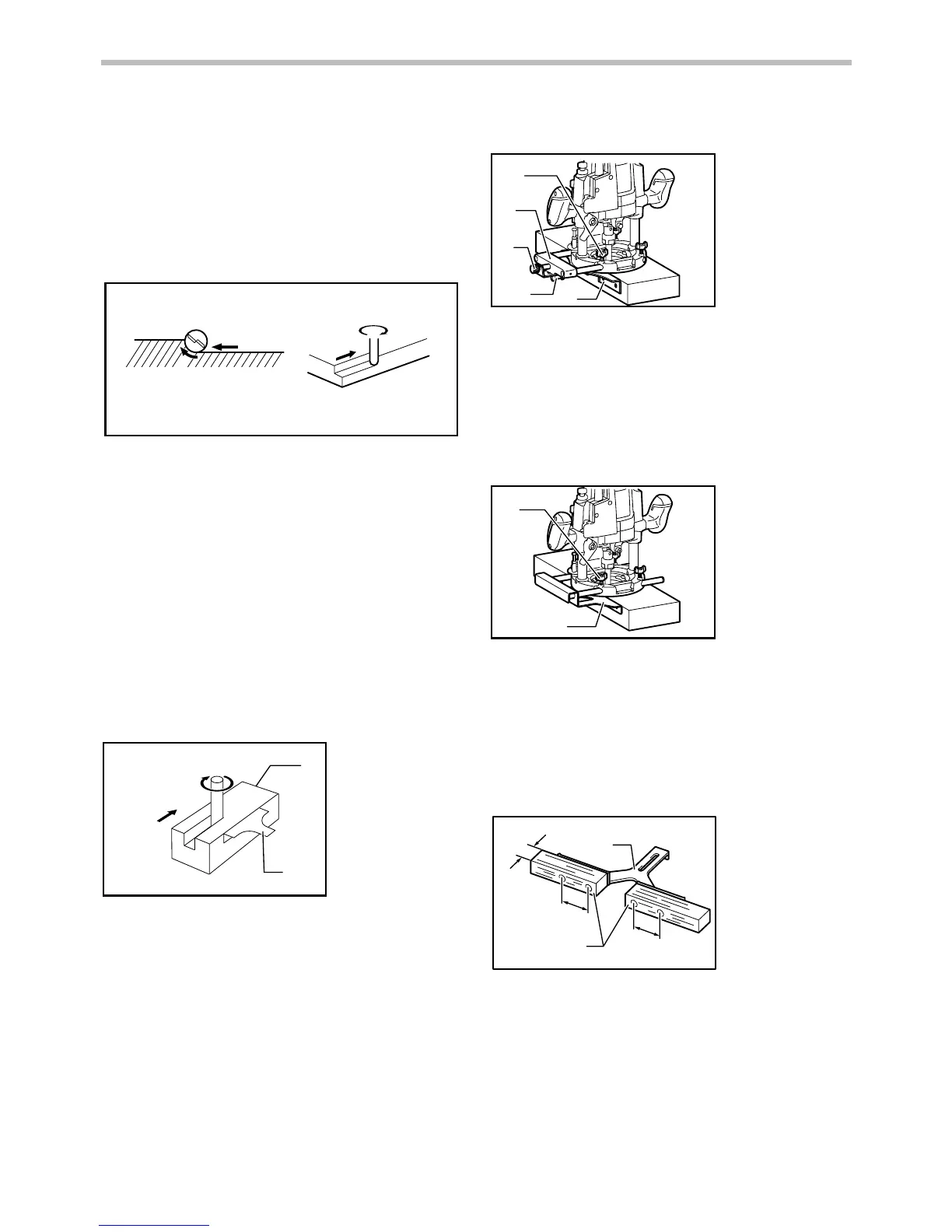

Maktec MT362 - Page 7

7
Set the tool base on the workpiece to be cut without the
bit making any contact. Then turn the tool on and wait
until the bit attains full speed. Lower the tool body and
move the tool forward over the workpiece surface,
keeping the tool base flush and advancing smoothly
until the cutting is complete.
When doing edge cutting, the workpiece surface should
be on the left side of the bit in the feed direction.
1
2
3
4
4
2
001984
NOTE:
• Moving the tool forward too fast may cause a poor
quality of cut, or damage to the bit or motor.
Moving the tool forward too slowly may burn and
mar the cut. The proper feed rate will depend on
the bit size, the kind of workpiece and depth of cut.
Before beginning the cut on the actual workpiece,
it is advisable to make a sample cut on a piece of
scrap lumber. This will show exactly how the cut
will look as well as enable you to check
dimensions.
1
2
3
4
001985
NOTE:
• When using the straight guide or the trimmer guide,
be sure to install it on the right side in the feed
direction. This will help to keep it flush with the
side of the workpiece.
Straight guide
The straight guide is effectively used for straight cuts
when chamfering or grooving.
Straight guide (Type A) (Optional accessory)
1
2
3
4
5
013299
Install the straight guide on the guide holder with the
thumb screw (B). Insert the guide holder into the holes
in the tool base and tighten the thumb screw (A). To
adjust the distance between the bit and the straight
guide, loosen the thumb screw (B) and turn the fine
adjusting screw. At the desired distance, tighten the
thumb screw (B) to secure the straight guide in place.
Straight guide (Type B) (Optional accessory)
1
2
013300
Insert the straight guide into the holes in the tool base
and tighten the thumb screw. To adjust the distance
between the bit and the straight guide, loosen the thumb
screw. At the desired distance, tighten the thumb screw
to secure the straight guide in place.
Wider straight guide of desired dimensions may be
made by using the convenient holes in the guide to bolt
on extra pieces of wood.
1
2
55 mm
55 mm
3
004931
When using a large diameter bit, attach pieces of wood
to the straight guide which have a thickness of more
than 15 mm to prevent the bit from striking the straight
guide.
When cutting, move the tool with the straight guide flush
with the side of the workpiece.
1. More than 15 mm
2. Straight guide
3. Wood
1. Thumb screw
2. Straight guide
1. Thumb screw
(A)
2. Guide holder
3. Fine adjusting
screw
4. Thumb screw
(B)
5. Straight guide
1. Feed direction
2. Bit revolving
direction
3. Workpiece
4. Straight guide
1. Workpiece
2. Bit revolving direction
3. View from the top of the tool
4. Feed direction
