8

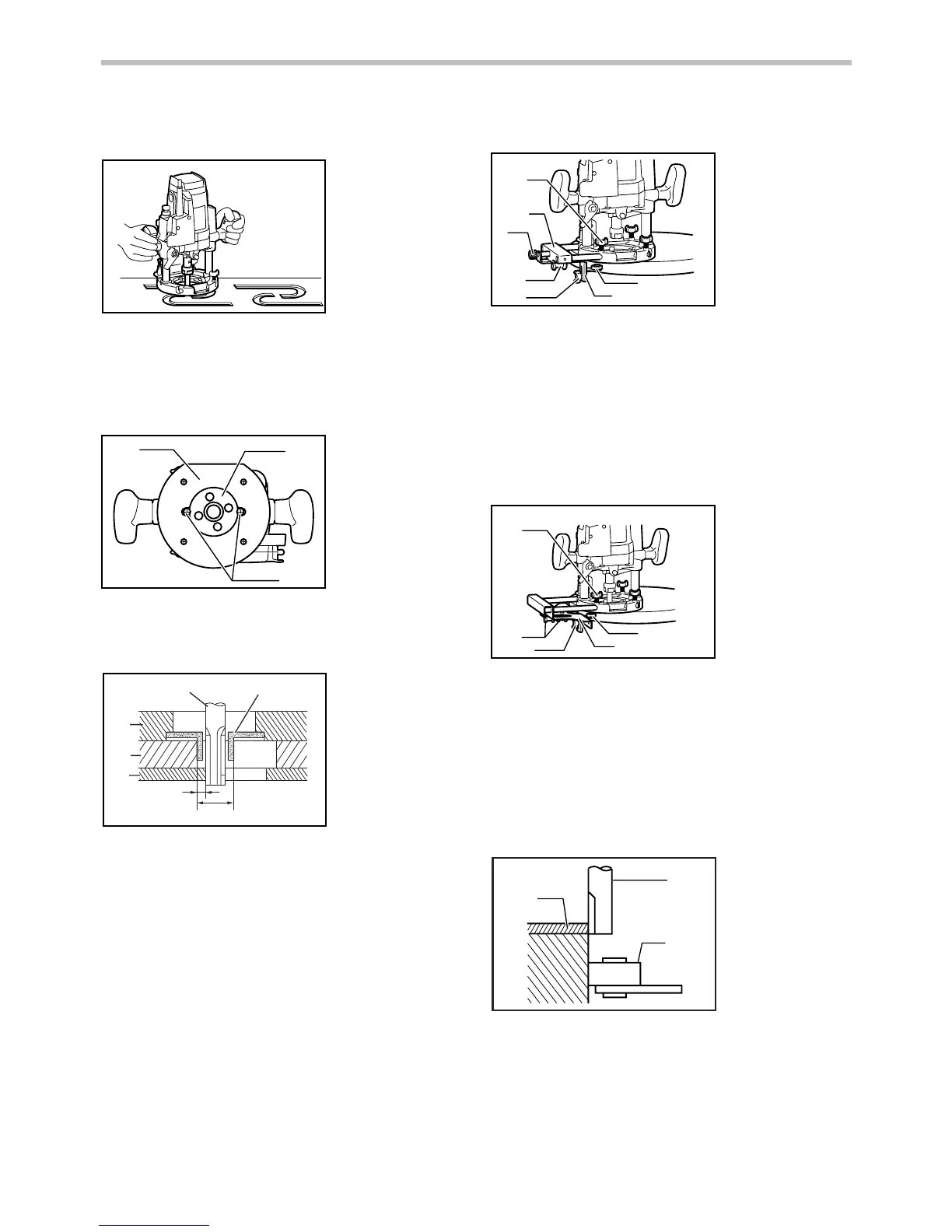

Templet guide
013301
The templet guide provides a sleeve through which the
bit passes, allowing use of the tool with templet patterns.
To install the templet guide, loosen the screws on the
tool base, insert the templet guide and then tighten the
screws.
1
2
3
013302
Secure the templet to the workpiece. Place the tool on
the templet and move the tool with the templet guide
sliding along the side of the templet.
1
2
3
4
5
6
7
003695
NOTE:
• The workpiece will be cut a slightly different size
from the templet. Allow for the distance (X)
between the bit and the outside of the templet
guide. The distance (X) can be calculated by using
the following equation:
Distance (X) = (outside diameter of the templet
guide - bit diameter) / 2
Trimmer guide
Trimming, curved cuts in veneers for furniture and the
like can be done easily with the trimmer guide. The
guide roller rides the curve and assures a fine cut.
Trimmer guide (Type A) (Optional accessory)
1
2
3
4
5
6
7
013305
Install the trimmer guide on the guide holder with the
thumb screw (B). Insert the guide holder into the holes
in the tool base and tighten the thumb screw (A). To
adjust the distance between the bit and the trimmer
guide, loosen the thumb screw (B) and turn the fine
adjusting screw. When adjusting the guide roller up or
down, loosen the thumb screw (C). After adjusting,
tighten all the thumb screws securely.
Trimmer guide (Type B) (Optional accessory)
1
2
3
4
5
013306
Install the trimmer guide on the straight guide with the
thumb screws (B). Insert the straight guide into the
holes in the tool base and tighten the thumb screw (A).
To adjust the distance between the bit and the trimmer
guide, loosen the thumb screws (B). When adjusting the
guide roller up or down, loosen the thumb screw (C).
After adjusting, tighten all the thumb screws securely.
When cutting, move the tool with the guide roller riding
the side of the workpiece.
3
1
2
003701
1. Bit
2. Guide roller
3. Workpiece
1. Thumb screw
(A)
2. Thumb screws
(B)
3. Thumb screw
(C)
4. Guide roller
5. Trimmer guide
1.
Thumb screw (A)
2. Guide holder
3. Fine adjusting
screw
4.
Thumb screw (B)
5. Thumb screw (C)
6. Trimmer guide
7. Guide roller
1. Bit
2. Base
3. Templet
4. Workpiece
5. Distance (X)
6. Outside
diameter of the
templet guide
7. Templet guide
1. Templet guide
2. Screws
3. Base plate
