[4] DISASSEMBLY/ASSEMBLY
[4]-4. Shaft lock
DISASSEMBLYING

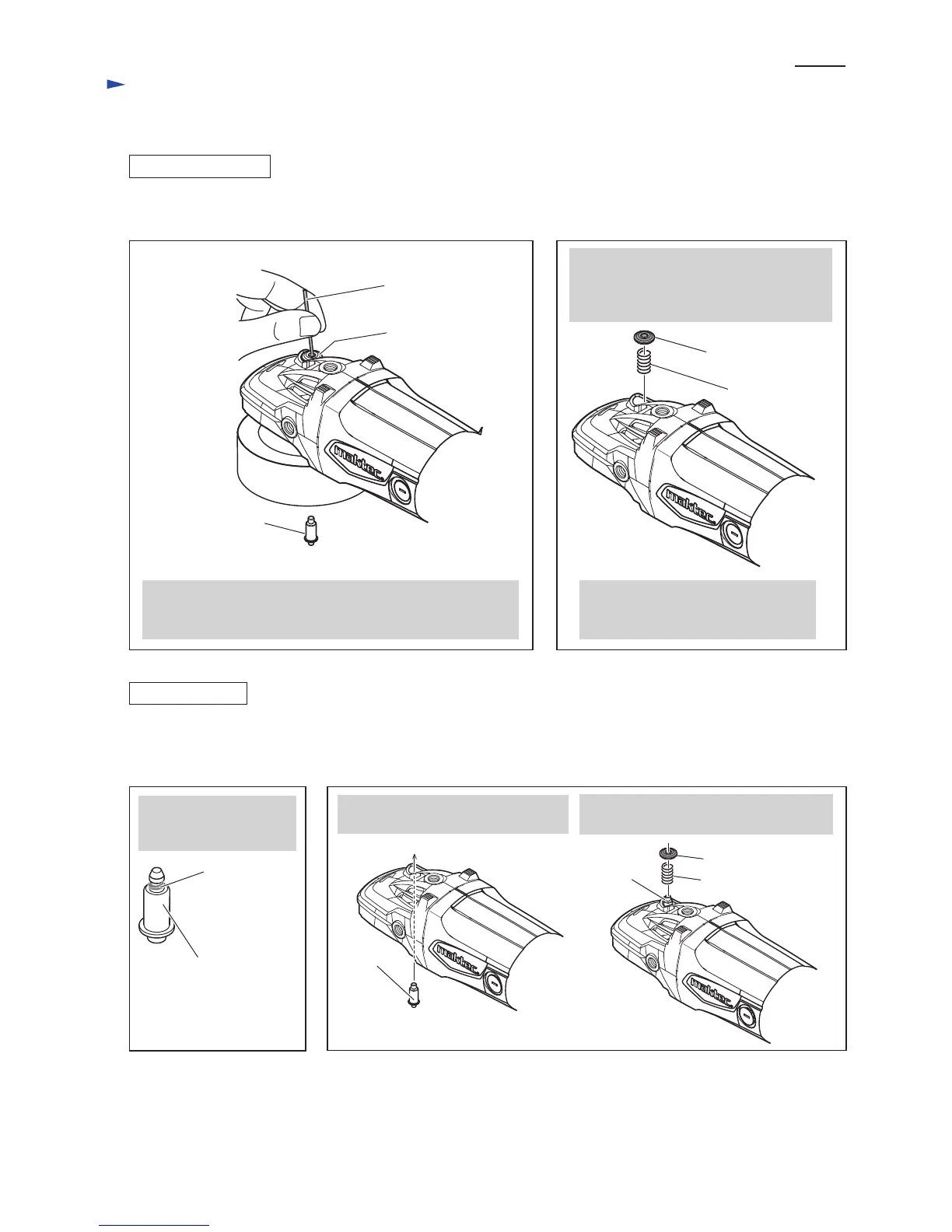

Fig. 8 Fig. 9
Setting 1R268 to Shoulder pin 5 through the small hole on Pin
cap, and tap 1R268 with Plastic hammer.
Shoulder pin 5 comes out from Gear housing complete.
Release 1R268 from Pin cap carefully
so that Pin cap does not be slung by
Compression spring 12.
Note: Do not reuse Pin cap, removal of
Shoulder pin 5 damages the inside
surface of Pin cap, producing plastic
dust.
Shoulder pin 5
(1) Remove Bearing box section from Gear housing complete. (Fig. 1)
(2) Shaft lock mechanism can be disassembled. (Figs. 8, 9)
1R268
Pin cap
Pin cap
Compression
spring 12
Fig. 10 Fig. 11
Pin cap
Compression spring 12
(1) Be sure to use a new Pin cap for replacement and to remove all the plastic dust on Shoulder pin 5. (Fig. 10)
(2) Assemble the Parts for Shaft lock mechanism. (Fig. 11)
Plastic dust
Shoulder pin 5
Remove Plastic dust from
the constricted part of
Shoulder pin 5.
Assemble Compression spring 12 and Pin
cap by pressing them to Shoulder pin 5.
Insert Shoulder pin 5 through the hole
of Gear housing complete.
ASSEMBLING
Shoulder
pin 5
Shoulder
pin 5
