Maktec MT902 - Functional Description and Assembly; Shaft Lock and Switch Operation; Installing Side Grip and Guards; Accessory Mounting Procedures

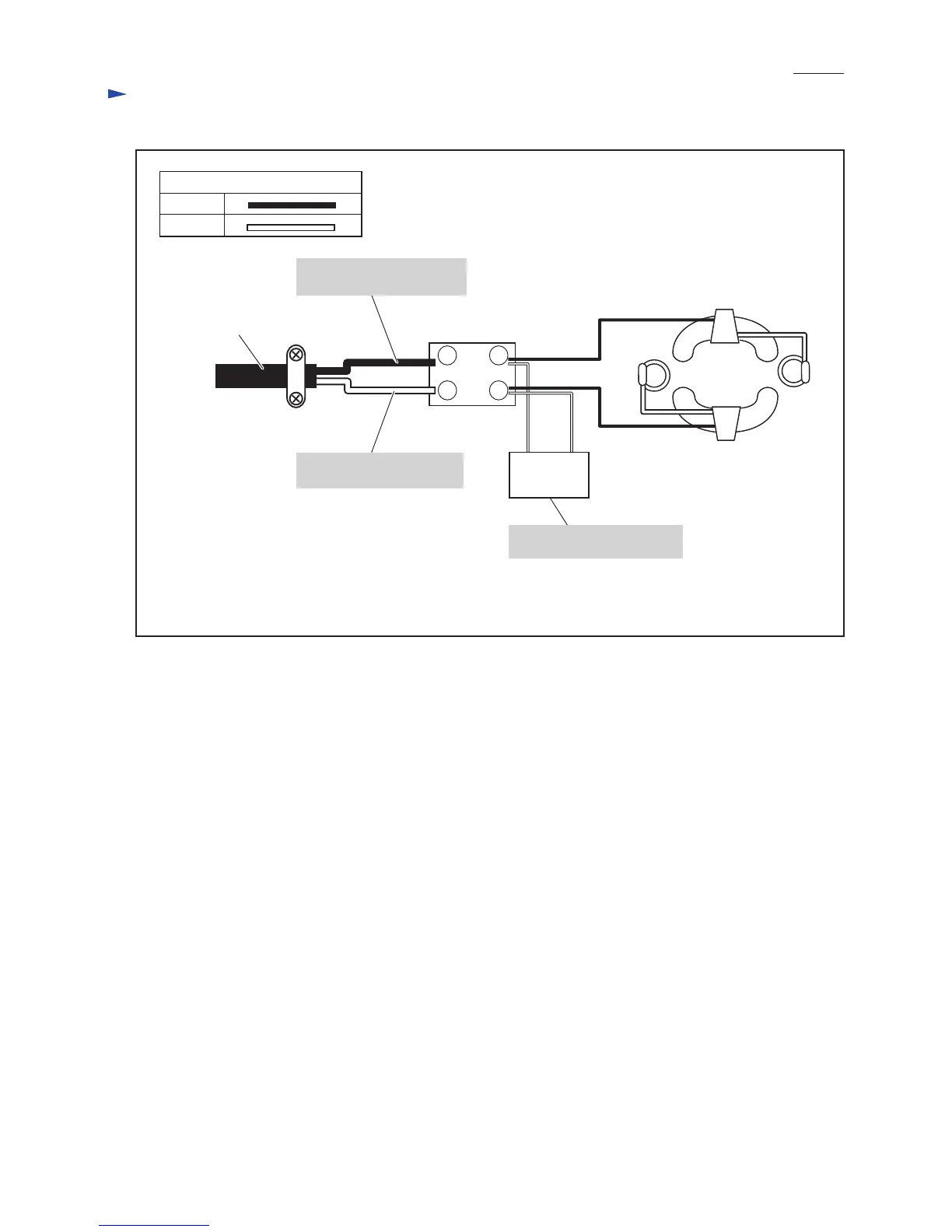

Circuit diagram
P 8/ 9
Power supply cord
Switch
Field
Noise
suppressor
This Lead wire is blue for
some countries.
This Lead wire is brown for
some countries.
Color index of lead wires' sheath
Black
Fig. D-1
12
34
White
Noise suppressor is not used
for some countries.
