Malaguti F12R L.C. 50 cc User Manual

02.07 23
F12R L.C. 50 cc.
Lighting System
B
CHAPTER
ISSUE PAGE

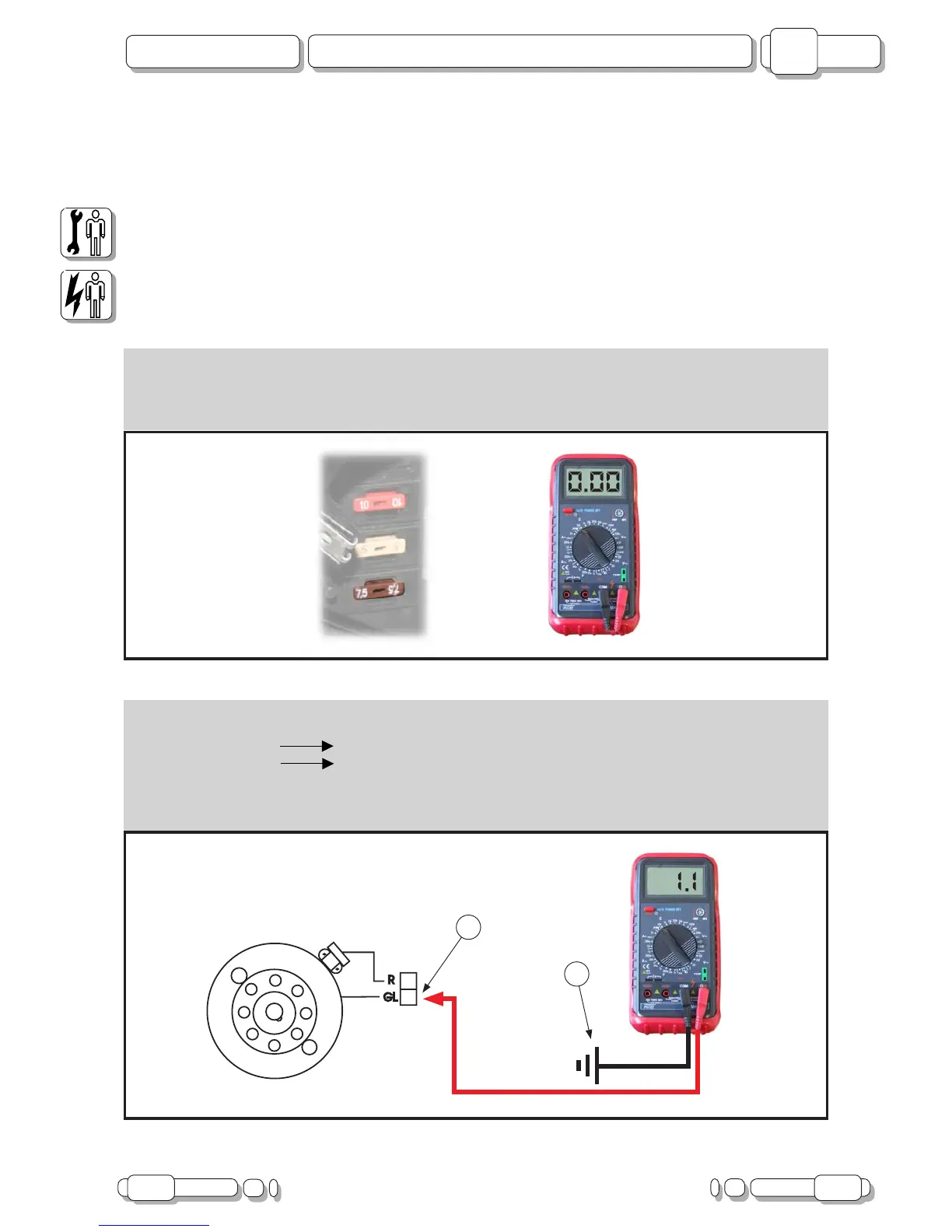

LIGHTING SYSTEM
If the lighting system is not working, check:
1) CONTINUITY OF 7.5A FUSE
2) RESISTANCE OF LIGHTING SYSTEM COIL
3) CONTINUITY OF YELLOW CABLE
4) VOLTAGE REGULATOR
5) CONNECTION OF LIGHTING SYSTEM
1. Continuity of 7.5A fuse
- Remove fuse.
- Connect Tester (Ω) to fuse.
- Check continuity of fuse.
- Not compliant: replace fuse.
2. Lighting system coil resistance
- Detach connector of ywheel magneto.
- Connect Tester (Ω), as follows:
- Terminal (+) of Tester
Yellow cable (1).
- Terminal (-) of Tester
Ground (2).
- Lighting system coil resistance: 1 ÷ 1.2 Ω at 20°C.
- Compliant: continue searching.
- Not compliant: replace stator.
F. 21
GL
R
F. 22
Tester (Ω)
Tester (Ω)
1
2

Malaguti F12R L.C. 50 cc Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	49.2 cc
Cooling System	Liquid cooled
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Weight	97 kg
Transmission	CVT
Rear Suspension	Single shock absorber
