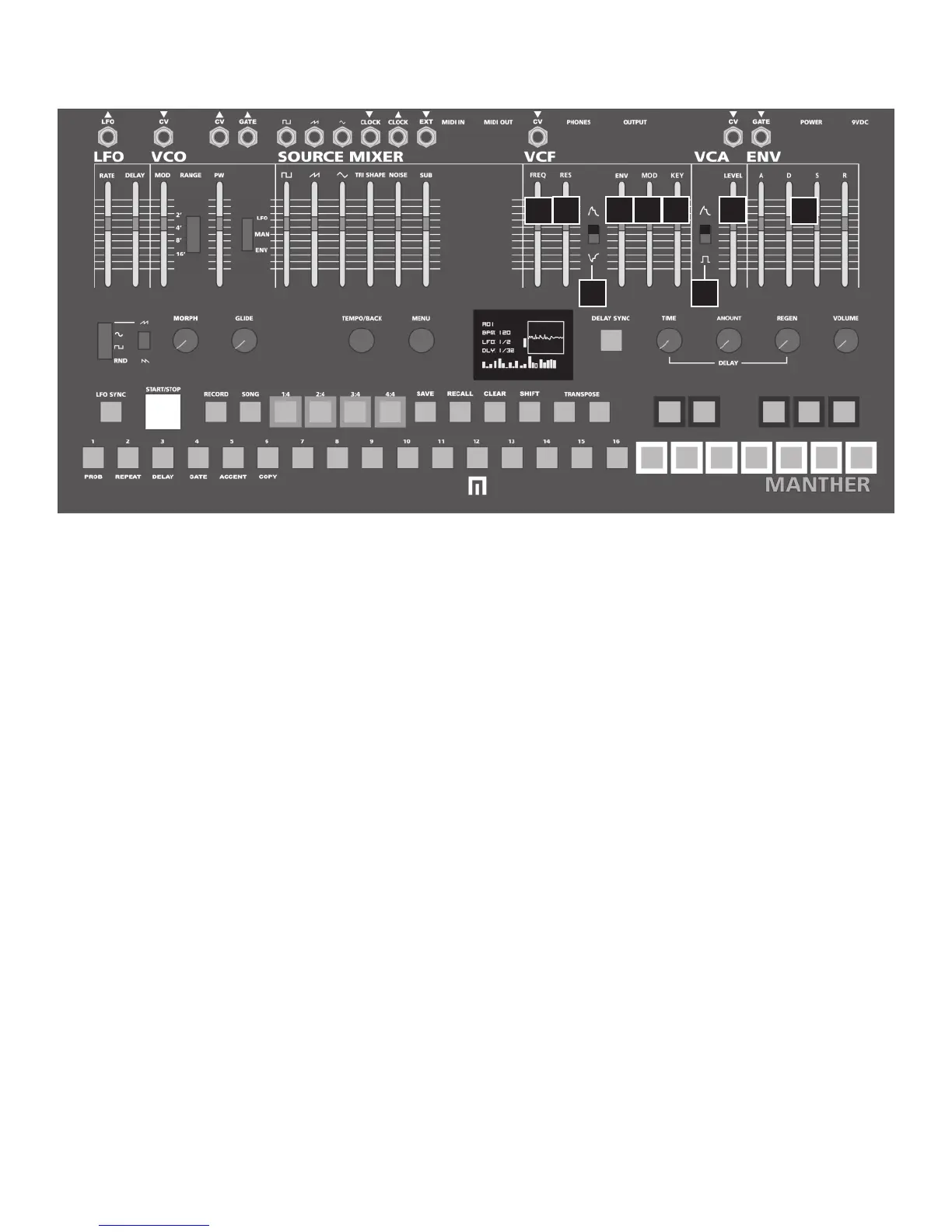

VCF, VCA & ADSR ENVELOPE
VCF
16 VCF CUTOFF FREQUENCY SLIDER
Manual control of filter cutoff frequency. Sums with VCF modulation mixer (ENV, MOD, KEY) and VCF CV IN input.
17 VCF RESONANCE CONTROL
Sets filter resonance.
18 VCF/ENVELOPE MODULATION SWITCH
Switch the ENVELOPE to either positively or negatively modulate the VCF (UP position is postive).
19 VCF/ENVELOPE MODULATION CONTROL
Controls the amount of modulation applied to filter frequency cutoff from the envelope generated by the ENVELOPE section.
20 LFO TO VCF MODULATION CONTROL
Controls the amount the LFO modulates the VCF.
21 VCF KEYTRACKING CONTROL
Controls the amount of sequencer pitch CV applied to the VCF.
VCA
22 VCA ENVELOPE/GATE MODE SWITCH
Switches VCA control between ENV and GATE mode. In ENV mode the ENV section’s ADSR controls the amplitude of the VCA. In
GATE mode, a gate signal is generated whenever a key is pressed or a sequencer note is played, bringing the VCA to maximum
amplitude.
23 VCA LEVEL CONTROL
Down position for zero amplitude and up position for full amplitude.
ENVELOPE
24 ADSR ENVELOPE CONTROLS
Control over Attack, Decay, Sustain and Release. For instance, Attack in down position for the shortest attack.
16
17
19
20
21
18 22
23
24
7
