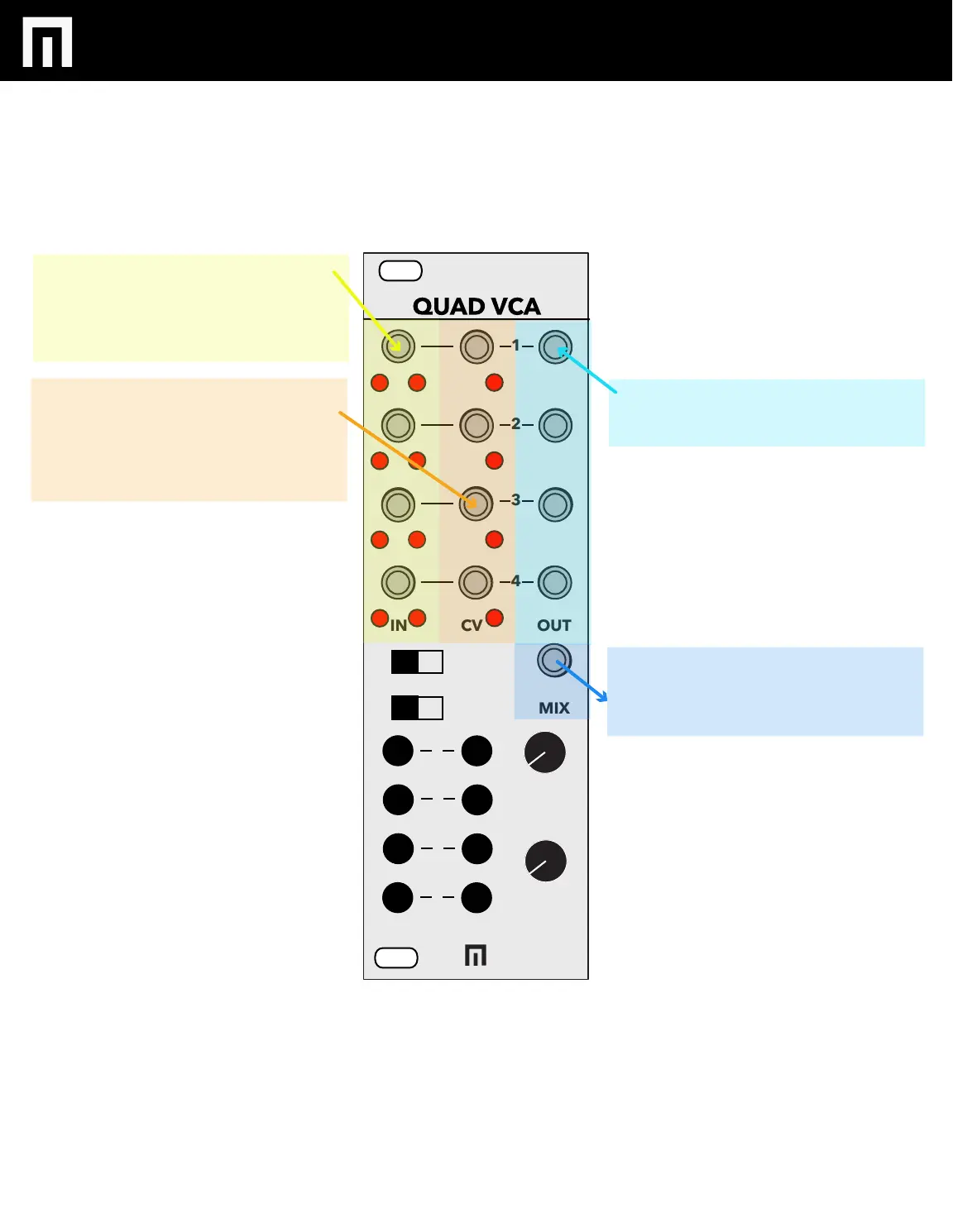

INPUT CHANNELS 1-4:
Patch Audio or CV from external
sources to these inputs. Accepts
+/-5V.
BI-POLAR CV INPUT CHANNELS
1-4:
CV inputs 1-4. All channels accept
up to +/-10V. LEDs indicate CV
input amount for each channel.
CHANNEL OUTPUTS 1-4
Audio or CV individual outputs.
MIX OUTPUT:
Mixed output of channel outputs
1-4.
