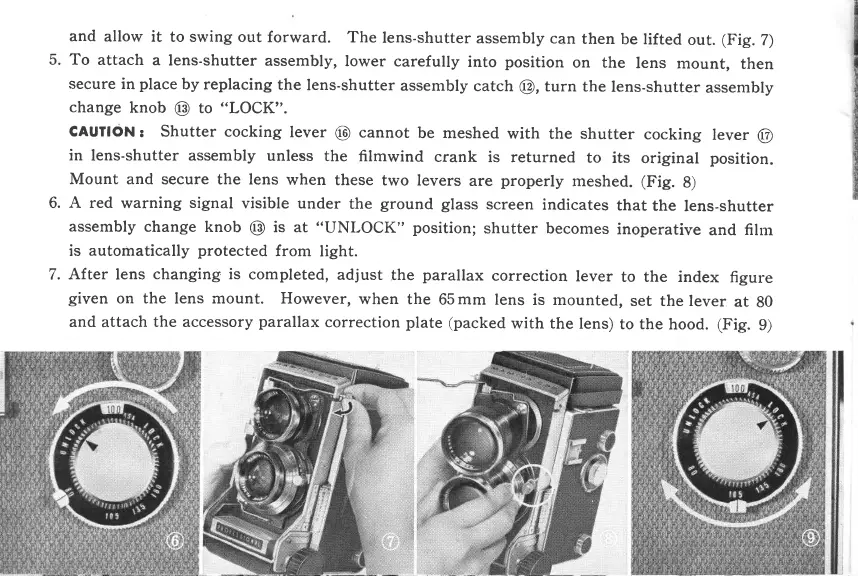

Mamiya C33 Professional - Attaching Lens-Shutter Assembly; Parallax Correction Lever Adjustment

and
allow it
to swing out forward.
The
lens-shutter
assembly can
then
be lifted
out.
(Fig.
7)
5' To
attach a
lens-shutter
assembly, lower
carefully
into
position
on the
lens
mount,
then
secure
in
place
by replacing
the
lens-shutter
assembly
catch
@,
turn
the lens-shutter
assembly
change
knob
@
to
"LOCK".
CAuIloN: Shutter cocking
lever
@
cannot
be meshed
with
the shutter
cocking
lever
@
in
lens-shutter assembly unless
the filmwind
crank is returned
to
its original
position.
Mount and secure the lens
when
these two levers
are
properly
meshed.
(FiS.
8)
6. A red warning signal
visible under
the
ground
glass
screen
indicates
that
the
lens-shutter
assembly
change knob
@
is at
"UNLOCK"
position;
shutter becomes
inoperative
and filnr
is automatically
protected
from light.
7.
After lens changing is completed,
adjust
the
parallax
correction
lever
to the index
figure
given
on the lens mount. However,
when the
65mm lens
is mounted,
set thelever.
at
80
and attach the accessory
parallax
correction plate
(packed
with the lens)
to the
hood.
(Fig.
g)
