Design and Function
MAN-Industrial diesel engines D2842 LE103
29
Carefully read the Operating Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.

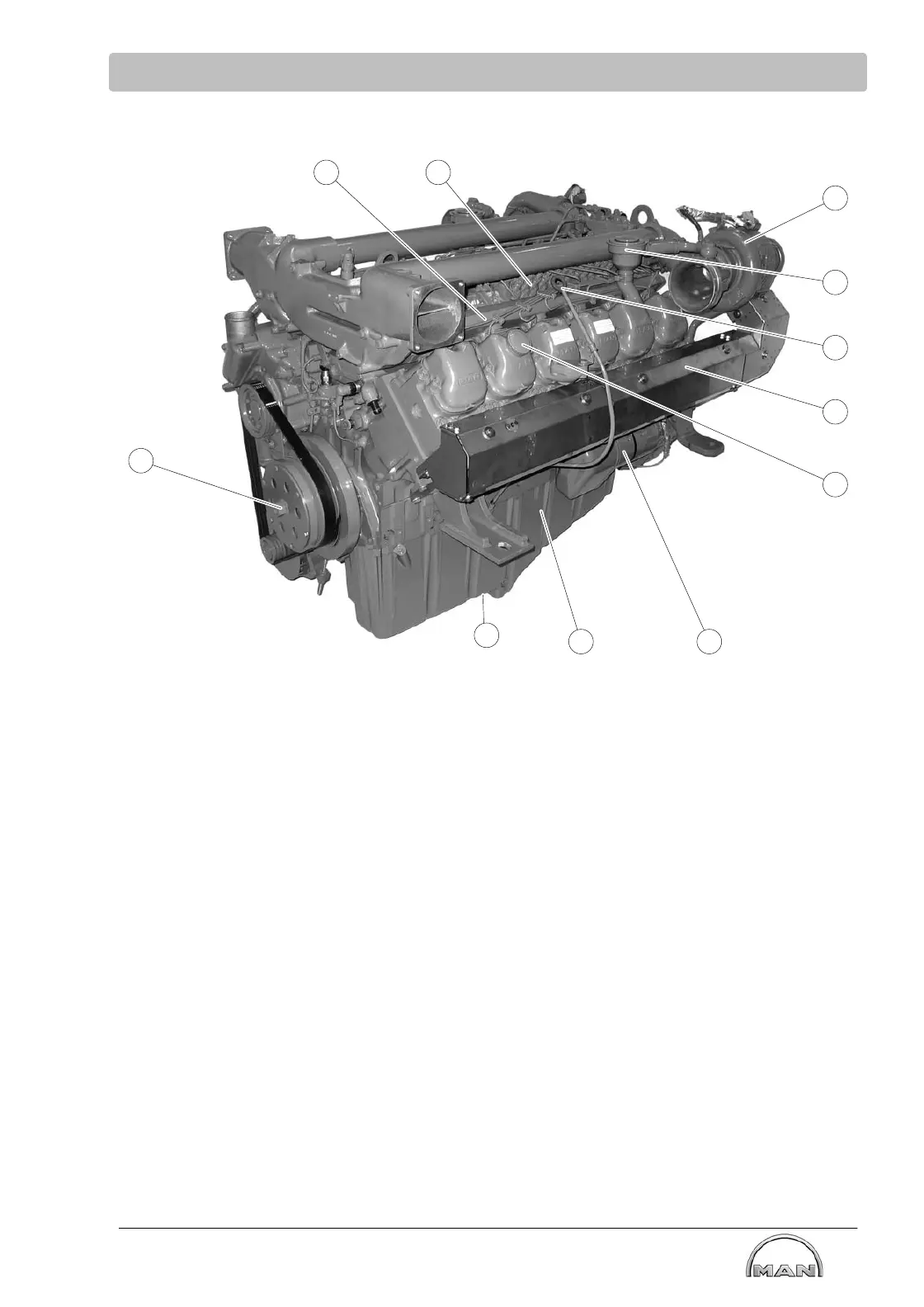

4.2.2 Front Left View
1
2
3
4
5
67
8
9
10 11
(1) Turbocharger
(2) Oil separator valve for crankcase ventilation
(3) Oil dipstick
(4) Exhaust pipe
(5) Oil filler neck
(6) Starter
(7) Oil pan
(8) Oil drain plug
(9) Engine barring gear
(10) Intake manifold
(11) Injection pump
