Please note: 5 cyl. only for GenSet

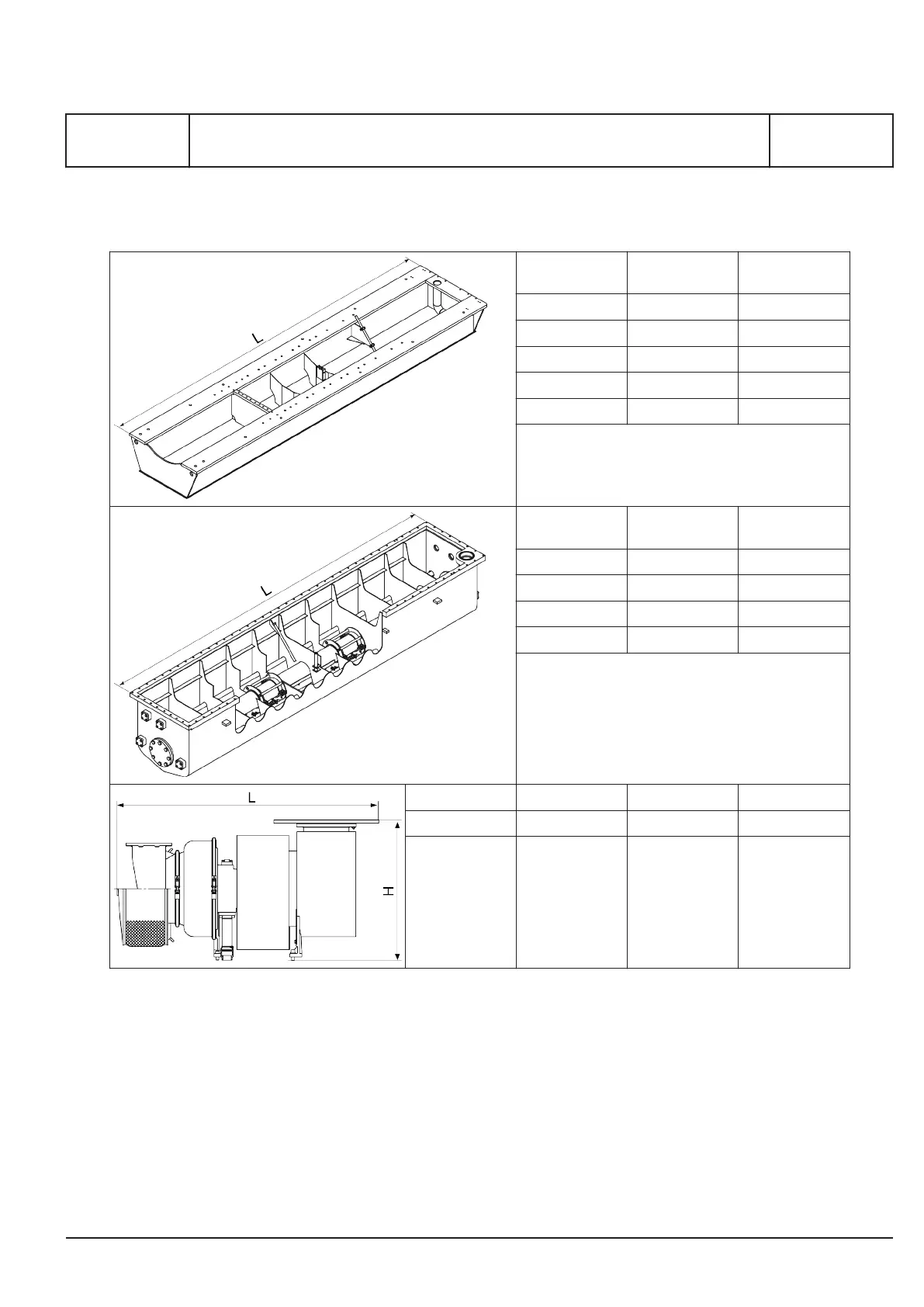

Base frame
for GenSet
Length (L)* [mm]
one/two bearing
Weight [kg]
one/two bearing
5 cyl. 5245/ - 5121 / -
6 cyl. 6168/6868 5500/6300
7 cyl. 6800/7500 5687/6583
8 cyl. - /8100 - /7100
9 cyl. - /8700 - /7600
Width: 1770 mm
* Depending on alternator type
Oil pan
for propulsion
Length (L)* [mm] Weight [kg]
6 cyl. 3367 1186
7 cyl. 3812 1320
8 cyl. 4251 1587
9 cyl. 4702 1720
Width: 1370 mm
Turbocharger Length (L) [mm] Height (H) [mm] Weight (kg) [mm]
TCR18 1328 772 460
TCR20 1661 953 780
Please note: 5 cyl. only for GenSet
MAN Diesel & Turbo
1689476-6.4
Page 3 (5)
Weight and dimensions of principal parts
E 23 00 0
L27/38S, L27/38
2015.12.07 - Tier II, stationary
