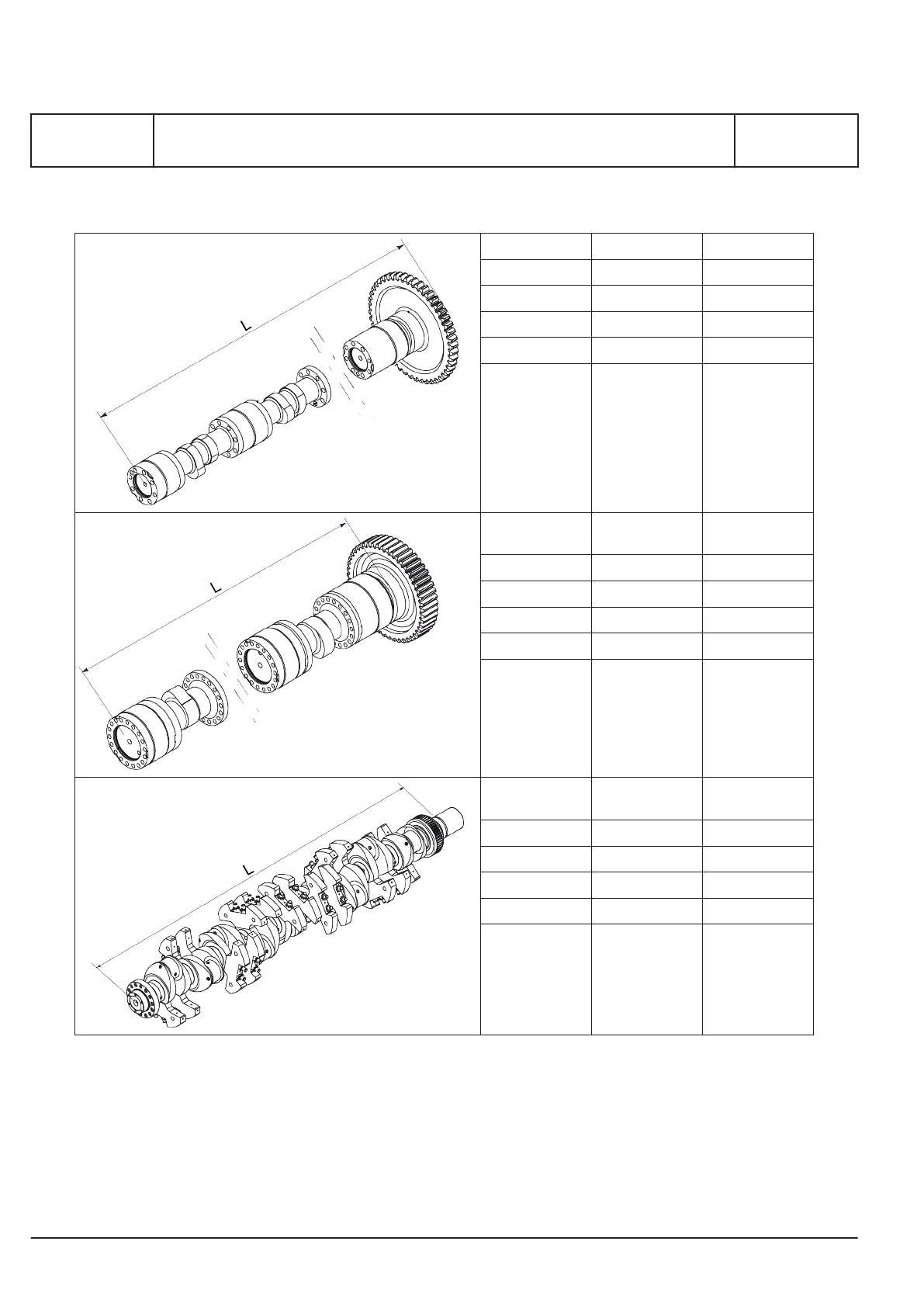

Valve camshaft Length (L) [mm] Weight [kg]
5 cyl. 2378 376
6 cyl. 2823 427
7 cyl. 3268 477
8 cyl. 3713 528
9 cyl. 4158 579
Injection cam-
shaft
Length (L) [mm] Weight [kg]
5 cyl. 2570 455
6 cyl. 3015 528
7 cyl. 3460 601
8 cyl. 3905 674
9 cyl. 4350 747
Crankshaft with
counter weights
Length (L) [mm] Weight [kg]
5 cyl. 2920 2755
6 cyl. 3365 3145
7 cyl. 3810 3585
8 cyl. 4255 4030
9 cyl. 4700 4475
Please note: 5 cyl. only for GenSet
MAN Diesel & Turbo
E 23 00 0
Weight and dimensions of principal parts
1689476-6.4
Page 4 (5)
L27/38S, L27/38
2015.12.07 - Tier II, stationary
