5.3 Multi Purpose Controller (MPC)
The switch box for the engine control system is designed for installation in
the engine room. It is to be mounted on a wall, preferably near other switch
boxes of the engine control system.

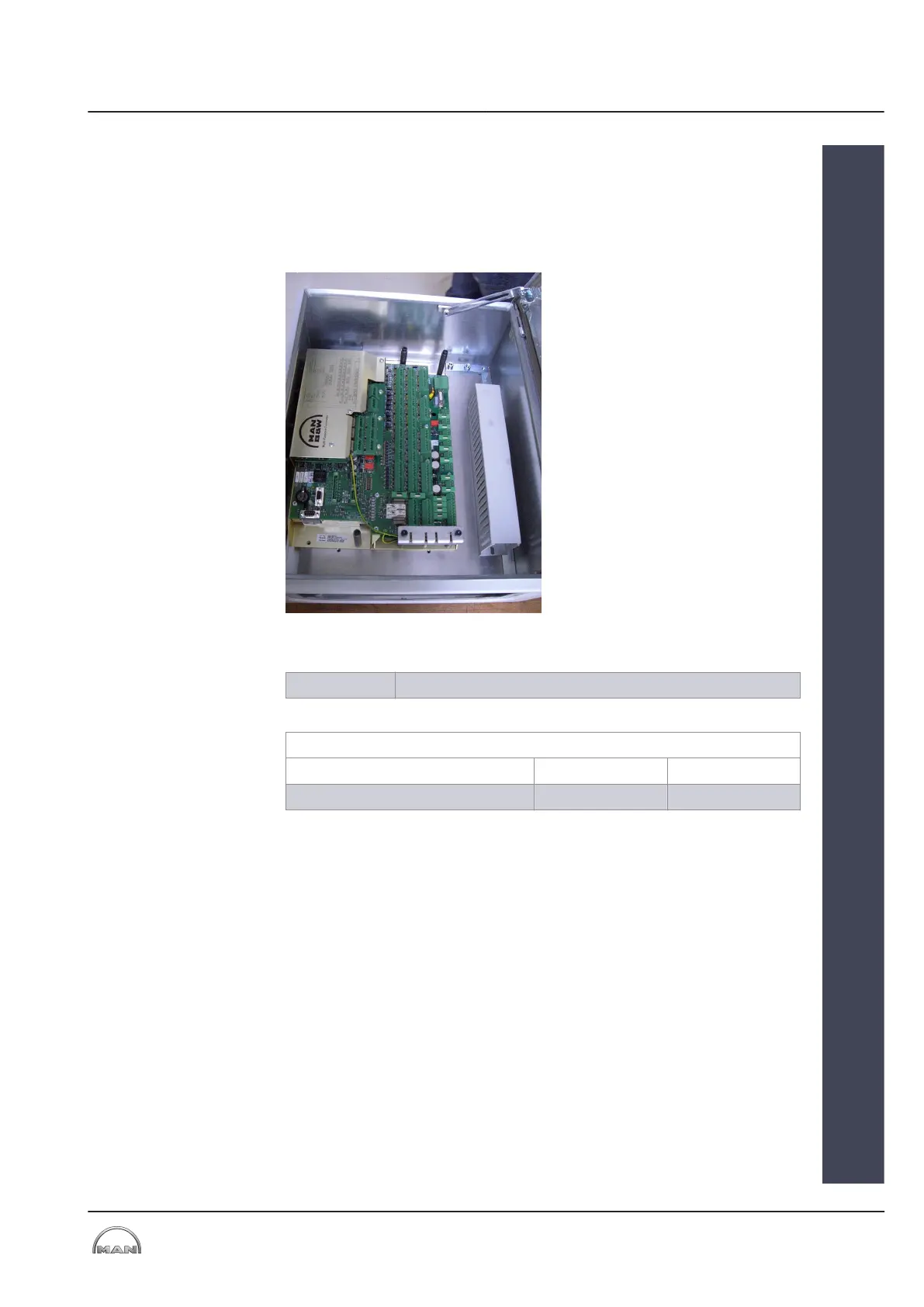

Figure 17: Switch box for wall mounting – MPC
TIP The switch box must be accessible for inspection.
Dimensions in mm
Switch box Width Height
Multi-purpose controller (MPC) 400 500
Table 15: Main dimensions of the switch box – multi-purpose controller (MPC)
5.4 Main Operating Panel (MOP)
The main operating panel (MOP) consists of a monitor, a computer and a
keyboard. The computer, keyboard and monitor are designed for installation
in the engine control room.
Clearance to other peripheral devices
Around the PC, on both short sides and the cover, there must be 50 mm
clearance to the nearest component in order to enable sufficient air convec-
tion.
Clearance to the wall
Throughout the area behind the PC, there must be 150 mm clearance to the
nearest component in order to be able to accommodate connectors and
cables.
Personal computer (PC)
2013-12-04 - de
5 Engine room planning
5.4 Main Operating Panel (MOP)
MAN Diesel & Turbo
5
EN-US
25 (38)
