Mangar ELK - Connecting the 4-way Hand Control and Airflo

5
ME0117 issue 4
• Replace the stability bar and ret the end cap
(g. 8).
Connecting the 4-way Hand Control and Airo

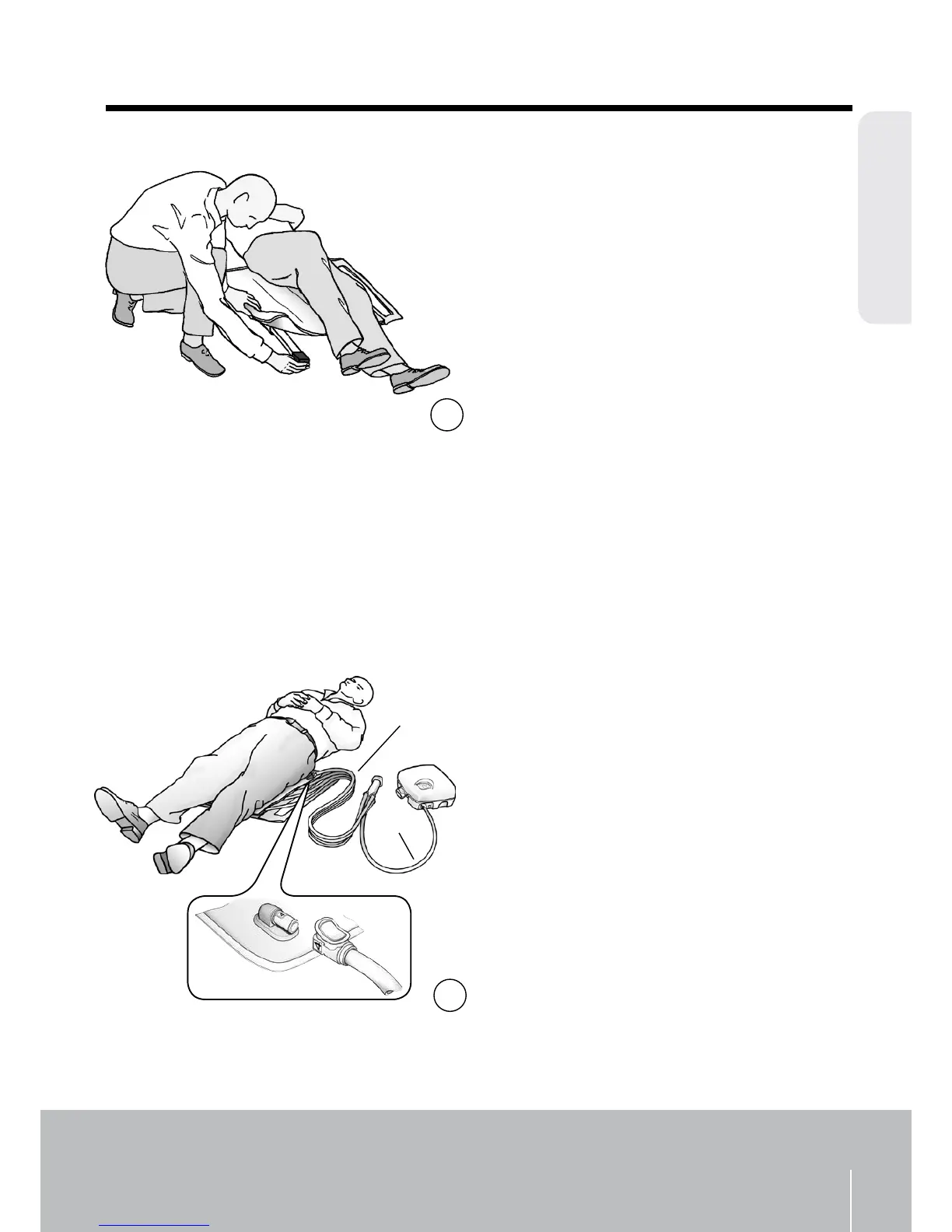

• Connect the four distribution hoses (C g.9)
from the 4-Way Hand Control to the four
connectors on the ELK (g.9 inset). The ends
of the hoses are colour coded and numbered to
match the corresponding ELK connectors (No.
4 is the top compartment; No.1 the bottom).
Note: If the fallen person is very large, it is
recommended to connect the compressor and
the hand control before the person is rolled
onto the Elk.
• Position the Airo compressor at the side of the
ELK ensuring that it will not be in the way while
lifting and supporting the patient.
• Connect the hose (D g. 9) from the 4-Way
Hand Control to the air outlet socket on the
Airo compressor and SELECT THE ‘AUTO’
FUNCTION ON THE AIRFLO COMPRESSOR.
TO ACTIVATE THE ‘AUTO’ FUNCTION, PRESS
AND HOLD THE ‘AUTO’ BUTTON UNTIL
IT’S L.E.D. LIGHTS UP (see separate - Airo
instructions).
C
D
English
8
9
