Manhattan 179195 User Manual

6

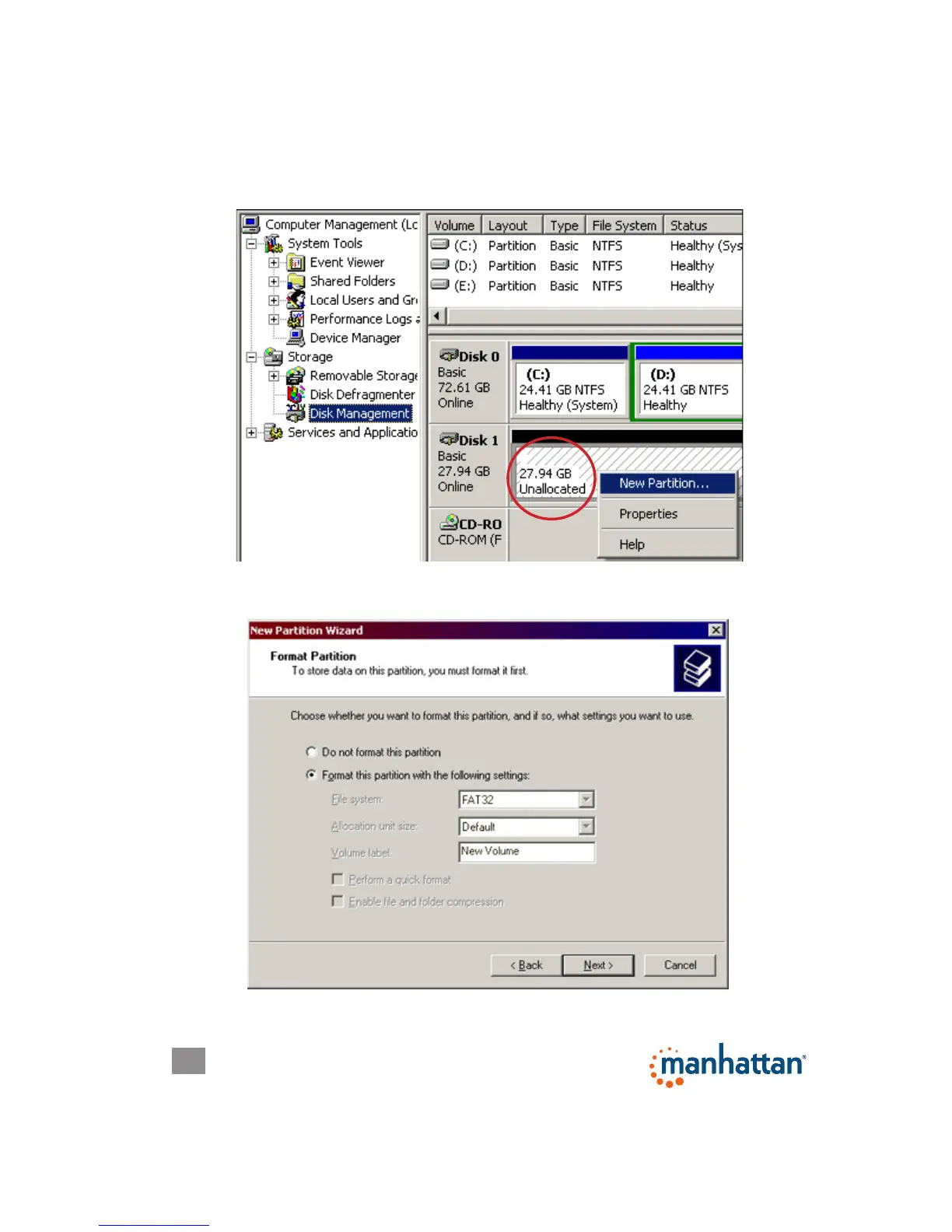

2. In the left-hand le directory, click/select “Disk Management” so its screen
displays on the right. Right-click on the disk identied as “Unallocated,” then
click/select “New Partition...” from the pop-up menu. NOTE: To conrm that the
drive you’ve placed in the enclosure is indeed the unallocated disk, disconnect
the USB cable and see if the corresponding “Unallocated” text disappears.
3. With the Format Partition screen displayed, select your preferred settings, then
click “Next” to continue.

Manhattan 179195 Specifications

Power

input voltage	100 – 240 V AC
frequency	50/60 Hz
output	12 V / 2 A

Ports & Interfaces

usb ports	USB 2.0 Standard-A male
sata ports	SATA L-type male
ide ports	IDE 40-pin; IDE 44-pin

Weight and Dimensions

dimensions	9.8 x 7 x 1.8 cm
cable lengths	USB, 80 cm; 4-pin power, 10 cm
weight	270 g
