Perform the operations described above as well as the following operations.
B1 - Air filter cartridge
CLEAN
- Open the drain valve every week in normal operating conditions and every day in dusty
operating conditions to remove large particles of dust and debris.
- When the red signal on the dust indicator attached to the air filter reaches the service level,
immediately clean the filter element and then reset the signal to the original position using
the “RESET” button.
- Reduce the intervals when working in a very dusty atmosphere.
- Because the type of filter element used on this engine is dry, never apply any oil to it.
- Open the drain valve once a week in normal operating conditions and once a day in dusty
operating conditions to eliminate any large particles of dust or dirt.
- Wipe the inside of the air filter with a clean dry cloth.
- Avoid touching the filter element except during cleaning.
- When there is dust adhering to the element, vent compressed air from inside the element while
turning the element. The pressure of the compressed air must be less than 205 kPa (2.1 Kgf/
cm²).
- Ensure that the wing bolt for the element is tight enough. If it is loose, dirt and dust can be
sucked in, causing premature wear to the cylinder lining and the piston segments.
B2 - Radiator core
CLEAN
- If there is any dust between the fins and the water pipes, wash it away with running water.
B3 - Level of electrolyte in the battery
CHECK
- Check the electrolyte level in each battery element.
- If the ambient temperature is high, check the level more often than every 50 hours of operation.
Manipulating and servicing a battery can be dangerous operations; take the following precautions:
-
Wear safety goggles.
- Keep the battery ’horizontal while manipulating it.
- Never smoke or work close to a naked flame.
- Work in a sufficiently well-ventilated area.
- If any electrolyte should splash on your skin or in your eyes, rinse the affected area thoroughly with cold water for 15
minutes and call a doctor.

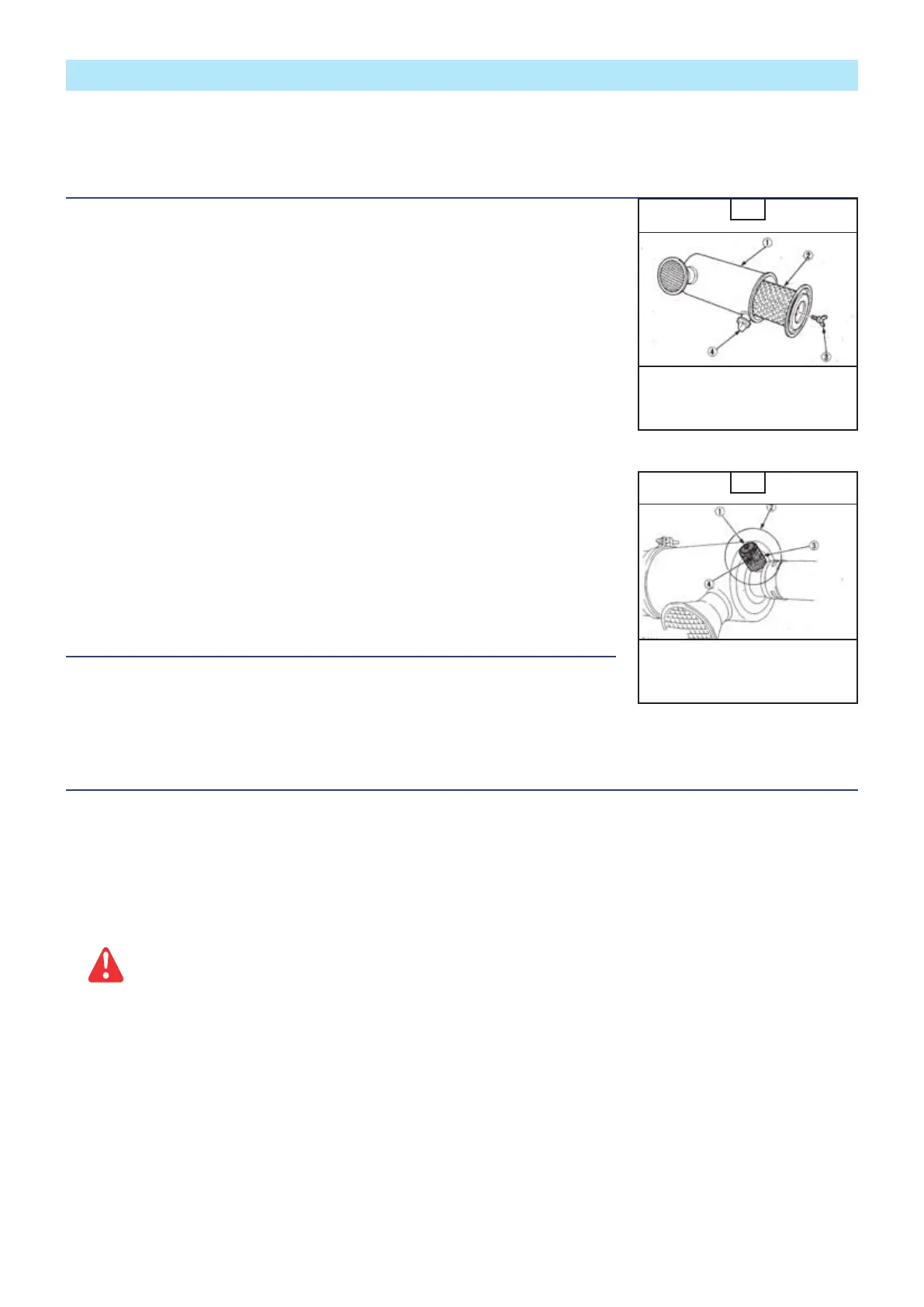

B1
B1
1- Air filter body
2- Element
3- Wing bolt
4- Evacuation valve
1- “Reset” button
2- Dust indicator
3- Service level
4- Signal
B EVERY 50 HOURS OF OPERATION
647367 (01/03/2017)
100/120 SC-2 / 140 SC
