2-26
BASKET CONTROL INSTRUMENTATION

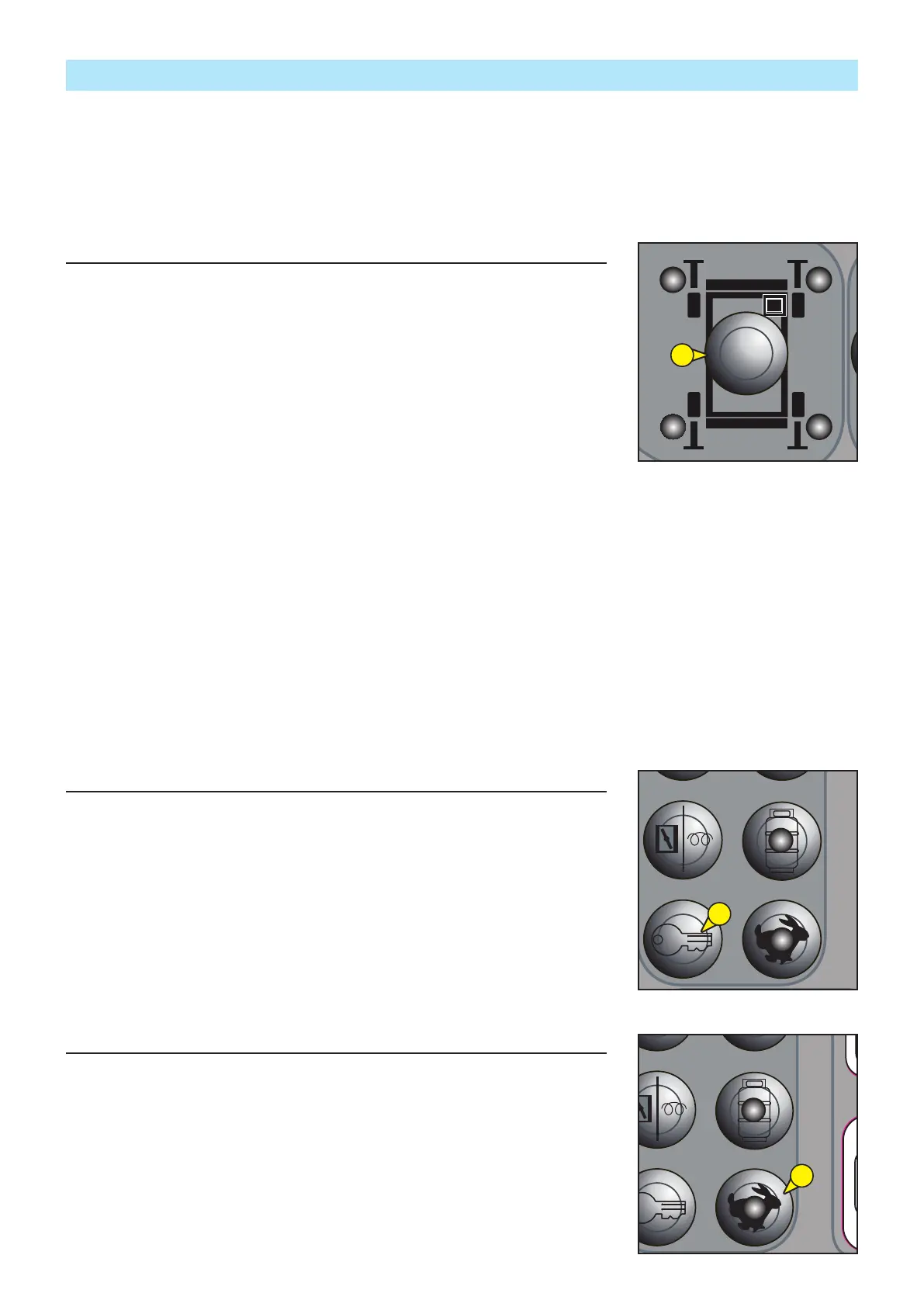

16- AUTOMATIC STABILISER LEVELLING BUTTON
- Push and hold the auto level button Rep.16.
- Activate the up/down rocker switch in the down direction.
- Result: The outriggers should extend and level the machine. A beep will sound when the
machine is level.
- The indicator lights on the outrigger LED will be green.
- Push and hold the auto level button.
- Activate the up/down rocker switch in the up direction.
- Result: The outriggers should retract and return to the stowed position.
- The indicator lights on the outrigger LED will be red.
17- ENGINE STARTER BUTTON
- Press this button to start the engine.
18- ENGINE SPEED SELECTOR, WITH INDICATOR
Press this button to select the engine speed.
• Indicator light unlit: low idle speed
• Indicator light lit: high idle speed
AUTO
LEVEL
16
17
18
647367 (01/03/2017)
100/120 SC-2 / 140 SC
