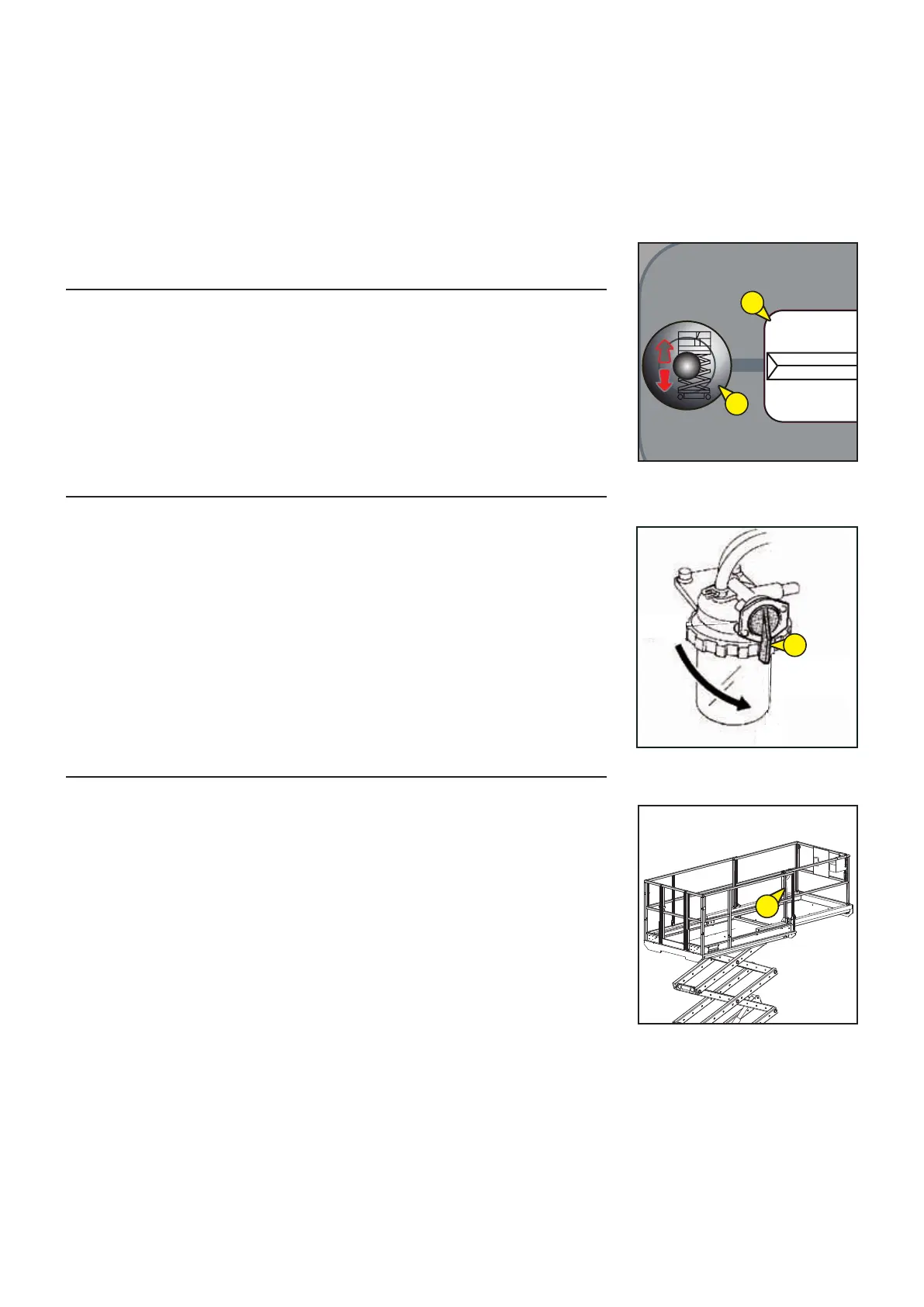

31- PROPORTIONAL REVERSER FOR RETRACTING/EXTENDING THE STABILISERS AND RAISING/
LOWERING THE PLATFORM
- When the confirmation light for the individual stabilisers is lit (16), push the thumb switch
(31A) up to retract the stabiliser. Push the thumb switch down to extend the stabiliser.
- When the lifting confirmation button’s indicator light is lit (31B), push the thumb switch (31A)
up to raise the platform. Push the thumb switch down to lower the platform.
- The descent alarm must sound when the machine is descending.
32- DIESEL CIRCUIT OPEN/SHUT TAP
- Open the diesel tap before starting the engine.
33- EXTENSION ET RÉTRACTION DE LA NACELLE
- Raise the platform extension locking lever to the horizontal position.
- Push the handle until the platform is extended to the desired position.
- Do not lean on the extension while it is deploying.
- Lower the platform extension locking lever.
33
31A
31B
32
647367 (01/03/2017) 100/120 SC-2 / 140 SC
