Manitou MC 60 Turbo POWERSHIFT Serie 3-E3 User Manual

2-71

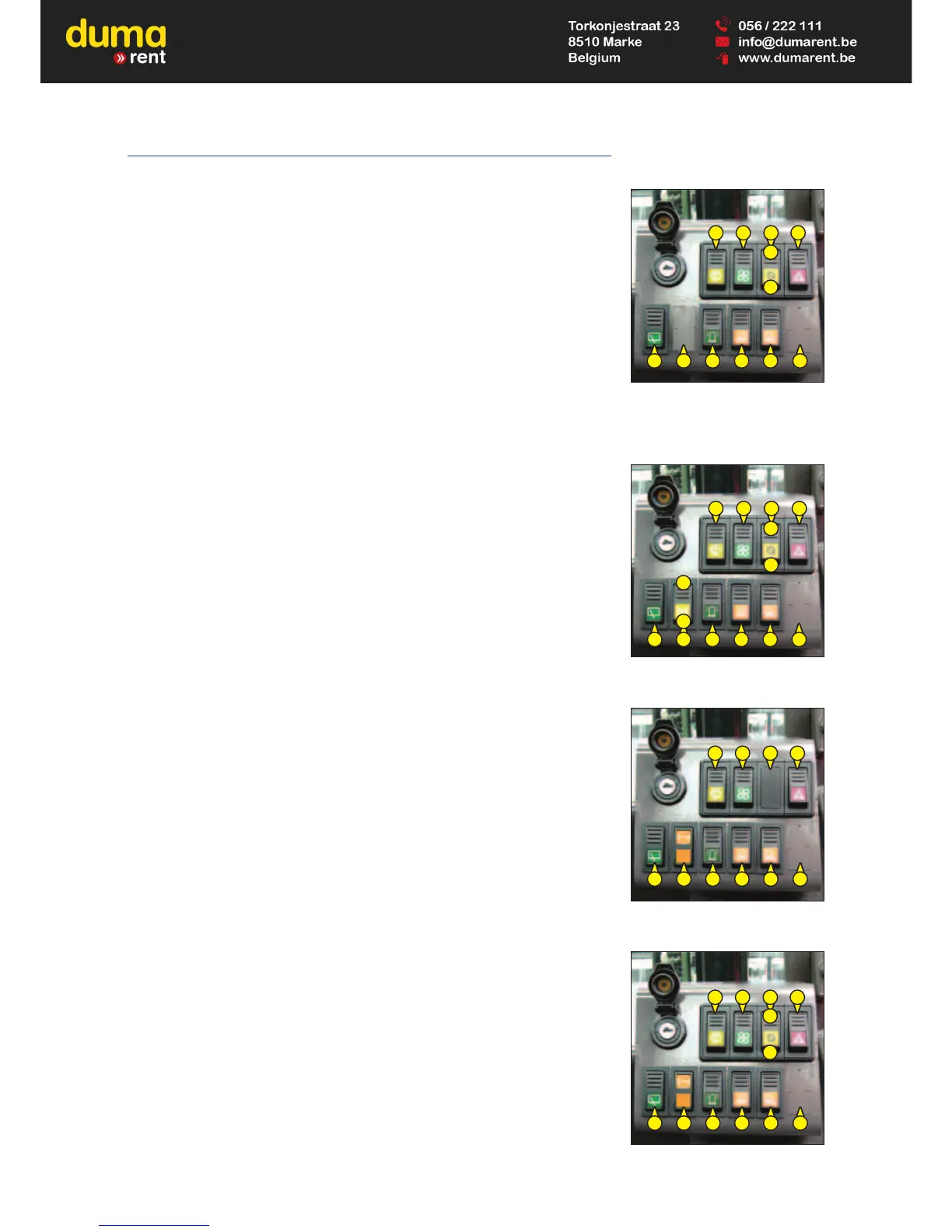

4 - SWITCHES
NOTE: The location of the switches may vary depending on the options.
A - FRONT WINDSCREEN WIPER AND WINDSCREEN WASHER
This switch, when set to the “intermediate” position, the windscreen wiper to be operated and the
“down” position and simultaneously pressed, the windscreen-washer to be operated.
B - HEATING FAN
Optional for MC 30 Série 3-E3
This two speed switch allows warm or cold air to pass through the heating ventilators.
C - TRANSMISSION CUT-OFF
MC 30 Turbo Série 3-E3 M 26-2 Turbo Série 3-E3 M 26-4 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3 M 30-4 Turbo Série 3-E3
M 40-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3
The switch selects transmission cut-off to the service brake pedal.
Position 1: Indicator light on, transmission cut-off to service brake pedal effected.
Position 2: Indicator light on, transmission cut-off to service brake pedal effected.
NOTE: In all cases transmission cut-off can be effected using the gear lever.
C - OPTION
MC 40 Turbo POWERSHIFT Série 3-E3 MC 50 Turbo POWERSHIFT Série 3-E3
C - TRANSMISSION CUT-OFF
MC 60 Turbo POWERSHIFT Série 3-E3 MC 70 Turbo POWERSHIFT Série 3-E3
The switch selects transmission cut-off to the service brake pedal.
Position 1: Indicator light on, transmission cut-off to service brake pedal effected.
Position 2: Indicator light on, transmission cut-off to service brake pedal effected.
D - WARNING LIGHTS
Optional for MC 30 Série 3-E3
This switch enables the L.H. and R.H. Indicators to be switched on simultaneously,
with the ignition off. The signal light indicates that the switch is being used.
E - REAR WINDSCREEN WIPER + OPTIONAL ROOF WINDSCREEN WIPER
Optional for MC 30 Série 3-E3
F - OPTION
MC 30 Turbo Série 3-E3 M 26-2 Turbo Série 3-E3 M 30-2 Turbo Série 3-E3
F - REAR AXLE CLUTCH
M 26-4 Turbo Série 3-E3 M 40-4 Turbo Série 3-E3
M 30-4 Turbo Série 3-E3 M 50-4 Turbo Série 3-E3
This switch allows the lift truck to be used in two- or four-wheel drive mode.
- 2-Wheel drive: Switch in position 1, indicator light off.
- 4-Wheel drive: Switch in position 2, indicator light on.
F - DIFFERENTIAL LOCK INDICATOR LIGHT
MC 40 Turbo POWERSHIFT Série 3-E3 MC 60 Turbo POWERSHIFT Série 3-E3
MC 50 Turbo POWERSHIFT Série 3-E3 MC 70 Turbo POWERSHIFT Série 3-E3
This orange indicator light comes on when you press on the differential lock push-button switch.
G - REVOLVING LIGHT OPTION
H - FRONT WORK LIGHT OPTION
I - REAR WORK LIGHT OPTION
J - OPTION
M 26-4 Turbo Série 3-E3
M 40-4 Turbo Série 3-E3
M 30-4 Turbo Série 3-E3
M 50-4 Turbo Série 3-E3
A B C D
J
IH
GF
E
1
2
1
2
MC 40 Turbo POWERSHIFT Série 3-E3
MC 50 Turbo POWERSHIFT Série 3-E3
A B C D
J
IH
GF
E
A B C D
J
IH
GF
E
1
2
MC 60 Turbo POWERSHIFT Série 3-E3
MC 70 Turbo POWERSHIFT Série 3-E3
A B C D
J
IH
GF
E
1
2
MC 30 Turbo Série 3-E3
M 26-2 Turbo Série 3-E3
M 30-2 Turbo Série 3-E3
647003 EN (03/01/2012)
