2-72
5 - HORN SWITCH
MC 30 Turbo Série 3-E3

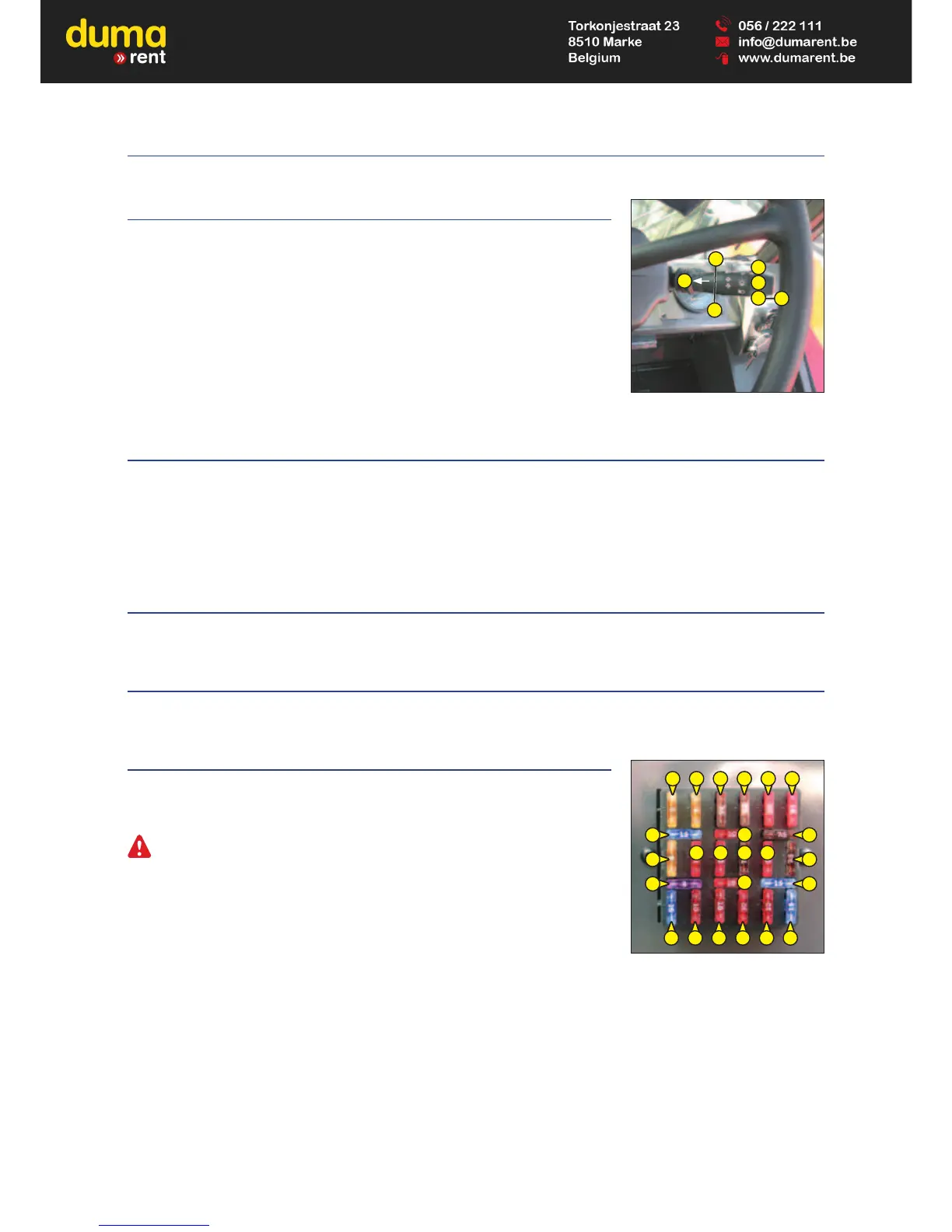

5 - LIGHTS, HORN AND INDICATOR SWITCH
Optional for MC 30 Série 3-E3
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE: The positions D - E - F - G can be carried out without the ignition being on.
6 - IGNITION SWITCH
The key switch has five positions:
P - Ignition off, parking position.
O - Ignition switched off and I.C. engine stopped.
I - Ignition on.
II - Heating.
III - The I.C. engine starts, return to position I as soon as the key is released.
7 - BRAKING OIL TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
8 - WINDSCREEN WASHER TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
9 - FUSES AND RELAYS IN THE CAB
*: Optional for MC 30 Turbo Série 3-E3
- Remove the casing to access fuses F1 to F24.
Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been repaired.
F1 - Light switch power supply, horn and indicators (15A). *
F2 - Hazard warning lights power supply (10A). *
F3 - Rear windscreen wiper (10A). *
- OPTION Roof windscreen wiper (10A).
F4 - OPTION Working tail light (10A).
F5 - OPTION Front working head light (10A).
F6 - Heating (15A). *
F7 - Control panel (5A).
F8 - Front windscreen wiper and windscreen-washer (10A).
F9 - Indicator power supply (10A). *
F10 - Forward/reverse selector (10A).
- Transmission cut-off (10A).
- OPTION Reversing lights (10A).
- OPTION Audible reversing alarm (10A).
F11 - Sound alarm (10A).
- Stop switch (10A).
F12 - OPTION Revolving light (7,5A).
F13 - Right sidelight (5A). *
- Sidelight indicator light (5A). *
- Control panel lighting (5A). *
D
F
C
B
E
A
G
F13
F1 F2 F3 F4 F5 F6
F14 F15 F16 F17 F18
F22
F7
F19
F24
F12
F21
F8 F9
F10 F11
F23
F20
647003 EN (03/01/2012)
