Manitou MHT 7140 T-E3 User Manual

2-34

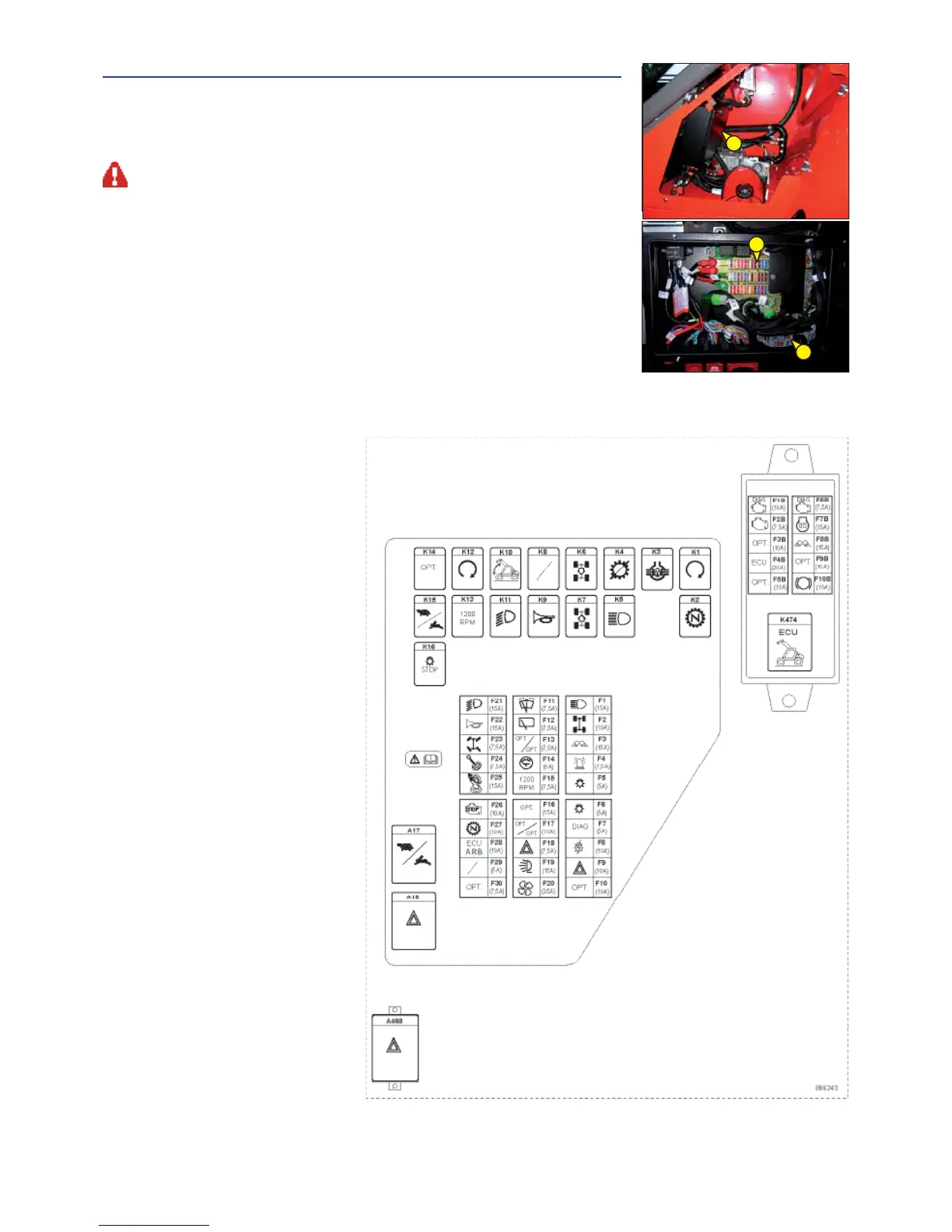

11 - FUSES AND RELAYS IN THE CAB
Remove the door that provides access to the fuses and relays 1
NOTE: A sticker on the inside of the access panel gives a clear display of the use of the
components described below.
Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been repaired.
A17 – Slow-fast relay
A18 - Warning relay.
A468 - Relay services
F1 - Headlights (15A).
F2 -
Axles alignment power supply(10A)
F3 - Rear
work lights (15A)
F4 - Rotating lamp (7,5A).
F5 -
Position lights (5A)
F6 -
Position lights (5A)
F7 - +15 /
diagnostics power supply (5A).
F8 -
Light switch/rear fog lights power supply (10A).
F9 - +30 / warning (10A).
F10 - +30 / Radio/ antitheft (10A).
F11 -
anterior windshield wiper switch (7,5A).
F12 -
rear windshield wiper power supply (7,5A).
F13 - pneumatic seat / radio (7,5A).
F14 - Siège micro /
indicator lights and
instruments (5A).
F15 - Valve 1200 RPM (7,5A).
F16 - +15 OPTIONAL (15A)
F17 - OPTION 2°/3° predispositions
Hydraulic (10A).
F18 - +15 warning (7,5A)
F19 -
boom work lights (15A)
F20 - ventilation /
heating (55A)
F21 - Low beams (15A).
F22 -
Horn (15A).
F23 - Steering sector (7,5A).
F24 - Boom
hydraulic movements (7,5A).
F25 - Joystick (J.S.M.) (15A).
F26 -
mushroom-shaped emergency
pushbutton (10A).
F27 - Neutral gear (10A).
F28 - Longitudinal stability limiter and warning
device (10A)
F29 - +15 antitheft (5A).
F30 - + 15 / predisposition (7,5A)
K1 - Consensus start relay
K2 - Neutral gear relay
K3 - Central differential block relay
K4 -
Transmission cut off relay
K5 - Headlights relay
K6 -
Reverse movement relay
K7 - Forwards movement relay
K8 - Option
K9 - Horn relay
K10 - Boom
hydraulic movements relay
K11 - Low beams relay
K12 - Engine consensus
K13 - Valve 1200 RPM relay
K14 - Option
K15 - Change gear relay
K16 -
Brake light relay
F1B - +30 engine electronic
F2B - +30 Engine diagnostic
F3B - +30 Radio
F4B - +15
Lift-truck electronic system
F5B - +30 Basket OPTION
F6B - +15 Engine diagnostic
F7B - +15 Fuel filter pre-heating
F8B - +15 Front work lights
F9B - +15 Basket
F10B - +15 Emergency Brake (OPTION)
K474 - “VP” Lift-truck electronic system
