Manitowoc EC Series User Manual

1-5
Installation Instructions
Section 1

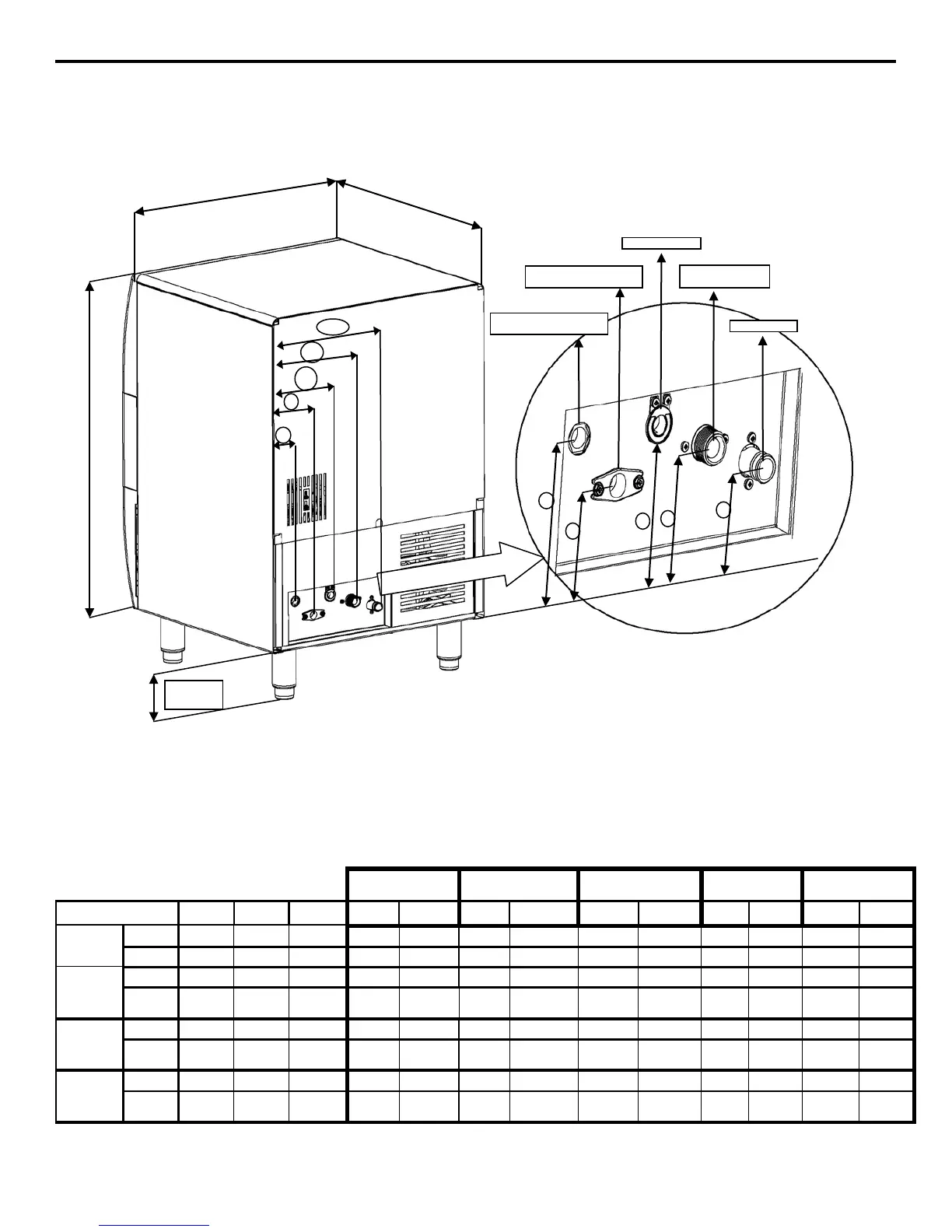

Dimensions
Condenser Water
Inlet
Condenser Water
Outlet
Potable Water Inlet Drain Electrical
MODEL
H
W
D
1
6
2
7
4
9
5
10
3
8
EC018
MM
635
343
420
NA
NA
NA
NA
63.5
88.9
50.8
140
76.2
38.1
INCH
25.0
13.5
16.5
NA
NA
NA
NA
2.5
3.5
2.0
5.5
3.0
1.5
EC020
&
EC030
MM
650
450
475
100.5
53.4
45.5
138.4
125.5
118.4
45.3
225
125.5
183.4
INCH
25.59 17.72 18.7 3.96 2.1 1.79 5.45 4.94 4.66 1.78 8.86 4.94 7.22
EC040
&
EC050
MM
800
550
550
108
77.5
68
123
87.5
221
68
275
108
168
INCH
31.5 21.65 21.65 4.25 3.05 2.68 4.82 3.44 8.71 2.68 10.83 4.25 6.59
EC065
&
EC080
MM
902
700
600
114.3
82.6
76.2
120.7
95.25
222.25
82.6
279.4
120.7
171.5
INCH
35.5 27.5 23.5 4.5 3.25 3.0 4.75 3.75 8.75 3.25 11.0 4.75 6.75
D
W
H
1
2
4
5
3
6
7
8
9
10
152.4 mm
(6in.)
ELECTRICAL
DRAIN
POTABLE WATER
INLET
WATER COOLED
CONDENSER INLET
WATER COOLED
CONDENSER OUTLET

Manitowoc EC Series Specifications

General

Brand	Manitowoc
Model	EC Series
Category	Ice Maker
Language	English
