Installation Instructions
Section 1
Water Service/Drains
WATER SUPPLY
Local water conditions may require treatment of the water to
inhibit scale formation, filter sediment, remove chlorine, and
improve taste and clarity.
WATER INLET LINES
Follow these guidelines to install water inlet lines:
• Do not connect the ice machine to a hot water supply. Be
sure all hot water restrictors installed for other equipment are
working. (Check valves on sink faucets, dishwashers, etc.)
• Water pressure to the machine should be between 1.4 to 5.5
bar (20 to 80 psi).
• If water pressure exceeds the maximum 5 bar recommended
pressure, obtain a water pressure regulator from your
Manitowoc distributor. Adjust pressure to 2.5 bar (37 psi).
• Install a water shut-off valve.
• Connect to a potable water supply only.
Important
If you are installing a water filter system, make sure that
you use a separate line for water-
cooled condenser.
Filter life will be greatly reduced if filtered water is used
for water-cooled condenser.
DRAIN CONNECTIONS
Follow these guidelines when installing drain lines to prevent
drain water from flowing back into the ice machine and storage
bin:
• Drain lines must have a 3.8 cm (1.5 inch) drop of run for
each meter (3 feet), and must not create traps.
• The floor drain must be large enough to accommodate
drainage from all drains.
• Run separate bin and water-cooled condenser drain lines.
Insulate them to prevent condensation
.

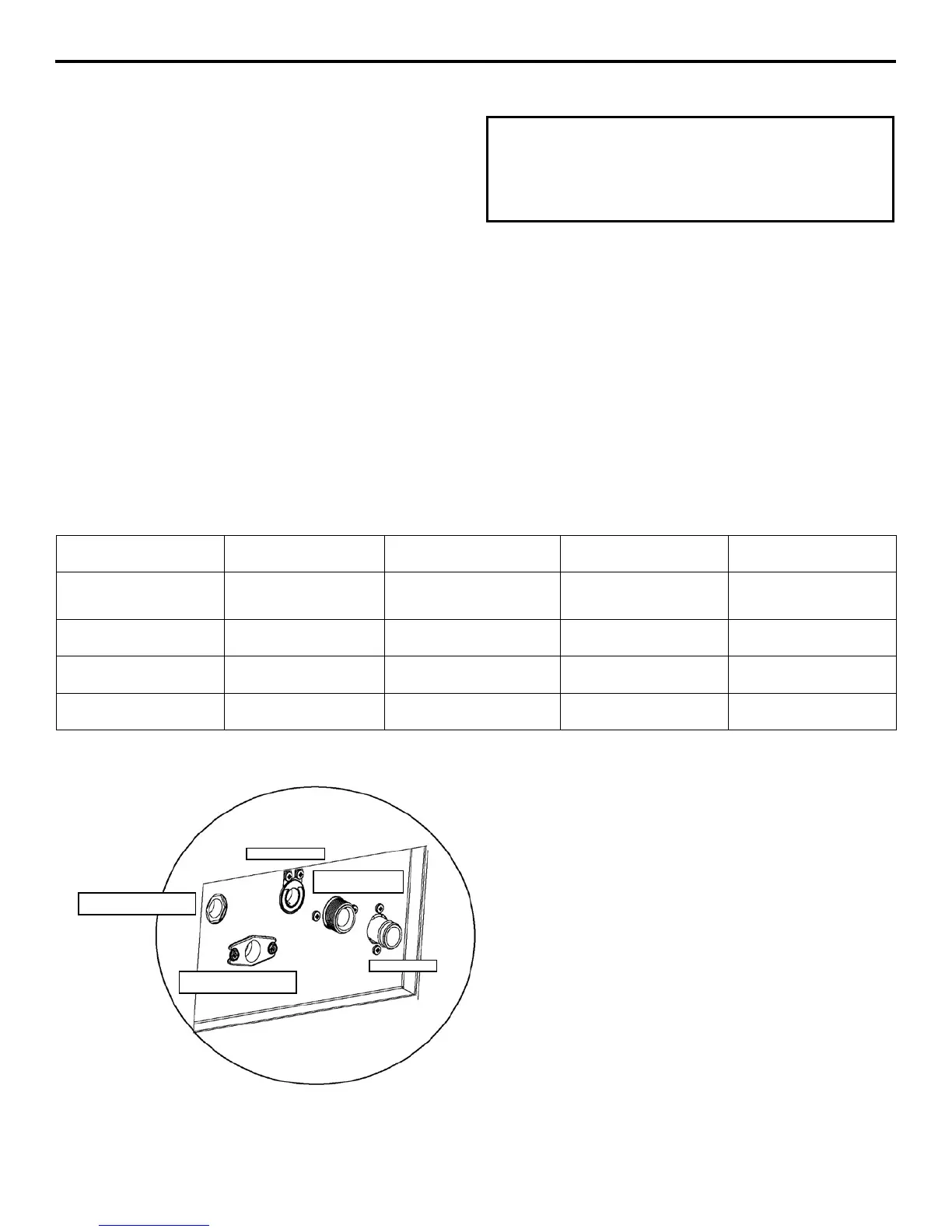

WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS
Water Temperature
Water
Pressure
Ice Machine
Fitting
Tubing Size Up to Ice
Machine Fitting
*Ice Making
Water Inlet
10ºC (50ºF) Min.
32ºC (90ºF) Max.
140 kPa (20 Psi) Min.
550 kPa (80 Psi) Max
3/4” Male Pipe
Thread
15mm (1/2”) Inside
Diameter Minimum
**Drain Connection
Outlet
-----
----- 7/8” Barb connection
18mm (3/4”) Minimum
Inside Diameter
Condenser Water Inlet
0.6ºC (33ºF) Min.
32.2ºC (90ºF) Max.
140 kPa (20 Psi) Min.
1030 kPa (150 Psi) Max
3/8” Female pipe
Thread
15mm (1/2”) Inside
Diameter Minimum
Condenser Water Outlet
----- -----
1/2” Female pipe
Thread
15mm (1/2”) Minimum
Inside Diameter
* Water inlet hose supplied with machine.
3/4” Female Pipe Thread/ 2 meters long.
** Drain hose supplied with machine.
7/8” (22.2mm) hose/ 2 meters long.
ELECTRICAL
DRAIN
POTABLE WATER
INLET
WATER COOLED
CONDENSER INLET
WATER COOLED
CONDENSER OUTLET
