MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 LUBRICATION GUIDE

ENGINE COMPONENTS

Item Description Required Service

1 Fuel Filer

See the Engine Manufacturer’s Manual (stored

in crane cab) for service intervals.

2 Fuel Pre-Filter/Water Separator with Drain Valve

3 Engine Oil Filter

4 Engine Oil Dipstick

5 Engine Oil Fill Cap

Engine Oil Drain Valve

An owner furnished drain hose can be connected to the drain valve.

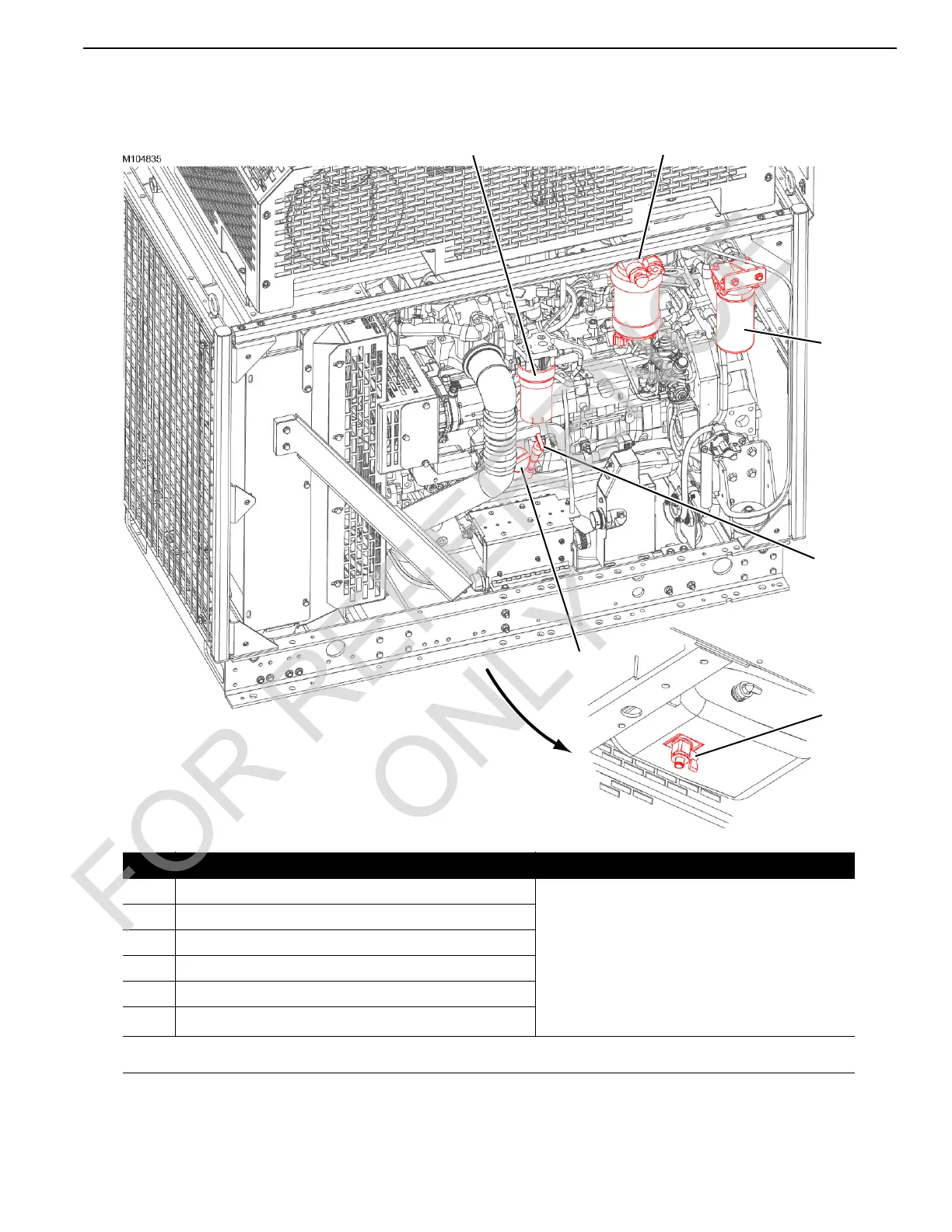

FIGURE 3

View at Right Rear Corner of Upperworks

FOR REFERENCE

ONLY

Table of Contents1
Lubrication Symbols2
General Lubrication2
Lubrication Intervals2
Over-Lubrication3
Lubrication Tips3
Water in Hydraulic Oil3
Oil Can Points3
Wire Rope Lubrication3
Cylinder Rod Lubrication4
Environmental Protection4
Reference Instructions4
Hydraulic Filter Replacement4
Lubrication Points4
Cranelube4
Approved Lubricants: Normal Factory Fill5
Approved Lubricants: Arctic Package Option5
Fluid Capacities6
Engine Components7
Upperworks and Lowerworks Lubrication8
- Prior to Use When Crane Is Assembled9
- Daily or Every 8 Hours of Engine Operation or (Whichever Comes First)9
- Weekly or Every 10 Hours of Function Operation or Every 20 Hours of Engine Operation (Whichever Comes First)11
- Weekly or Every 40 Hours of Engine Operation (Whichever Comes First)11
- After First 200 Hours of Engine Operation13
- Monthly or Every 40 Hours of Function Operation or Every 200 Hours of Engine Operation (Whichever Comes First)13
- Monthly or Every 200 Hours of Engine Operation (Whichever Comes First)13
- Quarterly or Every 500 Hours of Engine Operation or (Whichever Comes First)15
- Semi-Annually or Every 200 Hours of Function Operation or Every 1000 Hours of Engine Operation (Whichever Comes First)15
- Semi-Annually or Every 500 Engine Hours of Operation or (Whichever Comes First)15
- Semi-Annually or Every 1000 Engine Hours of Operation or (Whichever Comes First)15
- Yearly or Every 400 Hours of Function Operation or Every 2000 Hours of Engine Operation (Whichever Comes First)15
- Biennially or Every 2000 Hours of Engine Operation (Whichever Comes First)15
Boom Rigging Lubrication16
- Quarterly or Every 250 Hours of Engine Operation (Whichever Comes First)17
- Yearly or Every 2000 Hours of Crane Operation (Whichever Comes First)17
