National Crane Published 10-30-2014 Control # 040-09 4-7
1400H OPERATOR AND SERVICE MANUAL LUBRICATION
Outrigger Beam Lubrication
Recommended lubricant is EP-3MG grease.
1. Fully extend and set the outriggers. Refer to
(Figure 4-1.)
2. Apply grease to all wear pads and contact surfaces at
the side and bottom of all beam sections and lower
surface of the stabilizer/jacks with a suitable brush or
putty knife.
3. Extend and retract the outriggers several times until the
grease is evenly spread.
4. Repeat as necessary.

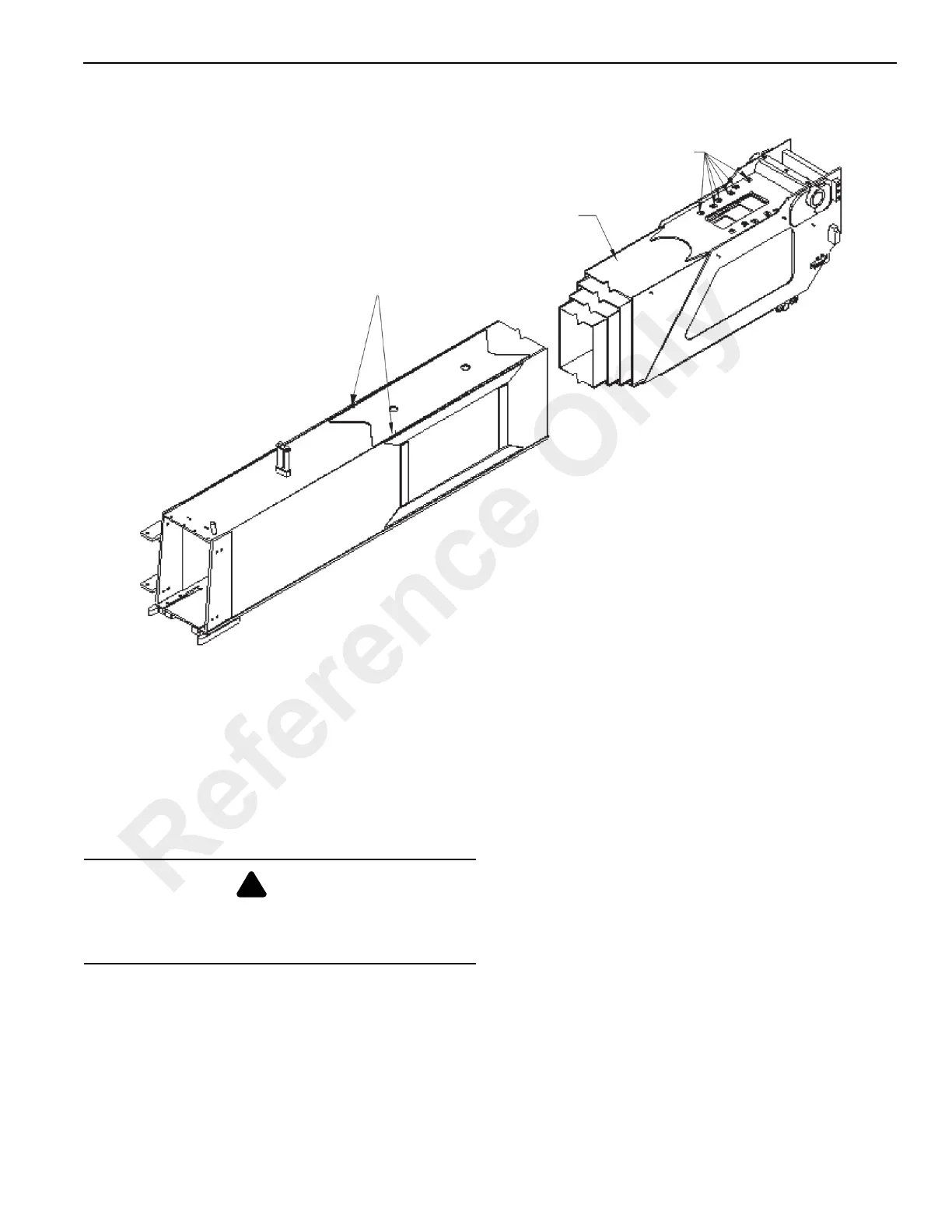

WEAR PAD
ACCESS HOLES
FIRST
SECTION
BOOM
GREASE ACCESS
HOLES
DANGER
Do not, under any circumstances, work at an elevated
height without using proper fall protection as required by
local, state or federal regulations.
