2-2
Installation Instructions Section 2

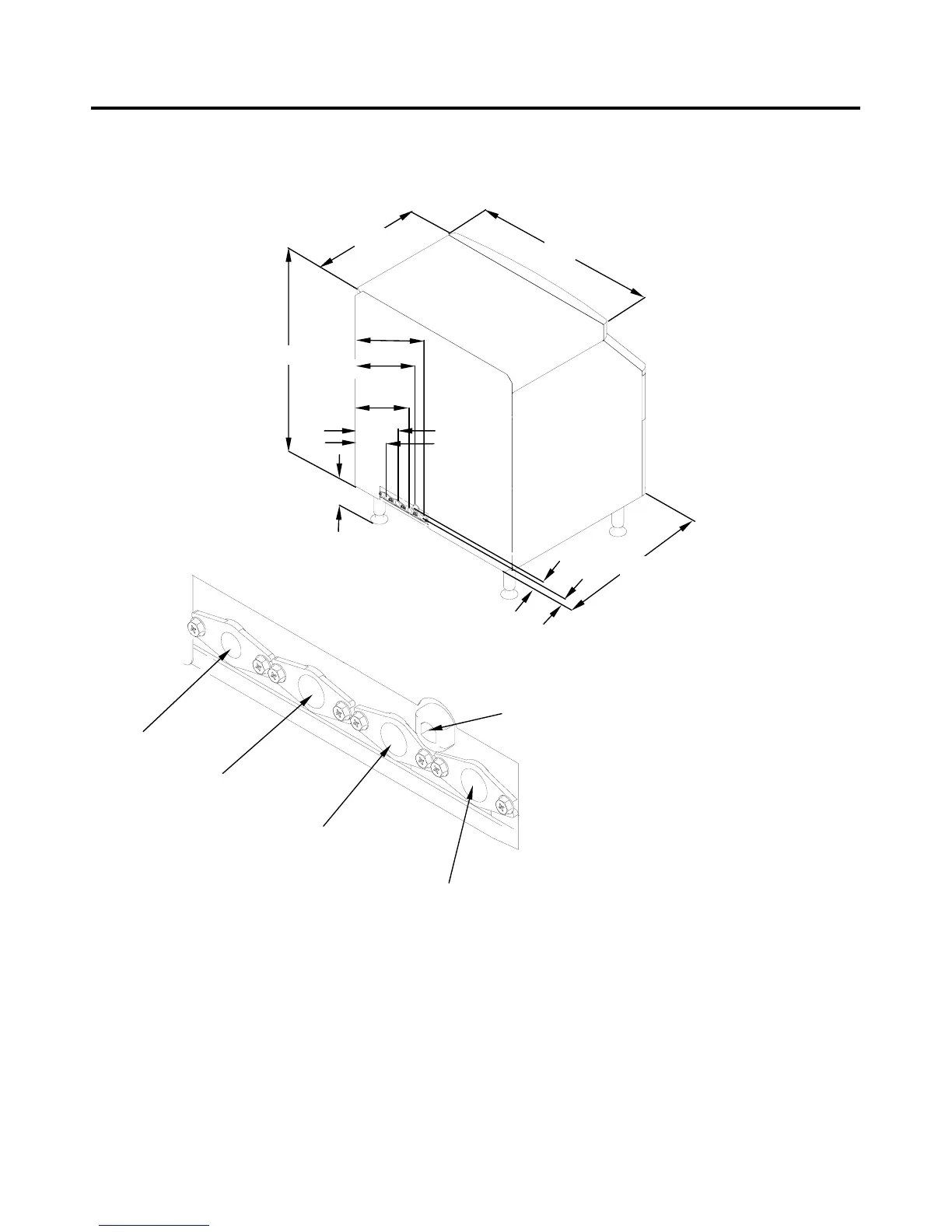

Ice Machine Dimensions
Q270 ICE MACHINES
28.16"
71.5CM
13.48"
34.2CM
12.36"
31.3CM
12.36"
31.3CM
8.80"
22.3CM
6.48"
16.4CM
32.50"
115CM
20.69"
52.5CM
30.0"
76.2CM
1.25"
3.1CM
2.12"
5.4CM
6.0"
15.2CM
ELECTRICAL
INLET
!/2" FPT
WATER COOLED
CONDENSER OUTLET
1/2" FPT
WATER COOLED
CONDENSER INLET
1/2" FPT
BIN DRAIN
3/8" FPT
ICE MAKING
WATER INLET
PT1294A
