Manitowoc Q130 series User Manual

4-3
Section 4 Maintenance

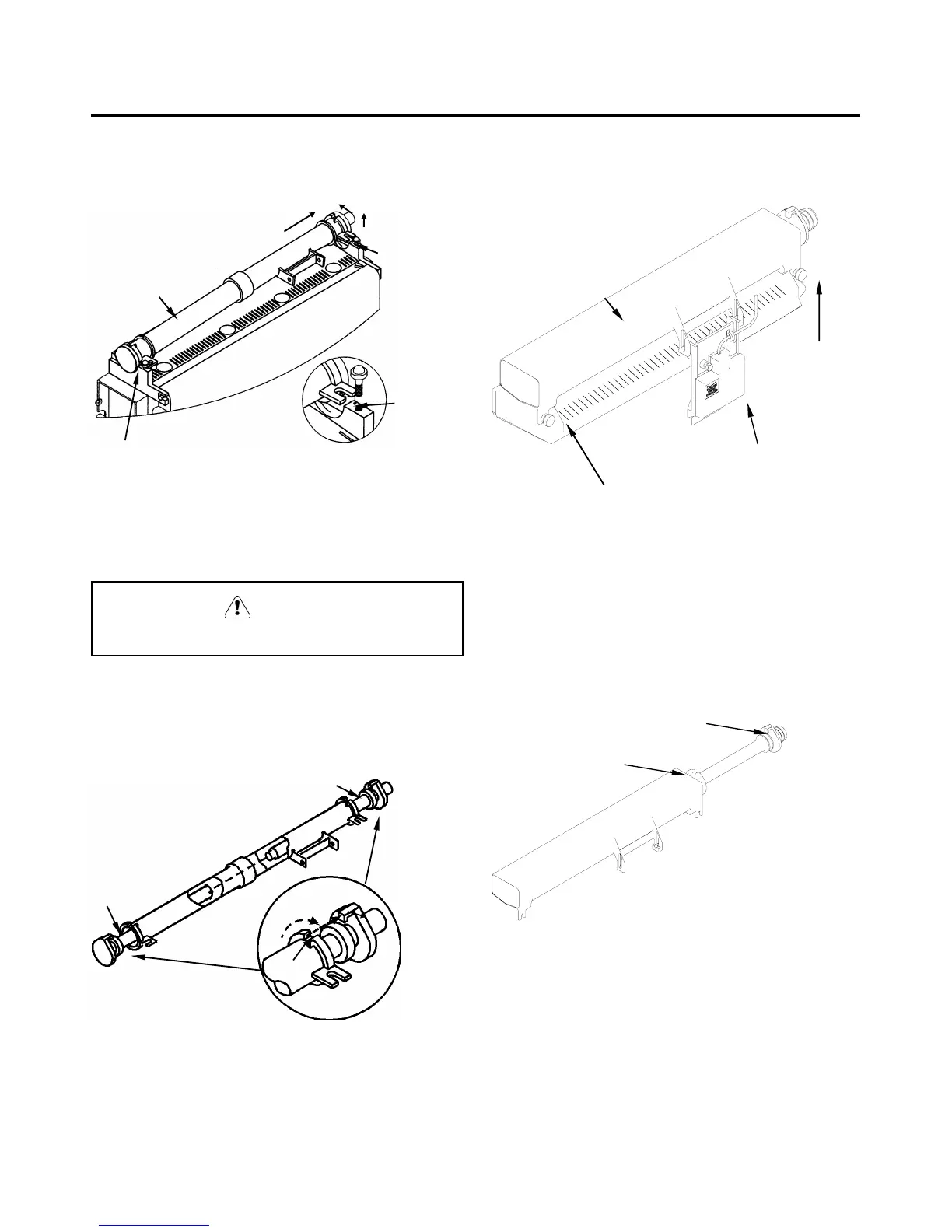

D. Remove the Water Distribution Tube
Q210/Q270 Models
Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure the
distribution tube.
• Lift the right side of the distribution tube up off
the locating pin, then slide it back and to the right.
CAUTION
Do not force this removal. Be sure the locating pin is clear of
the hole before sliding the distribution tube out.
Disassembly
• Twist both of the inner tube ends until the tabs
line up with the keyways.
• Pull the inner tube ends outward.
Water Distribution Tube Disassembly
Q130 Models
Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure the
distribution tube.
• Lift the distribution tube up off the thumbscrews.
Disassembly
• Twist the barbed end until the tab lines up with
the keyway.
• Pull the inner tube end outward.
SV1211
INNER
TUBE
INNER
TUBE
KEYWAY
TAB
1. LIFT UP
2. SLIDE BACK
3. SLIDE TO RIGHT
THUMBSCREW
DISTRIBUTION
TUBE
THUMBSCREW
1
2
3
SV127
LOCATING PIN
THUMBSCRE
W
DISTRIBUTION
TUBE
THUMBSCRE
W
REMOVE ICE THICKNESS PROBE
SV1731C
KEYWAY
TAB
SV1741
