Refrigeration System Section 7
7-6 Part No. 80-1100-3
Q1300/Q1600/Q1800 REFRIGERATION TUBING SCHEMATICS

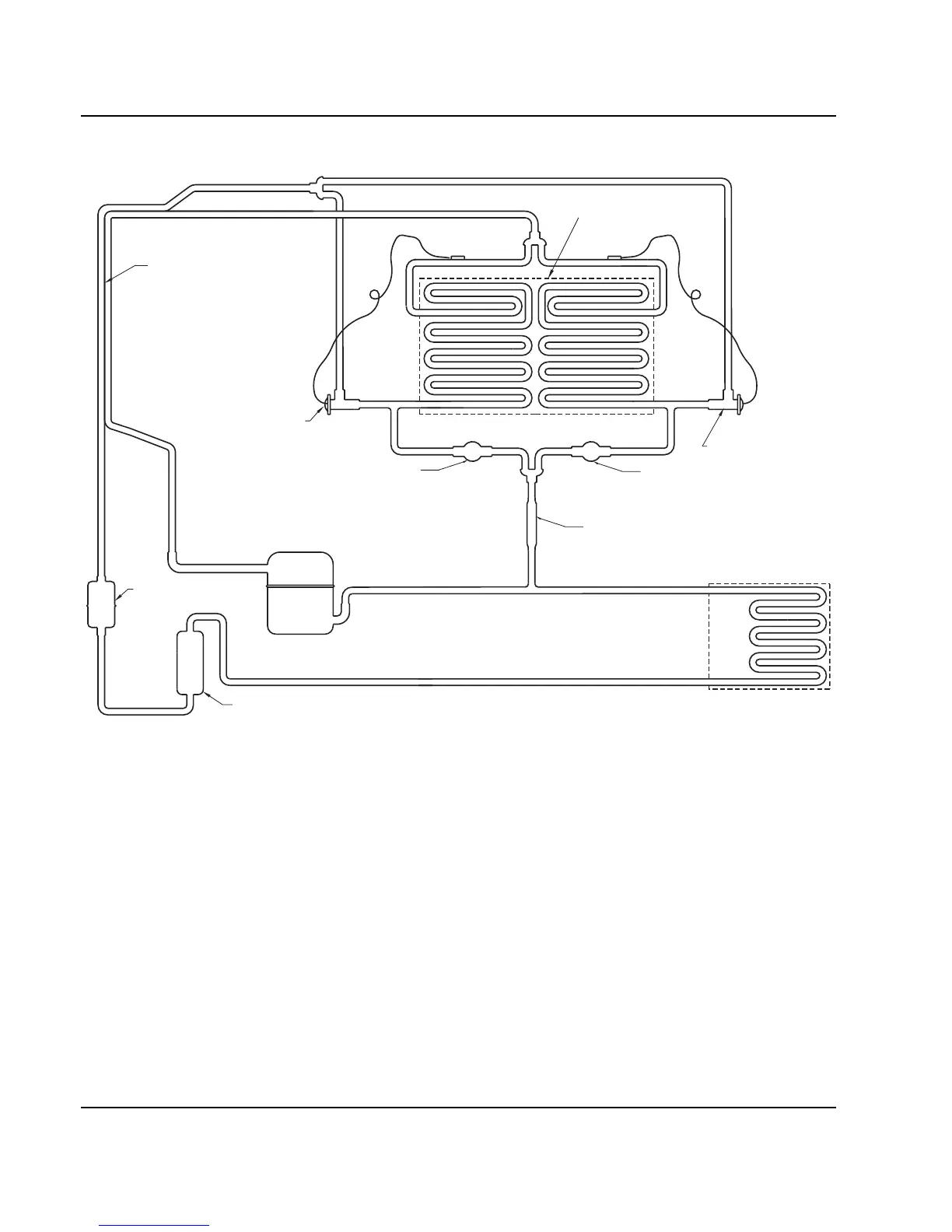

Figure 7-6. Q1300/Q1600/Q1800 Self-Contained Air- or Water-Cooled Models
NOTE: The refrigeration sequence for self-contained
dual expansion valve ice machines is identical to self-
contained single expansion valve ice machines. See
Pages 7-1 and 7-2 for sequence of operation.
x
x
HARVEST
SOLENOID VALVE
AIR OR WATER COOLED
CONDENSER
COMPRESSOR
HEAT
EXCHANGE
RECEIVER
DRIER
STRAINER
EXPANSION VALVE
EXPANSION VALVE
EVAPORATOR
HARVEST
SOLENOID VALVE
SV1512
